Netis EPON OLT EP8204

Name: Netis EPON OLT EP8204
Brand: netis
SKU: 100453073
Availability: InStock

Negotiable MOQ: 1000 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

netis

Model Number:

EP8204

Contact Supplier Request Quote Chat Now

Shenzhen Netcore Industrial Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name netis

Model Number EP8204

netis EPON OLT EP8204

Product Description

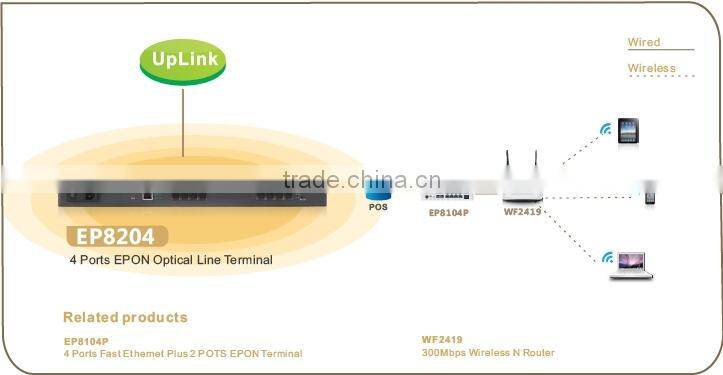

The netis EPON OLT (Optical Line Terminal) EP8204 is an IEEE 802.3ah & CTC 2.1 standards compliant product with 1U chassis-based system. It provides 4 EPON ports in the system to support up to 512 ONUs. Together with netis ONUs, EP8204 completes the end-to-end FTTx with up to 1Gbps of bandwidth to residential and business customers. It is the ideal carrier class optical access platform for FTTx (FTTC, FTTB, FTTH).

Features

Complies with IEEE 802.3ah & CTC 2.1
4* EPON ports, 4* uplink ports
Up to 1.25Gbps for upstream/ downstream speed
Each OLT port supports 64 ONUs
Maximum transfer distance up to 20Km
Networking protocol supported: TCP/IP, ICMP, ARP, OSPF, PIM, etc.
Complete Layer2/Layer3 features, supports Trunk protection/ Q-in-Q
Advanced QoS functions: IP ToS, IEEE 802.1p priority (SP/WRR/SP+WRR)
Intelligent Dynamic Bandwidth Allocation (DBA)
Provides IEEE 802.1Q VLAN
IGMP Snooping optimizes multicast applications
Secure Access via Access Control List (ACL)
Complies with Triple Churning Encryption/AES Encryption
Supports 802.1x supplicant
Supports upstream traffic classify and management through extended OAM
Advanced management methods: OAM remote management, Web-based GUI, Console/ Telnet Command Line Interface, SSH v1/v2, ONU firmware remote upgrade

Specification

Hardware
Interface	4 * EPON port, 4 * 10/100/1000Base-T and SFP combo uplink port 1 * NMI port
LED	RUN, ALM, PWR, SD(1-4 EPON, 1-4 Uplink), REG(1-4 EPON), NMI status
Power Supply	100-240V AC/50-60Hz

Feature
Hardware	Single Mode Fiber Cable SC Fiber Connecter Maximum Splits of ONU: 512 Upstream (ONU->OLT) Wavelength: 1310nm Downstream (OLT->ONU) Wavelength: 1490nm Reach: 20km for PX20/PX20+
Software	Comply with IEEE 802.3-2005 Comply with CTC 2.1 Auto Discovery/Grant Allocation/Ranging/Report Handling Alarm Report Downstream Bandwidth Control by Policy ONU Remote Management Remote Diagnostic Peer to Peer Management Port Lock for Each ONU Performance Statistic Support ONU Firmware Remote Upgrade Comply with Triple Churning Encryption/AES Encryption Support Upstream Traffic Classify and Management through Extended OAM Support IGMP v1/v2 Proxy/Snooping Comply with Upstream Traffic Filter based on MAC DA/SA Support NMI Port Configuration Support Max Frame Length to 1536 Bytes Support Layer2 Features Secure Access via Access Control List (ACL) MAC/LOID Authentication

Others
Certification	FCC, CE
Environment	Operating Temperature: 0℃~40℃(32°F~104°F) Storage Temperature: -40℃~70℃(-40°F~158°F) Operating Humidity: 5%~95% RH non-condensing Storage Humidity: Less than 95% RH non-condensing
Package	1 EP8204 1 Power Cord 2 * Rackmount Brackets and the Fittings
