Small Label Printing Machine/innovative Mechanical Kiosk Product Mechanism

Name: Small Label Printing Machine/innovative Mechanical Kiosk Product Mechanism
Brand: SINMARK
SKU: 100428095
Availability: InStock

US$ 20 - 50 MOQ: 12 Sets

Key Specifications

Products Status:

Stock

Type:

Other, Front Receipt Mechanism

Style:

Black And White

Shanghai Dengyuan Information Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Type Other, Front Receipt Mechanism

Style Black And White

Use Barcode Printer

Interface Type Other

Max Paper Size 82.5mm

Black Print Speed 250mm/s

Brand Name SINMARK

Model Number SID

Place of Origin Shanghai, China

Small label printing machine/innovative mechanical kiosk product Mechanism

Product Description

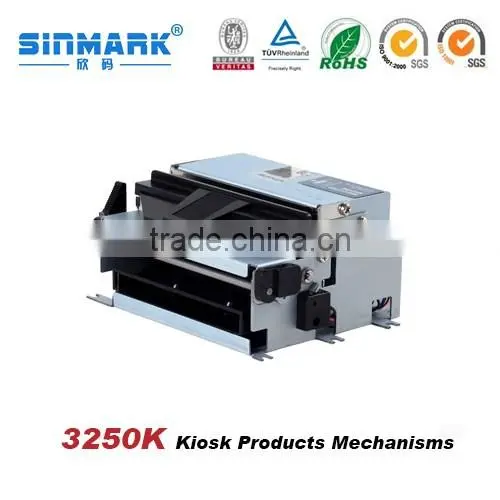

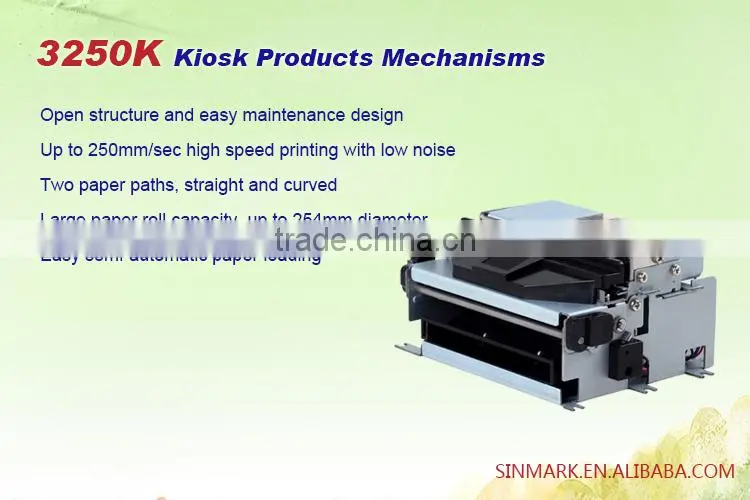

3250K Kiosk Products Mechanisms features:

Parameters

3250K Thermal Mechanisms specification:
Model: SID-3250K
Printing	Print method	Thermal dot line printing
	Dots per line	640dots
	Resolution	8 dots/mm
	Maximum print speed	250mm/sec
	Print width	80mm
	Paper width	58,70,76,80,82.5mm max.
	Paper feed pitch	0.125mm
	Paper path	Curved/Straight
Detection	Head temperature detection	Via a thermistor
	Platen position detection	Via a mechanical switch
	Out-of-paper detection	Via a photo interrupter
	Cutter home position	Via a mechanical switch
	Black mark detection	Via a photo interrupter
Power supply(V)	Logic power supply(VDD)	5V
Power supply(V)	Heater print voltage(VH)	24V
Peak current(A)	Head	4.80A (26.4V / 128 dots)
	Motor	0.50A
	Cutter	1.20A
Auto Cutter	Method	Slide type
	Paper thickness(mm)	0.054 ~ 0.120mm
	Cutting type	Partial cut(leave center point)
	Operating time(sec/cycle)max	0.4
	Cutting pith(mm)min	10mm
	Cut frequency(cut/min)max	60
Service life	Pulse activation	100 million pulses or more
	Abrasion resistance(KM)	150 km or more
	Life(cutter)	1,500,000
Operating temperature range(No condensation)		0°C to 50°C
Storage temperature range (No condensation)		-20°C to 60°C
Dimensions(excluding the lever and convex part)(width x depth x height)		100.1(W)X86.5(D)X57(H)mm
		100.1(W)X86.5(D)X57(H)mm	Mass	Approx. 583g
Print speed changes according to the processing speed of the controller and print pulse width.When printing equal to the print width is performed.Changing rate of average head resistance: 15% or less

* The above parameters are subject to change without prior notice.
