Home > Packaging & Printing > Printing Machinery > Digital Printing Machine > Retail Sticker Label Printing Machine /label Printer Mechanism

Retail Sticker Label Printing Machine /label Printer Mechanism

Retail Sticker Label Printing Machine /label Printer Mechanism photo-1

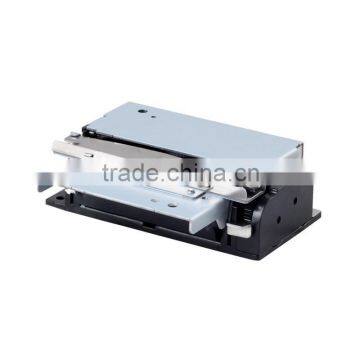

Retail Sticker Label Printing Machine /label Printer Mechanism photo-2

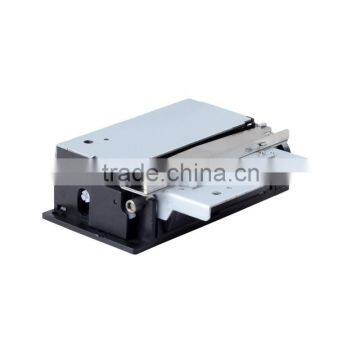

Retail Sticker Label Printing Machine /label Printer Mechanism photo-3

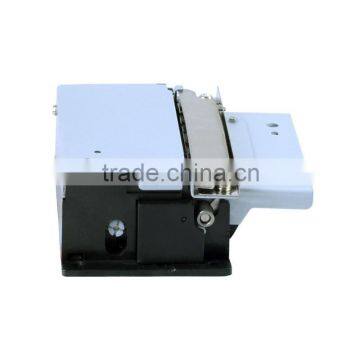

Retail Sticker Label Printing Machine /label Printer Mechanism photo-4

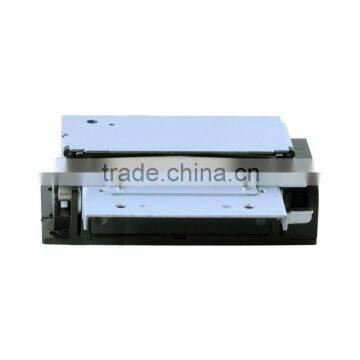

Retail Sticker Label Printing Machine /label Printer Mechanism photo-5
US$ 20 - 50 MOQ: 12 Sets
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Other, Label Printer Mechanism
Style:
Black And White
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Products Status Stock
Type Other, Label Printer Mechanism
Style Black And White
Use Barcode Printer
Interface Type Other
Max Paper Size 56 mm
Black Print Speed 100mm/s
Color Print Speed no
Brand Name SINMARK
Model Number SID
Place of Origin Shanghai, China

Retail sticker label printing machine /label printer mechanism

Retail sticker label printing machine /label printer mechanism



Product Description

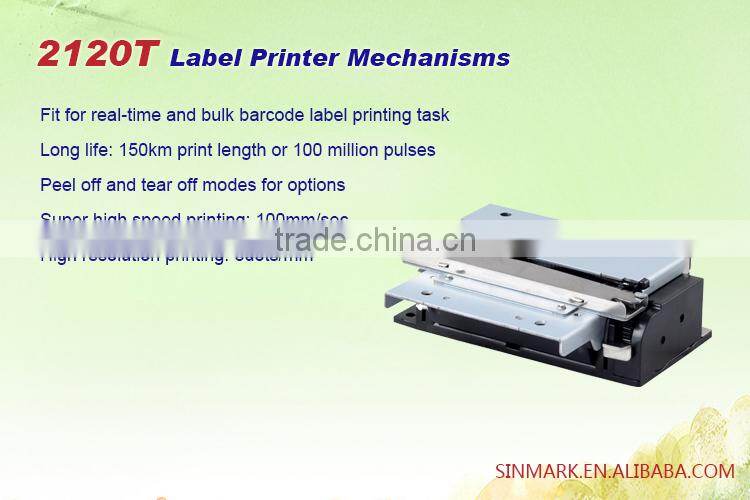

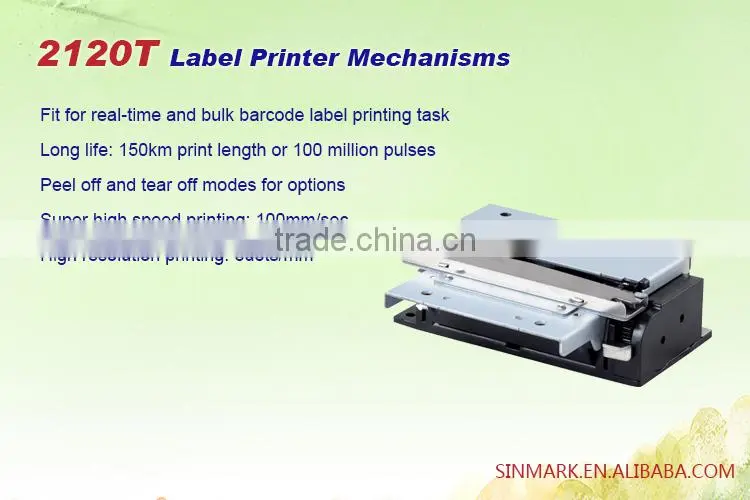

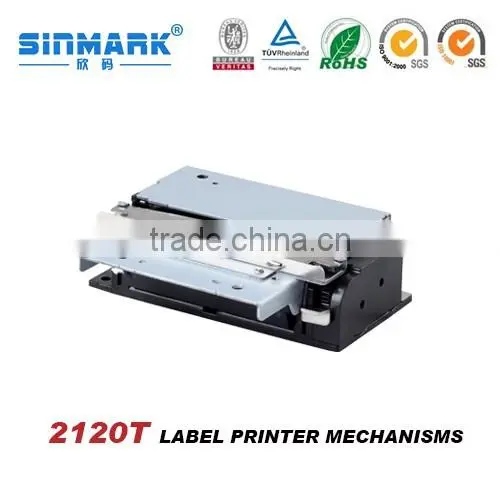

2120T Label Printer Mechanisms features:



  • Direct thermal printing: fit for real-time and bulk barcode label printing task
  • Two paper off modes: peel off and tear off modes for options
  • Super high speed printing: 100mm/sec
  • High resolution printing: 8dots/mm
  • Long life: 150km print length or 100 million pulses
  • Low noise
  • Thermal head cleaning easily
  • RoHS compliant



Parameters
2120T Label Printer Mechanisms specification:
Model: SID-2120T
PrintingPrint methodThermal dot line printing
Dots per line448dots
Resolution8 dots/mm
Maximum print speed100mm/sec
Print width56mm
Paper width25-60 mm max.
Paper feed pitch0.125mm
Paper pathStraight
Paper typeContinuous, black mark, sticker, etc
Paper off modePeel off and tear off
DetectionHead temperature detectionVia a thermistor
Platen position detectionVia a mechanical switch
Out-of-paper detectionVia a photo interrupter
Power supply(V)Logic power supply(VDD)3.3V
Heater print voltage(VH)12V
Peak current(A)Head8.06A (13.2V / 192dots)
Motor0.50A
Service lifePulse activation100 million pulses or more
Abrasion resistance(KM)150 km or more
Operating temperature range(No condensation)0°C to 50°C
Storage temperature range (No condensation)-20°C to 60°C
Dimensions(excluding the lever and convex part)(width x depth x height)92.2(W)X59.5 (D)X68.6(H)mm
MassApprox. 221g
Print speed changes according to the processing speed of the controller and print pulse width.When printing equal to the print width is performed.Changing rate of average head resistance: 15% or less

* The above parameters are subject to change without prior notice
