Rotating mechanic working models Auto Cutter Mechanisms
USD $20 - $50
/ Set
12 Sets(Min.Order)
- 2000 Set / Sets per Month
- Shanghai
- T/T
You May Like
- best wishes couple wedding supplies superior new 2015 wedding products
- Australian wedding shop decoration products supplies
- best wedding party events rental shop favorable price
- best wishes wedding gift supplies USA Australian Style decorations
- classical USA Australia photo booth props party wedding events decorations 2015
- European elegant wedding party supplies
Product Details
Products Status: | Stock | Type: | Other, Auto Cutter Mechanisms | Style: | Black And White |
Use: | Barcode Printer | Interface Type: | Other | Max Paper Size: | 83mm |
Black Print Speed: | 300mm/s | Color Print Speed: | no | Brand Name: | SINMARK |
Model Number: | SID | Place of Origin: | Shanghai, China |
Product Description
Rotating mechanic working models Auto Cutter Mechanisms
Product Description

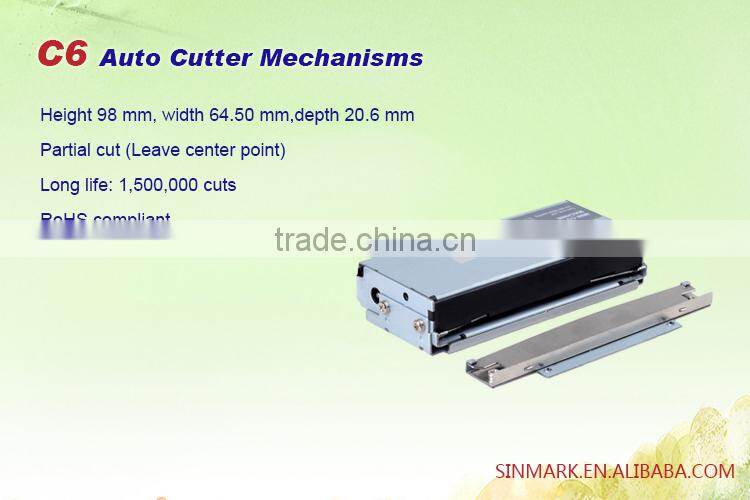

C6 Auto Cutter Mechanisms features:
- Ultra low profile: Height 98 mm, width 64.50 mm,depth 20.6 mm
- Cutting type: Partial cut (Leave center point)
- Auto Cutter: Long life: 1,500,000 cuts
- RoHS compliant
Parameters
C6 Auto Cutter Mechanisms specification: | |||||
Model: C6 Auto-cutter | |||||
Thermal Printer | 3250K | 3250F | 3250HII | 3250C | |
Cutting | Method | Slide type | |||
Paper width(mm) | 83 | ||||
Paper thickness(mm) | 0.054~0.120 | ||||
Cutting type | Partial cut (Leave center point) | ||||
Operating time (sec/cycle)max | 0.4 | ||||
Cutting pitch(mm) min | 10 | ||||
Cut frequency (cut/min) max | 60 | ||||
Operating Voltage(V) | Motor | 24V DC | |||
Detector(control switch) | 5V | ||||
Starting Current (A) | 1.20 Max | ||||
Life(cut) | 1,500,000 | ||||
Dimensions( WxHxD mm) | 98.00(W)x64.50(H)x20.6(D)mm | ||||
Mass(g) | Approx. 203g | ||||
Print speed changes according to the processing speed of the controller and print pulse width.When printing equal to the print width is performed.Changing rate of average head resistance: 15% or less | |||||
* The above parameters are subject to change without prior notice |
