Product: 1 Channel Video fiber optical converter
Highlight
The 1Channel Video Fiber Optical Transceiver can transmit one channel digital video,one channel high-fidelity audio,one channel asynchronous data (RS232/422/485) and one port 10/100M Ethernet data over one fiber efficiently
OVERVIEW
The 1ChannelVideo Fiber Optical Transceiver can simultaneously transmit one channels of 8-bit digitally encoded broadcast quality video / return or bidirectional data / unidirectional or bidirectional audio / Ethernet / Telephone / Dry contact over one multimode or single-mode optical fiber. These multiplexers are typically used in applications where the cameras have P/T/Z capabilities. Plug and Play design ensures the ease of installation and operation. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment
Optical Transceiver
| Video bandwidth | 8 MHz | |
| Automatic compatible video system |
PAL,NTSC,SECAM
|
|
| Video input / output impedance | 75 ohm(unbalance) | |
| Video signal-to-noise ratio | more than 67dB | |
| Differential gain | (10%-90%APL) DG <1% ( typical value) | |
| Differential phase | (10%-90%APL) DP <0.7° ( typical value) | |
| Video connector | BNC | |
| Fiber-optic Specification |
F/O connector: FC/ST/SC
TX :Power:-15 ~ -8dBm Sensitivity :≤-35dBm
RX:Power:-15 ~ -8dBm Sensitivity :≤-35dBm
Transmission Distance :20KM (single mode) Operating Wavelength: TX1310/RX1550nm(Transmitter);TX1550/RX1310nm(Receiver)
|
|
| Data |
Connector: Terminal Blocks
Encoded type : RS485 / RS422 / RS232 / Manchester
Data rate : 0 - 400Kbps
BER: less than 10-9
|
|
| Audio |
Connector: Terminal Blocks
Audio input / output impedance :600Ω(Balance/ unbalance)
Audio input / output voltage :2Vp-p ( typical value)
Audio input / output level :0dBm ( typical value)
Video bandwidth:10HZ~12KHZ
Audio digital encoded bandwidth :24bit
Audio signal-to-noise ratio: S/N≥95dB (weighted)
|
|
| Telephone |
Connector: RJ11
Bandwidth :8KHZ
Features:Support call-showing function ;support H-F
Operating mode : Point to point hotline mode / FXS-FXO
|
|
| Ethernet |
Connector: RJ45
Support mode : Half duplex or Full duplex
Standards:IEEE802.3
Data rate : 10M / 100Mbps
Bandwidth: 25M
|
|
| Dimensions | 11.1(L)x10.7(W)x2.8(H) cm |
| Operating Voltage | DC5V (we will offer external power supply from AC96-240V to DC5V for each unit ) |
| Operating Temperature | -40 to +85 degree |
| Storing Temperature | -55 to +85 degree |
| Humidity | 0 to 95% non-condensing |
| MTBF | more than 105 hours |
| Warranty | 3 years |

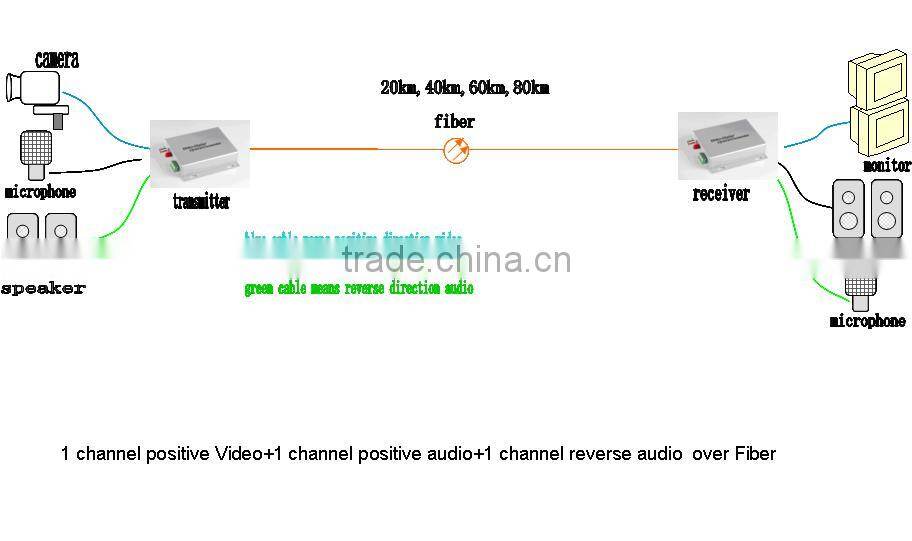

Application :
FAQ
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
5.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging&Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
Certifications

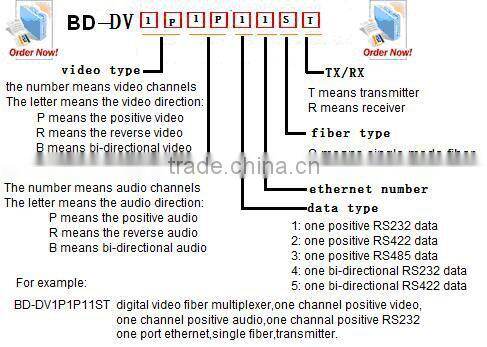

| BD-DV1P0000ST | 1channel video over fiber multiplexer, transmitter,single mode,20Km,dual fiber or WDM for option,AC220V |
| BD-DV1P0000SR | 1channel video over fiber multiplexer, receiver,single mode,20Km,dual fiber or WDM for option,AC220V |
| BD-DV1P1P00ST | 1channel video and 1channel audio over fiber multiplexer,transmitter,single mode,20Km,dual fiber or WDM for option,AC220V |
| BD-DV1P1P00SR | 1channel video and 1channel audio over fiber multiplexer,receiver,single mode,20Km,dual fiber or WDM for option,AC220V |
| BD-DV1P1P31ST | 1channel video+1channel positiver audio+1channel reverse RS485+1port ethernet over fiber multiplexer,transmitter,single mode,20Km,dual fiber or WDM for option,AC220V |
| BD-DV1P1P31SR | 1channel video+1channel positiver audio+1channel reverse RS485+1port ethernet over fiber multiplexer,receiver,single mode,20Km,dual fiber or WDM for option,AC220V |
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.
Your any questions will be responsed within 12hours!
