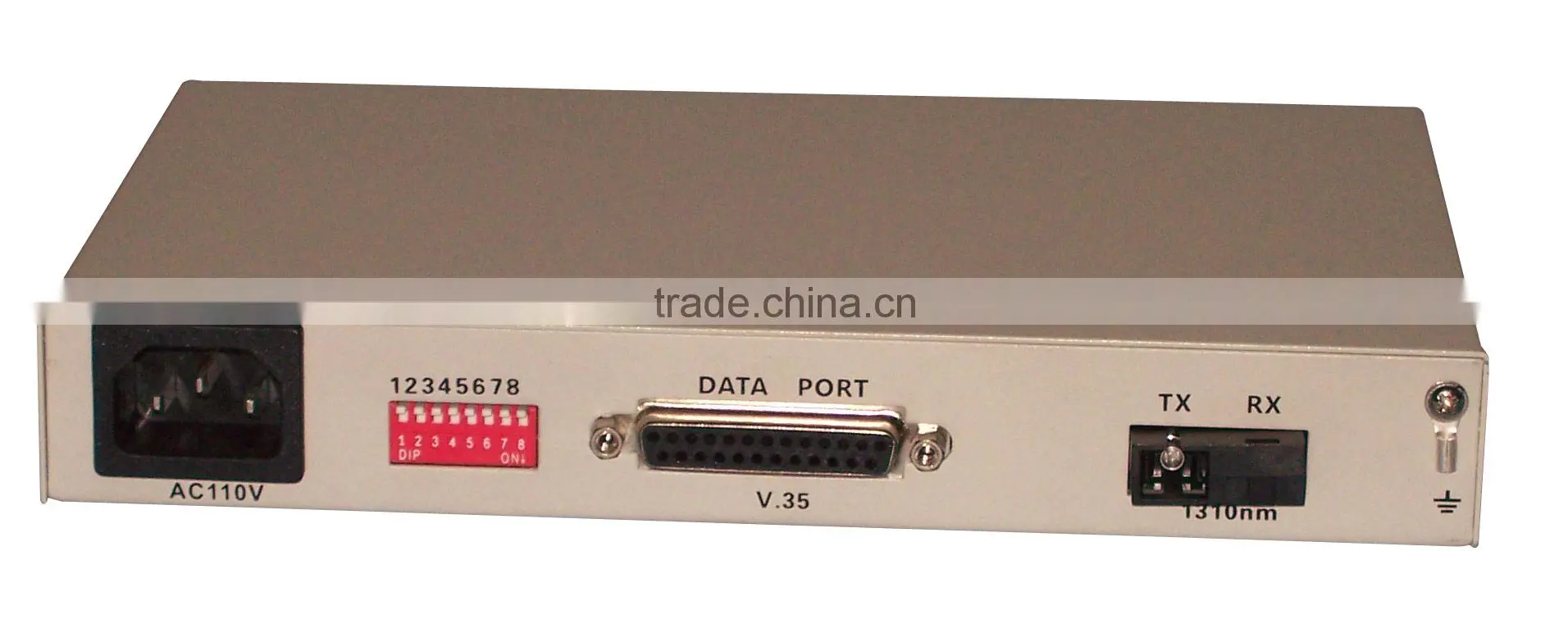

Product: High Quality V.35 fiber optic modem
Fiber Modem Overview:
The High Quality ber Optic Modem extends V.35 interface service over fiber. A pair of V.35 Fiber Modems provides n*64K(n=1-32) V.35 network "extension" between remote and locations . The High Quality V.35 fiber optic modems is designed to transmit/receive V.35 data over one string of fiber. The High Quality V.35 Fiber Optic Modems allows transmission over Single-mode fiber with distances up to 120km. LED status indicators monitor the fiber and V.35 links. The Model BD-OP-V35 is available with either an AC or DC power supply and is supported by a wide range of applications and power supply environments.
Fiber Modem Feature:
1.Have two row of LED, one indicates local status, the other indicates remote status
2.The V.35 Rate is N*64K, N=1-32.
3.Have two clock way: V.35 master clock and V.35 slave clock
4.Have three Loop-Back Mode: Fiber interface Loop-Back (ANA), V.35 interface Loop-Back(DIG), command the remote modem V.35 interface Loop-back (REM)
5.Remote adjustment of velocity for the remote device will be available when the local setting into the master clock and the remote set into slave clock
6.E1 fiber modem matching V.35 fiber by pair, one G.703/V35 interface conversion can be save out.
7.It has PBRS test function and could be used as a 2M error code device.
8.V.35 interface support hot-plug and can be connected with other DCE or DTE device.
Fiber Modem Parameter
| V.35 Connector | |
| Interface Rate | N×64Kbps(N=1~32) |
| electric Characteristics | According ITU-T V.35 |
| Connector | DB25 |
| connect Mode | DCE |
| Fiber Connector | |
| Fiber Connector | SC/FC |
| Optical Wavelenth | FP1310 nm /DFB1550nm+/-50/40nm |
| Sending Consumption | -9dBm/-5dBm |
| Receiving and Dispatching Module | >-6dBm |
| Optical Receiver Receiving Sensitivity | <-36 (BER<10 -10): |
| Dynamic Range Receiving | >-30dB |
| Optical Code | NRZ |
| Single Mode | 10/125 µm |
| Transmitting Range | SM 20Km, SM 40Km, SM 60 Km, SM 120Km |
| Dimension | |
| 210mm(W)× 140mm(L)× 30mm(H) | |
| Power Supplier | |
| Two powers: DC-48V, AC220V | |
| Voltage ranges:DC power( -36V~-72V ),AC power(175V~250V) | |
| power consume:<5W | |
High Quality V.35 Fiber Optic Modem

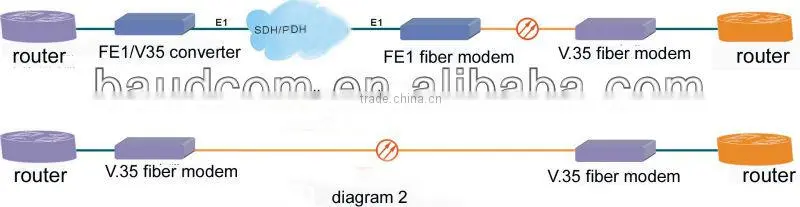

Fiber Modem Application diagram
Certificates
Please note
Working environment
