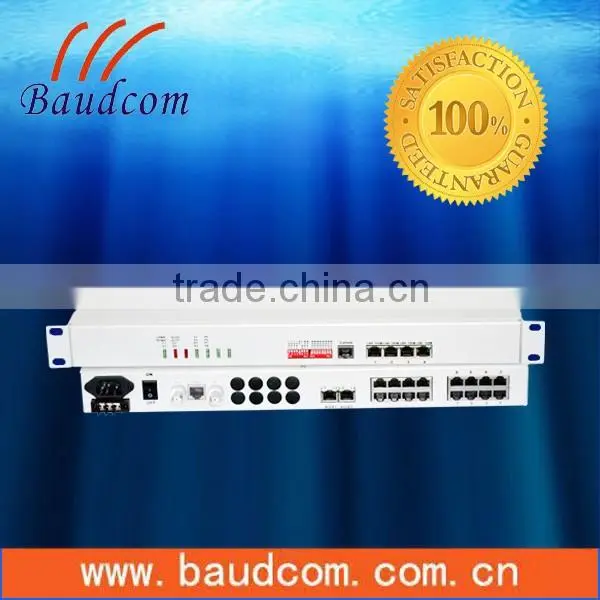

4 Ethernet Plus 8 POTS Voice Multiplexer SNMP Managed

4 Ethernet Plus 8 POTS Voice Multiplexer SNMP Managed thumbnail-1
4 Ethernet Plus 8 POTS Voice Multiplexer SNMP Managed photo-1
US$ 148 - 237 MOQ: 2 Units
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
BAUDCOM voice multiplexer
Model Number:
BD-OP-MUX08
Contact Supplier Request Quote Chat Now
Shanghai Baudcom Communication Device Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
voice multiplexer will ship from shanghai ningbo or any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name BAUDCOM voice multiplexer
Model Number BD-OP-MUX08

Product name: 4 ethernet plus 8 POTS voice multiplexer

Overview

    4 ethernet plus 8 POTS voice multiplexer  is a kind of point-to-point fiber transmission device. BAUDCOM designed 8POTS (FXO/FXS), 1~4channel G.703 E1 and 1~4 channel 100M Ethernet,1~4 channelRS232 transmit over one fiber, and it could match different customer requirement

Technical Specifications

  4 ethernet plus 8 POTS voice multiplexer  PRODUCT CHARACTERISTIC



²  provides 1~4 channel E1/ G.703 for option;

²  provides 1~4 channel 100M (liner) Ethernet ports for option;

²  provides 1~8channel POTS( FXO/FXS) vocie multiplexer,also can offer 2/4 wire E&M for option;

²  provides 1~4 channel RS232, rate supports 300-15200 bps for option;

²  Ethernet port 10/100M, full/half duplex auto-adaptable and supports VLAN;

²  Ethernet port supports AUTO-MDIX (twisted cable and straight cable auto-adaptable);

²  1~8 channel voice multiplex connection, supports calling indication;

²  Configuration: point to point;

²  Voice port supports O port and S port, O port connects switch and S port connects user’s phone;

²  Optical interface supports SC/FC interface and supports single fiber interface

FXO voice multiplex port

Alarm voltage

75V

Alarm frequency

25HZ

2 line input impedance

600Ω (hanging off)

Wastage

40db

FXS voice multiplexer port

Alarm detecting voltage

    35V

Alarm detecting frequency

17HZ-60HZ

2 line input impedance

600Ω (hanging off)

Wastage

40db

10/100BaseT Interface

Number of Interfaces

1~4 port

Interface Types

10/100BaseT

Standards Compliance

IEEE 802.3

Protocol

User Programmable HDLC

Connectors

B RJ45 (10/100 BaseT Electrical)





E1 Interface

4 port

E1 (2.048Mbps ± 50 bps)

HDB3

ITU-T G.703

G.823

75hom/120 Ohms

BNC(75ohm) or RJ45(120ohm)

Optical Interface

SC/FC/ST

1310nm/1550nm for single-mode optic interface for option

850nm/1310nm for multi-mode optic interface for option

-9dBm (regular order)

>-36dBm(regular order)

<-36 (BER<10):

NRZ

MM 2Km/5Km,SM 20Km/40Km/60 Km/120Km for option





 8 POTS over  fiber multiplexer Mechanical Specifications

Rack Mounting

Standard 19-inch DIN rack 30 POTS

Dimension

19inch 1 U: 433mm(L)*138mm(D)*44mm(H)





voice Management for option

Web managed built-in or SNMP central management via chassis



Power Supply

Input AC/DC voltage

-48V DC ( nominal ) / AC also available

Range of input

-36V to -72V DC /90V~260VAC

Temperature

0 centi degree to 55 centi degree

Humidity

95% RH (non-condensing)

Cooling

Convection Cooling



 8 POTS over  fiber multiplexer Order information

BD-OP-MUX08

8POTS(FXO/FXS) voice multiplex

BD-OP-MUX08/4E1

4E1+8POTS(FXO/FXS) voice multiplex

BD-OP-MUX08/4E1/4ETH/4RS232

8POTS(FXO/FXS) ,4E1 ,4Ethernet ,4RS232 over fiber voice multiplex

BD-OP-MUX08/SNMP

8POTS(FXO/FXS) voice multiplex,web managed or SNMP for option

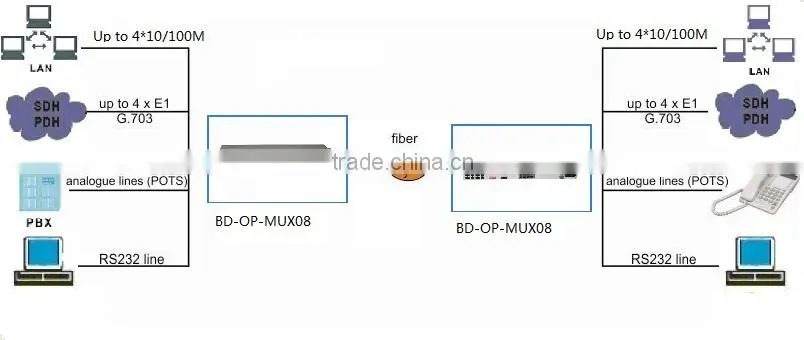

 8 POTS over  fiber multiplexer Application

4 ethernet plus 8 POTS voice multiplexer SNMP managed



4 ethernet plus 8 POTS voice multiplexer SNMP managed



4 ethernet plus 8 POTS voice multiplexer SNMP managed
