Product:V35 G.703 Standard E1 Interface Converter
Our advantage
1.Warranty is 3 years with good quality
2. Min MOQ,only one is ok
3.more 16 years factory
4.OEM/ODM accept,CE passed
5.new design and fast delivery
The V35 G.703 Standard E1 Interface Converter provides physical level conversion between ITU-T G.703 standard E1 interface and standard V.35 interface, it can receive synchronous 2.048 Mbps data from E1channal and transmit the data to router, DDN, multiplexer or other equipment, thus providing secureand seamless communicating connection between equipments with different interfaces in the network. It is widely applied in the interface between WAN and LAN and in video monitoring. The pattern of data interface is DCE, Framed E1 V35 Converter can be connected with DTE or DCE equipment.
- Monitoring remote device from local device (having 2 row indicator LED, upper indicates local, lower indicates remote)
- E1 port for interface Converter can randomly choose time slots from 31 slots with hardware.
- Provides many kinds of clock ways: E1 master clock, and E1 line clock, V.35 master clock, V.35 external clock.
- Having 3 loop back functions: E1 local loop, V.35 local loop, and let remote V.35 loop.
- Having pseudo random code test function, can used as a 2M Protocol Analyzer
- Support 120Ω/balance and 75Ω/unbalance impedance.
- V.35 port supports hot plug, can connect with DTE or DCE.
Technical Specifications:
E1 Interface |
Interface Standard: | Conforms to G.703 standard | |
| Interface Rate: | 2.048Mbit/s 50ppm | ||
| Vibration characteristic: | Satisfies G.742 and G.823 standard | ||
| Transmission capacity: | 1*E1 | ||
| Clock Type: | Internal-clock, route clock | ||
| Conncetor: | BNC (75 ohm), RJ45 (120 ohm) | ||
| Interface Impedance: | 75ohm (unbalanced),120ohm (balanced) | ||
|
V.35 Interface |
Rate | N x 64Kbps, N= 1-32 | |
| Interface | Compatible with V.35 standard | ||
| Connector | M34 female | ||
| Connect mode | DCE | ||
| Clock | G.703 recovery clock, internal clock, V.35 external clock | ||
|
Working Condition |
Input Voltage | AC220V; DC-48V | |
| Power Consumption | <=5W | ||
| Operating temperature | 0C - 50C | ||
| Storing Temperature | -40C ~ +70C | ||
| Relative humidity | 95% | ||

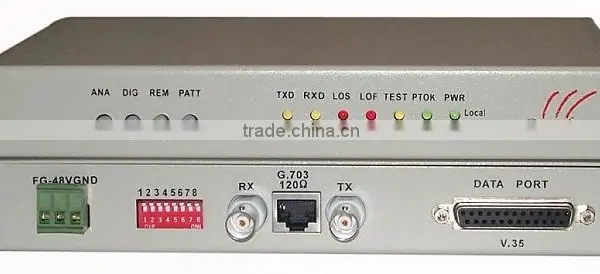

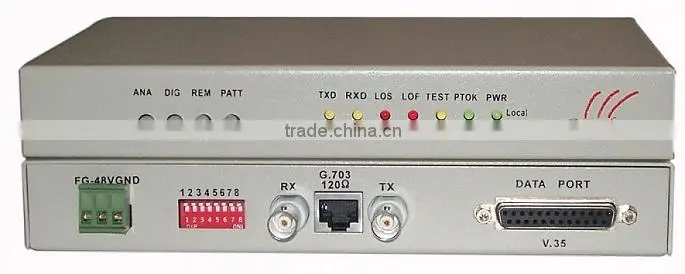

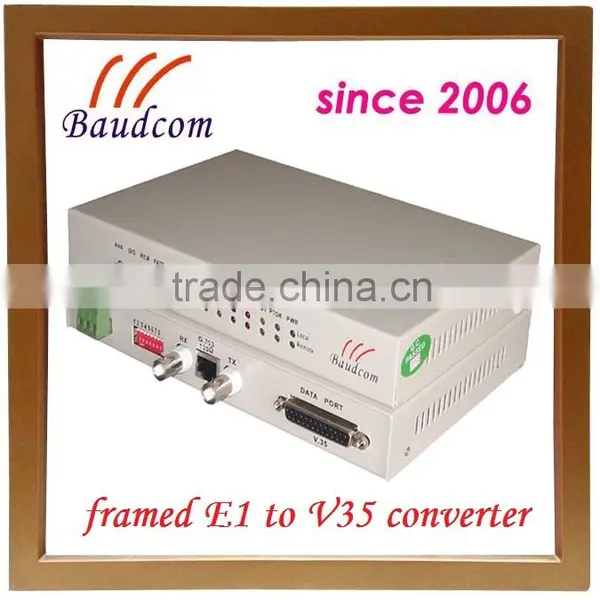

Framed E1 G.703 to V.35 Modem Picture

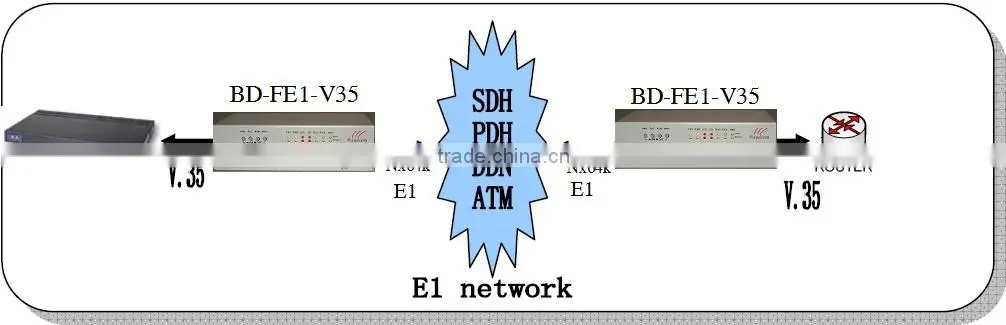

Framed E1 G.703 to V.35 Modem Application Diagram:
Wholesale and retail
- OEM manufacture
- New product.
- MOQ1pcs for our stock products.
- Delivery: within3days for small order.
Note
- 3 levels of lightning protection, antiseptic, dustproof, electrostatic prevention;
- OEM, flexible custom made service
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
5.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging & Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
Certifications
Factory production
Product testing
After-Sales Service
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.
Your any questions will be responsed within 12hours!
pls feel free contact us anytime, it's our honor to service for you. we are together.
