Product: Ethernet to 16 E1 Converter with low power consumption
Our advantage
1.Warranty is 3 years with good quality
2. Min MOQ,only one is ok
3.more 16 years factory
4.OEM/ODM accept,CE passed
5.new design and fast delivery
The E1 to Ethernet Converter used back multiplexing technology, transfer 10M/100M Ethernet data by using multi E1 channels. Realize convert between 1 to 16 E1 channels and Ethernet interface. It can transmit signal of E1 channel to RJ45 interface point to point, realize the connection of E1 channel and Ethernet. It different from normal bridge , supporting 1 to 16E1 channels customized configuration, auto detecting the number of E1 channels and use the available E1, allow some limiting transfer delay between different E1 channels. Single line speed is 2M, 16 channels can up to 32M. it can connect with Ethernet switch or hub when in 10/100Mbps full/half duplex mode, make use of mass E1 resource in telecommunication networks to expend the transfer distance and application field of Ethernet, is a suitable solution for broadband switch in of Ethernet. It can used in fields such as connecting LANs, connecting end offices, VOD, remote monitor, E1 interface of switches, etc.

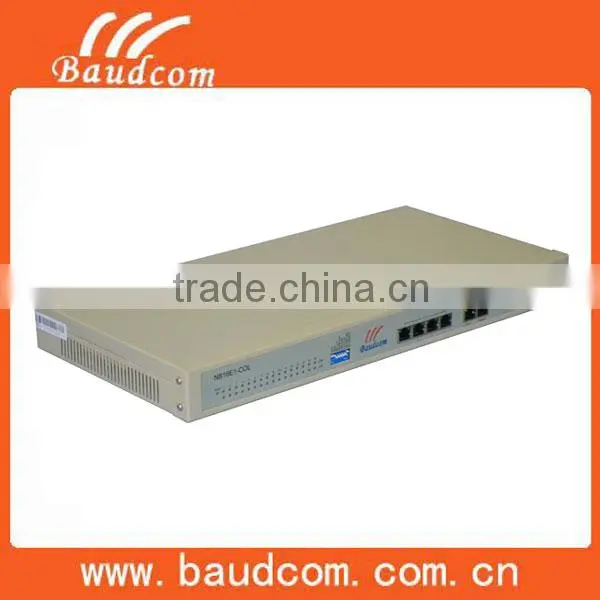

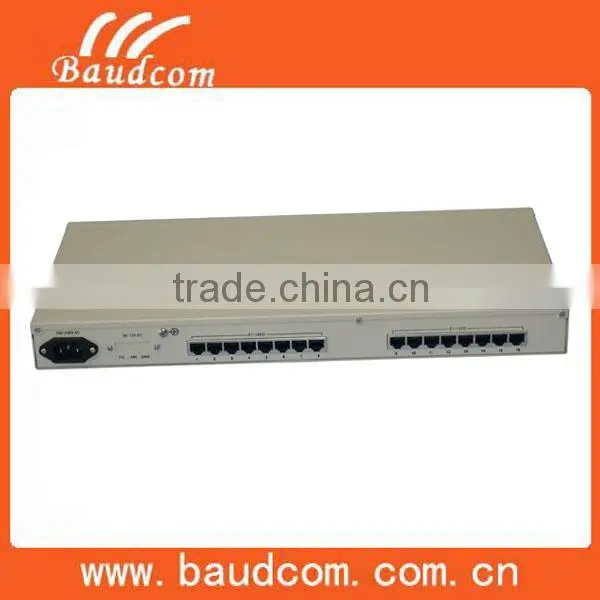

G 703 to Ethernet Converter picture:
Realize transparent transfer Ethernet data in 1 to 16 E1 channels
10M/100M Ethernet, full/half duplex self adapt, support VLAN.
Ethernet support AUTO-MDIX( cross over and straight through self adapt)
Having 2 loop back functions: E1 local loop, E1 external loop.
Support Dynamic Ethernet MAC address(4096), having local address filter function.
E1 interface compatible withITU-T G.703,G.704,and G.823. signaling slot not supported.
E1 interface having internal clock resume circuit and HDB3 codec circuit.
support E1 channel hot plug, and auto detect available E1 channels not pause the transmission.
supporting 1 to 16 E1 channels customized configuration, auto detect the number of E1 channels and select the available E1 at reset.
E1 Support 75Ω/unbalance impedance and 120Ω/balance
support reset remote system from local system.
having Ethernet monitor auto reset function.
| E1 Interface | Line Rate | 2.048Mbps±50ppm |
| Line Code | HDB3 | |
| Interface Standard | ITU-T G.703 | |
| E1 Impedance | 75Ω(unbalance) | |
| Connections | Dual coax BNC | |
| Jitter Tolerance | Finer than G.742 and G.823 | |
| 10/100Base-T Interface | Rate | 10/100M, full/duplex auto-negotiation |
| Protocol | Support IEEE 802.3,IEEE 802.1Q (VLAN) | |
| MAC Address Entiries | 4096 Entries | |
| Total Memory Sizes | 64MBits SDRAM | |
| Physical Interface | RJ45, support AUTO-MDIX | |
| Power Supply | working voltage range wide, good, anti-disturb and Isolation, work stable |
|
| DC-48V | Range DC-36V~DC-72C | |
| AC220V | Vange AC165V~AC240V | |
| Enviornment Condition | Operating temperature | 0C~+50 C |
| Storage Temperature | -20 C~+70 C | |
| Relative Humidity | 95% (uncondensed) | |
E1 to Ethernet Converter Application Diagram:
FAQ
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
5.What's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging&Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
Certifications
| BD-16E1-ETH/75 | 16 E1 to ethernet converter,4*10/100M ethernet over 16E1,75ohm(BNC connector),power AC220V or DC48V |
| BD-16E1-ETH/120 | 16 E1 to ethernet converter,4*10/100M ethernet over 16E1,120ohm(RJ45 connector),power AC220V or DC48V |
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.
Your any questions will be responsed within 12hours!
pls feel free contact us anytime, it's our honor to service for you. we are together.
