Product: High quality 2E1 over 2 Ethernet converter
Our advantage:Warranty is 3 years with good quality/Low MOQ:1Piece/Low price/OEM or ODM accepted.
The Ethernet Convergency Converter is multiservice node ring network system equipment is the highly integrated access devices with the bandwidth share function. The 2E1 device can realize two RS-232/485 and 2 Ethernet over 2 channel E1 aggregation transmission. The Ethernet interfaces in different nodes can consist a shared Ethernet switch.
The Ethernet Convergency Converter can be used as Point to point application or used with central multi-service device as chain network or ring network. The Ethernet Convergency Converter can meet customers’ kinds application by flexible, economical, maintenance application.It can be widely used in a variety of environments capture the telecommunications, electricity, water, finance, transportation, mining, public security and other data transmission services.
Charactoristic:
Based on self-copyright IC.
The device provide two channel E1 interface, two Ethernet and two RS232/485.
Ethernet port 10/100M half/full duplex auto-negociation.
RJ45 interface supports AUTO-MDIX.
The device can be used as point to point or ring network or chain network.
BNC 75-ohm dual coax and RJ45 120-ohm twisted-pair G.703 connections provided, and support 75ohm/120ohm adapt ;
Support Web management.
Power can support AC or DC or double power.
Technical Specifications:
| E1 Interface | Line Rate | 2.048Mbps±50ppm |
| Line Code | HDB3 | |
| Interface Standard | ITU-T G.703 | |
| E1 Impedance | 75Ω(unbalance) and 120Ω(balance | |
| Connections | Dual coax BNC and 120-ohm twisted-pair (RJ45) | |
| Jitter Tolerance | Finer than G.742 and G.823 | |
| Ethernet 10/100 Base-T Interface | Rate | 10/100M, full/duplex auto-negotiation |
| Protocol | Support IEEE 802.3 | |
| MAC Address Entries | 4096 Entiries | |
| Total Memory Sizes | 64MBits SDRAM | |
| Physical Interface | RJ45 | |
| Support AUTO-MDIX | ||
| Power Supply | Working voltage range wide, good, anti-disturb and Isolation, work stable |
|
| Option I | DC-48V,range DC-36V~DC-72C | |
| Option II | AC220V,range AC165V~AC240V | |
| Power Consumption | <=3 Watts | |
| Environment Condition | Operating Temperature | 0C~+50 C |
| Storage Temperature | -20 C~+70 C | |
| Relative Temperature | 95% (uncondensed) | |
| Dimension | 210mm(L) 140mm(W) 30mm(H) |
|

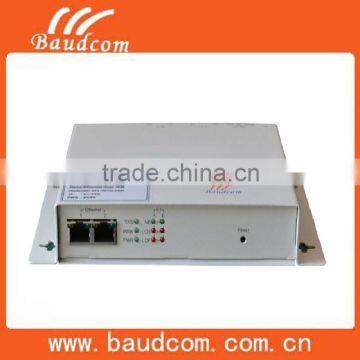

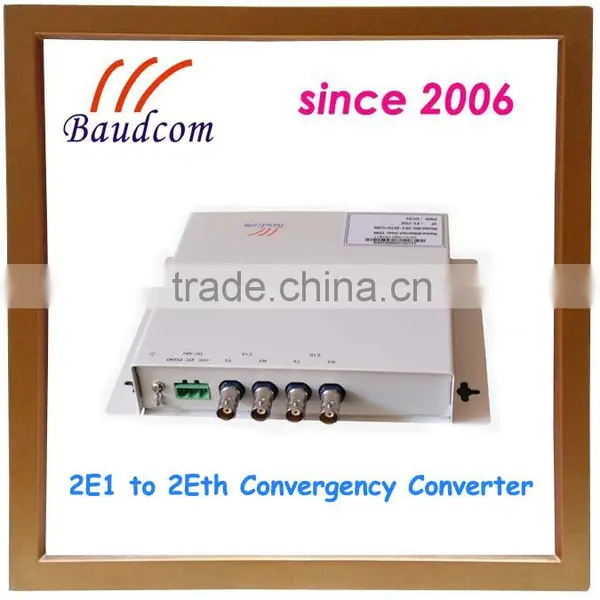

Convergency Converter Picture:
Ethernet Convergency Converter Application Diagram:
FAQ
1.How can i get a Ethernet converter sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping for Ethernet converter ?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging & Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
Certifications
Factory production
Product testing
After-Sales Service
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.
Your any questions will be responsed within 12hours!
