Ethernet Over T1 Media Converter

Name: Ethernet Over T1 Media Converter
Brand: Baudcom
SKU: 100393753
Availability: InStock

Ethernet Over T1 Media Converter thumbnail-1

Ethernet Over T1 Media Converter photo-1

US$ 250 - 350 MOQ: 1 Unit

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

Baudcom

Model Number:

BD-T1-ETH

Contact Supplier Request Quote Chat Now

Shanghai Baudcom Communication Device Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

media Converter will be shipped from Shanghai ningbo any port in China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name Baudcom

Model Number BD-T1-ETH

Product: Ethernet over T1 Converter

Our advantage:Warranty is 3 years with good quality/Low MOQ:1Piece/Low price/OEM or ODM accepted.

Overview

The Ethernet over T1 Converter is a single port T1 with Ethernet Bridging that provides high-speed LAN-to-WAN connectivity.

The Ethernet over T1 Converter is an Ethernet extension device utilizing TDM telecom infrastructure (of T1, DS3, SDH or microwave links carrying T1s ). It converts the Ethernet data into T1 frame format for transmission over the existing TDM (T1) links and then re-converts the T1 back into Ethernet data the far-end terminal, to BRIDGE two Ethernet LANs over the existing T1-based telecom network. The device can effectively utilize the existing TDM network to transport Ethernet data with low investment.

The Ethernet over T1 Converter support two protocol E1 and T1,can used as ethernet over T1 converter or ethernet over E1 converter.It is collocated with E1/HDB3 or T1/B8ZS as line interface, E1 can be either framed N*64Kbps (N=1-31) or unframed 2048Kbps, which are also known as channelization and unchannelization. Under the framed mode, it supports options of CAS/CCS (30 & 31 time slot), and CRC4 auto-adapt. T1 connects remote LAN through fully transparent unframed 1.544Mbps bandwidth. Transmission clock can be recovered from receiving signal G.703 lines and also can work in internal clock mode.

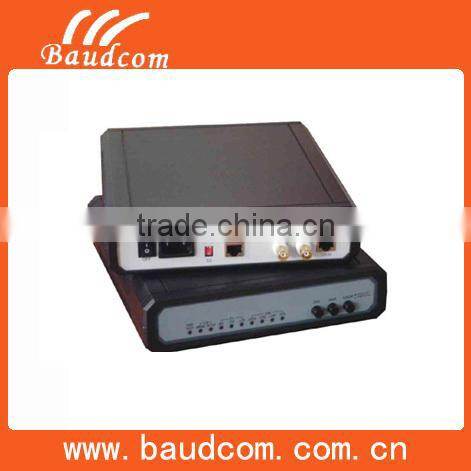

Ethernet over T1 Converter picture:

Feature

Based on self-copyright IC. Ethernet port 10/100M half/full duplex self adaptable, supporting VLAN. conforms to the requirements of G.703, G.704&G.706 of ITU. E1 can be either framed N*64Kbps (N=1-31) or unframed 2048Kbps conforms to IEEE 802.3/IEEE 802.3u and has VLAN 802.1Q function. Support E1 line or T1 line; E1 can support BNC 75-ohm and RJ45 120-ohm; Support local and remote loops test, user can test circuitry and diagnose failure conveniently to achieve port-to-port integrity test.

Specification

E1 Interface
Line Rate	N*64Kbps(N=1--31); 2048Kbps
Line Code	HDB3
Interface Standard	ITU-T G.703
E1 Impedance	75Ω(unbalance) and 120Ω(balance)
Connections	Dual coax BNC and 120-ohm twisted-pair (RJ45)
Jitter Tolerance	Finer than G.742 and G.823
T1 Interface
Line Rate	N*64Kbps(N=1--31)
Line Code	B8ZS
Interface Standard	ANSI T1.403-1999,ANSI T1.408,AT&T TR 62411
T1 Impedance	Balance 100 ohm, RJ45
Format of line frame	Unframed, fully transparent
Clock	Internal clock, slave clock(G.703 clock)
Ethernet Interface(10/100Base-T)
Rate	10/100M, full/duplex auto-negotiation
Ethernet over T1 Converter Protocol	Support IEEE 802.3,IEEE 802.1Q(VLAN)
MAC Address Entiries	4096 Entries
Total Memory Sizes	64MBits SDRAM
Physical Interface	RJ45, support AUTO-MDIX
Power Supply
Working voltage range wide, goodanti-disturb and Isolation, work stable
Option I – DC-48V,range DC-36V~DC-72C
Option II – AC220V,range AC165V~AC240V
Power Consumption	<=3 Watts
Environment Condition
Operating temperature	0C~+50 C
Storage temperature	-20 C~+70 C
Relative temperature	95% (uncondensed)
Dimension
225mm(L) 145mm(W) 40mm(H)

Application

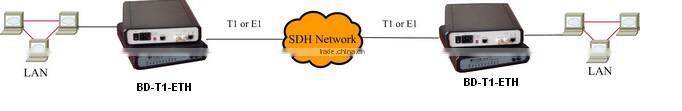

Ethernet over T1 Converter Application Diagram:

FAQ

1.How can i get a sample ?

You need place sample order to us.We will arrange the sample production for you.

2.Could you do design for us?

Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.

3.How can we place order?

After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.

If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.

4.How about the shipping?

For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.

6.what's your products' advantages ?

A. good quality and competetive prices.

B. Strictly quality control when producing.

C. Professional team work, from design, development, producing,assemble,packing and shipping.

D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.

Packaging&Shipping

The devices will be well packaged by carton with Foam or other shock proof materials.

Certifications

Factory Production

Product Testing

Order Information

BD-T1-ETH/DC	T1 OVER ETHERNET,DC POWER
BD-T1-ETH/AC1	BD-T1-ETH/AC1 T1 OVER ETHERNET
BD-T1-ETH/AC2	BD-T1-ETH/AC2
BD-T1-ETH/AC3	BD-T1-ETH/AC3
BD-T1-ETH/AC5	BD-T1-ETH/AC5 T2PBER T1 OVER ETHENET,EHTENET OVER T1 BD-T1-ETH/AC5 T2PBER T1 OVER ETHENET,EHTENET OVER T1
