WIFI EPON ONU with 4 Fast Ethernet
Our advantage:Warranty is 3 years with good quality/Low MOQ:1Piece/Low price/OEM or ODM accepted.
EPON ONU BD-ONU-104HW is mainly designed for FTTH,FTTO application. EPON ONU BD-ONU-104HW support 1000Base-PX20 standard with 1:64 maximum optical splitting ratio and 20km distance, and provide 1uplink GE PON port.
ONU BD-ONU-104HW work together with Baudcom OLT could realize flexible network structure and maintenance and provide total FTTx solutions.
ONU BD-ONU-104HW has 1 PON port ,4 10/100BASE-T ports and support WiFi.
Functional Feature
n Support port-based rate limitation and bandwidth control;
n In compliant with IEEE802.3ah Standard
n Up to 20KM transmission Distance
n Support data encryption, group broadcasting, port Vlan separation ,etc.
n Support Dynamic Bandwidth Allocation (DBA)
n Support ONU auto-discovery/Link detection/remote upgrade of software;
n Support VLAN division and user separation to avoid broadcast storm;
n Support power-off alarm function ,easy for link problem detection
n Support broadcasting storm resistance function
n Support port isolation between different ports
n Support ACL and SNMP to configure data packet filter flexibly
n Specialized design for system breakdown prevention to maintain stable system
n Support software online upgrading
n EMS network management based on SNMP ,convenient for maintenance
Specification
Item |
Parameter |
PON Interface |
1 EPON optical interface |
User Ethernet |
4*10/100Mauto-negotiation |
Power Interface |
12V DC Power supply An external 12V 0.5A AC/DC power supply adapter |
|
PON Optical Parameter |
Wavelength: Tx 1310nm, Rx1490nm |
Data Transmission |
PON Throughput: Downstream 950Mbps; Upstream 930Mbps |
Business |
Layer 2 wire speed switching Support VLAN TAG/UNTAG,VLAN conversion Support Port-based speed limitation Support Priority classification Support storm control of broadcast Support loop detection |
Network |
Support IEEE802.3 QAM, ONU can be remotely managed by OLT Support Remote management through SNMP and Telnet Local management |
Management |
Status monitor, Configuration management, Alarm management, |
LED Indicator |
PWR: Power up or down OPTIN: Optical Link Status LINK:ONU Registered ETH: Link Status of Ethernet Interface LAN: Link Status of Ethernet Interface WIFI: WIFI status |
Shell |
Plastic casing |
Power |
External 12V 0.5A AC/DC power supply adapter Power consumption: < 4W |
Physical |
Item Dimension:160mm(L) x 120mm(W) x 32.5mm (H) Item weight:0.2kg |
Environmental |
Operating temperature: 0 to 50ºC |
WIFI Specification
Performance parameters |
Operating Mode |
Router or bridge |
Throughput |
IEEE 802.11b: 11Mbps IEEE 802.11g: 54 Mbps IEEE 802.11n: 135Mbps |
|
Frequency |
2.412 ~ 2.472 GHz |
|
Channel |
13*Channel, configurable to meet the standard of USA, Canada, Japan and China |
|
Modulation |
DSSS , CCK and OFDM |
|
Coding |
BPSK, QPSK, 16QAM and 64QAM |
|
RF receive sensitivity |
802.11b: -82dBm @ 1 Mbps; -80dBm @ 2 Mbps; -78dBm @ 5.5 Mbps; -76dBm @ 11 Mbps 802.11g: -82dBm @ 6 Mbps; -81dBm @ 9 Mbps; -79dBm @ 12 Mbps; -77dBm @ 18 Mbps; -74dBm @ 24 Mbps; -70dBm @ 36 Mbps; -66dBm @ 48 Mbps; -65dBm @ 54 Mbps |
|
RF output lever |
802.11b: 16.5 ±1dBm 802.11g: 13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps; 15 ± 1dBm @ 6 ~ 36 Mbps 802.11n: 13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps; 15 ± 1dBm @ 6 ~ 36 Mbps |
|
Encryption Mode |
802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK) |
Application
Typical Solution:FTTH,FTTO,PON+EOC
Typical Business:INTERNET,IPTV,VOD,IP Camera,WIFI
Network Construction

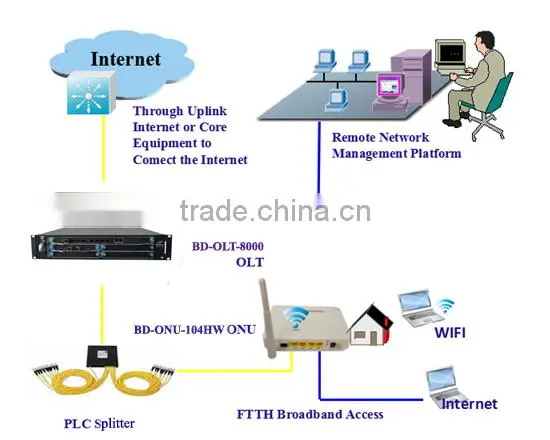

BD-ONU-104HW Application Diagram
Ordering Information
Product Name |
Product Model |
Descriptions |
ONU With Four Fast Ethernet Port and Built-in WiFi |
BD-ONU-104HW |
4*10/100M Ethernet interface, built-in WiFi, 1 EPON interface, plastic casing, external power supply adapter |
FAQ
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
5.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging & Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
Certifications
Factory production
Product testing
After-Sales Service
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.
Your any questions will be responsed within 12hours!
