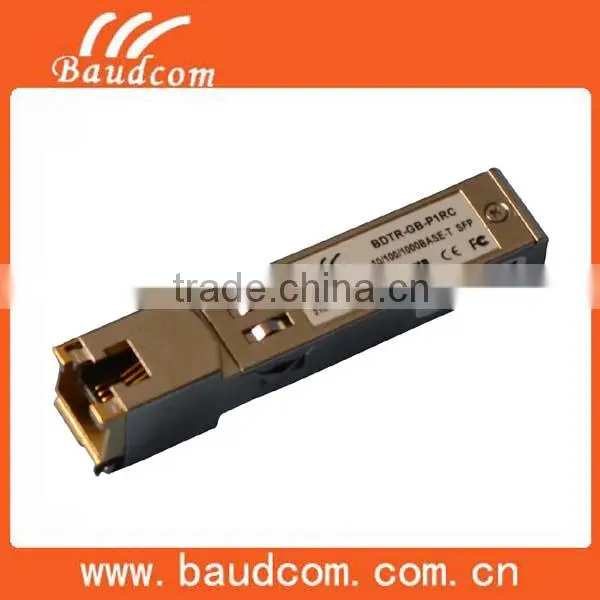

1.25G BIDI Copper 1000Base-Tx SFP Transceiver
  Our advantage:Warranty is 3 years with good quality/Low MOQ:1Piece/Low price/OEM or ODM accepted.

Product Description

Baudcom's BDTR-GB-PxRC Copper Small Form Pluggable (SFP)transceivers is high performance, cost effective module compliant with the Gigabit Ethernet and 1000- BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supp- orting 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable. The module supports1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address A0h.




1.25G BIDI Copper 1000Base-Tx SFP Transceiver

Features
  •  Up to 1.25Gbps bi-direction data links
  • 100m transmission over unshielded twistedpair (UTP) Category 5 Cable
  • Support intelligent auto-negotiation 1000BASE-T operation in host systems with SGMII interface
  • Hot-pluggable capability
  • SFP/GBIC form with compact RJ-45 connector
  • Very low EMI and excellent ESD protection
  • +3.3/5V Single power supply
High-Speed Electrical Interface
All high-speed signals are AC-coupled internally.
Table 3. High-speed electrical interface, transmission line-GBIC
High-Speed Electrical Interface Transmission Line-GBIC
Parameter
Symbol
Min
Typ
Max
Units
Notes/Conditions
Line Frequency
fL

125

MHz
5-level encoding, per IEEE 802.3
Tx Output Impedance
Zout,TX

100

Ohm
Differential, for all Frequencies between 1MHz and 125MHz
Rx Input Impedance
Zin,RX

100

Ohm
Differential, for all Frequencies between 1MHz and 125MHz
High-speed electrical interface, host-GBIC
Table 4. High-speed electrical interface, host-GBIC
High-Speed Electrical Interface, Host-GBIC
Parameter
Symbol
Min
Typ
Max
Units
Notes/Conditions
Single ended data input swing
Vinsing
250

1200
mV
Single ended
Single ended data output swing
Voutsing
350

800
mV
Single ended
Rise/Fall Time
Tr,Tf

175

psec
20%-80%
Tx Input Impedance
Zin

50

Ohm
Single ended
Rx Output Impedance
Zout

50

Ohm
Single ended
General Specifications
Table 5. General specifications
General
Parameter
Symbol
Min
Typ
Max
Units
Notes/Conditions
Data Rate
BR
10

1,000
Mb/sec
IEEE 802.3 compatible.
See Notes 2 through 4 below
Cable Length
L


100
m
Category 5 UTP. BER <10-12
Notes:
1. Clock tolerance is +/- 50 ppm
2. By default, the BDTR-GB-P is a full duplex device in preferred master mode
3. Automatic crossover detection is enabled. External crossover cable is not required
4. 1000 BASE-T operation requires the host system to have an SGMII interface with no clocks, and the module PHY to be configured per Application Note AN-2036. With a SERDES that does not support SGMII, the module will operate at 1000BASE-T only.

Environmental Specifications
Table 6. Environmental specifications
Environmental Specifications
Parameter
Symbol
Min
Typ
Max
Units
Notes/Conditions
Operating Temperature
Top
0

85
¡ãC
Case temperature
Storage Temperature
Tsto
-40

85
¡ãC
Ambient temperature

Application:

  • LAN 1000Base-T
  • Switch to Switch interface
  • Switched backplane applications
  • Router/Server interface
Ordering information
BDTR-GB-P1RC      10/100/1000Mbps SFP module/SFP transceiver, SGMII interface, Copper SFP,spring latch
BDTR-GB-P3RC      1000Mbps SFP module/SFP transceiver only, SERDES interface, Copper SFP,spring latch





FAQ



1.How can i get a sample ?

You need place sample order to us.We will arrange the sample production for you.

2.Could you do design for us?

yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.

3.How can we place order?

After we made agreement on the product' parameters, we will make proforma invoice  for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.

If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a  ship forwarder help you clear the custom.

4.How about the shipping?

For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.

5.what's your products' advantages ?

A. good quality and competetive prices.

B. Strictly quality control when producing.

C. Professional team work, from design, development, producing,assemble,packing and shipping.

D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.



  Packaging & Shipping

 The devices will be well packaged by carton with Foam or other shock proof materials.





Certifications





Factory production





Product testing





After-Sales Service



The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.

Your any questions will be responsed within 12hours!
