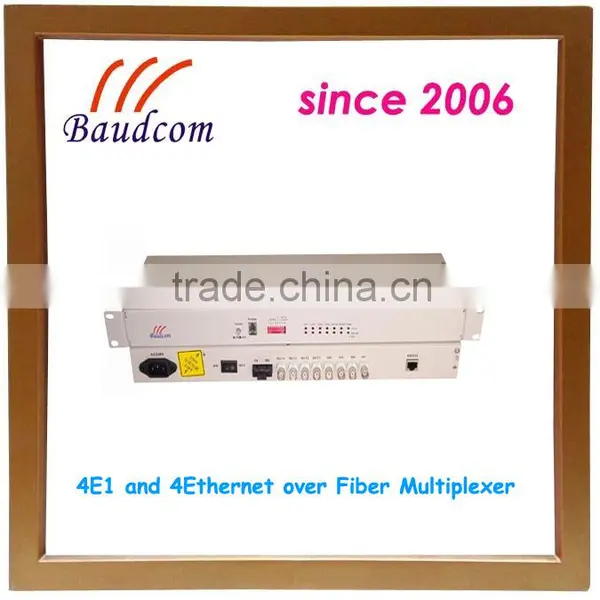

Product: 4E1 4Fast Ethernet over fiber multiplexer
Our advantage
1.Warranty is 3 years with good quality
2. Min MOQ,only one is ok
3.more 16 years factory
4.OEM/ODM accept,CE passed
5.new design and fast delivery
4E1 10 100M Ethernet fiber multiplexer is the 4E1 point-to-point optical transport equipment that uses the FPGA chips and it is easy to upgrade. It is single board structure and the largest transmission capacity is 4E1. The outer design use the standard 19 inches rack, so the volume is little, weight is light and operation is convenient and credit. 4E1/8E1/6E1 fiber optical multiplexer, is use the PDH fiber transmission technologies. The 2M (E1) interfaces can connect with the exchanger, light loop device and multi-diplexer directly to form the mircomidi or the special network. Complete alarm function for 4E1/8E1/16E1, it is stable and easy to maintenance, install and small in size. It has one digital service telephone.
- Offer 4 X 2Mb/s digital interfaces
- The supervisory control interface implements centralized monitoring and export the monitor and control information of this port and opposite port.
- One link to service telephone for duty contract
- 220VAC & -48VDC power options and the positive and negative of DC-48V can be optional because there is the self-test circuit for the polarity inside th1e device
- Standard 19/9.5 inches rack, little volume, light weight, steady capacity and convenient setup
- Digital clock recovery circuit and digital smooth DPLL adopted for 2.048Mb/s port
- LED indicators
- Has 1+1 fiber protection for optional
- Power supply redundancy : AC220 and DC-48V or DC-24V combination
Optical interface
Optical wavelength: 850nm/1310nm for multi- mode optical interface, 1310nm/1550nm for single-mode optic interface
Optical interface: SC/FC
Receiving and dispatching module: >-6dBm
Optical receiver receiving sensitivity <-36 (BER<10):
Dynamic range receiving: >-30dB
Transmitting range: Multi-mode 2 Km, single-mode 40Km, single-mode 60 Km, single-mode 120Km
Vibration characteristic: Satisfies G.742 and the G.823 standard
E1 interface
Interface code: HDB3 code
Line speed: 2.048Mbp/S 50ppm
Interface standard: ITU-T G 703
Interface impedance: 75ohm/unbalanced or 120ohm/ balanced
Interface characteristic: supports rack (19 inches, 6U high), can reach up to 24 directions

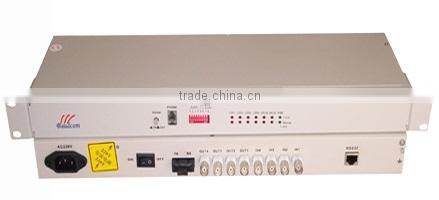

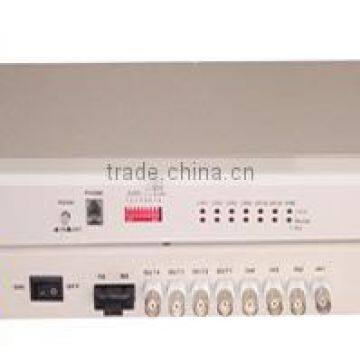

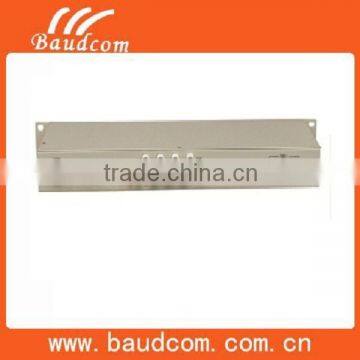

4E1 10 100M Ethernet fiber multiplexer picture:
ordering information:
| BD-OP-4E1-4ETH | 4E1 and 4ethernet over fiber multiplexer,E1 support 75ohm or 120ohm,10/100Mbps ethernet,dual fiber or single fiber,single mode,20KM,power AC220V or DC48V |
| BD-OP-8E1-4ETH | 8E1 and 4ethernet over fiber multiplexer,E1 support 75ohm or 120ohm,10/100Mbps ethernet,dual fiber or single fiber,single mode,20KM,power AC220V or DC48V |
| BD-OP-16E1-4ETH | 16E1 and 4ethernet over fiber multiplexer,E1 support 75ohm or 120ohm,10/100Mbps ethernet,dual fiber or single fiber,single mode,20KM,power AC220V or DC48V |
FAQ
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping for 4E1 10 100M Ethernet multiplexer ?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
5.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging&Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
Certification
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field. Your any questions will be responsed within 12hours!
pls feel free contact us anytime, it's our honor to service for you. we are together.
