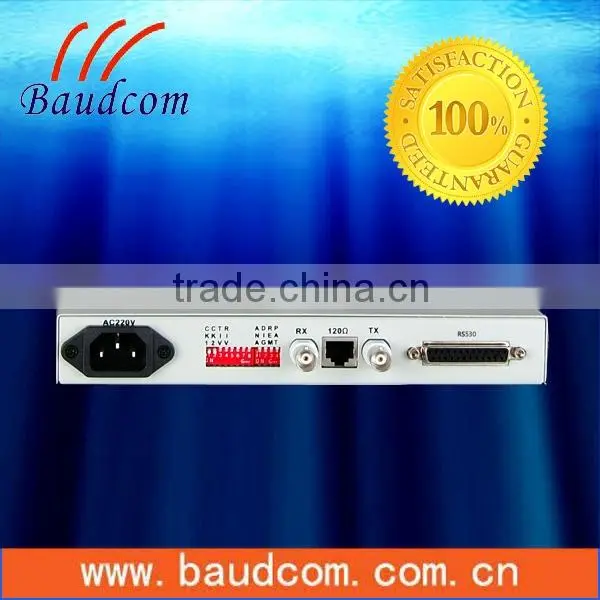

G.703 E1 to RS530 Converter
Our advantage:Warranty is 3 years with good quality/Low MOQ:1Piece/Low price/OEM or ODM
This device provides an economical digital access solution for E1 and Fractional E1 network services. With a adapter cable, the device can connect to other DTE device, such as router, at data rates of 64Kbps to 2048Kbps.User data is placed into the E1 frame, using only the required number of timeslots, timeslot assignment is accomplished according to the data port speed and manual setting of DIP switches. GVE is widely used in communication network, both in WAN and LAN connection field.
- Comply with ITU V.35,G.703,G.704,G.706,G.823
- Framed(N*64Kbps) and unframed(2.048Mbps) optional
- Frame mode support PCM30/PCM31
- Support CRC4
- Support E1 recovery clock
- Provide analog and digital loopback test
- For E1 interface,75ohm(unbalanced) and 120ohm(balanced) optional
- For data interface, V.35 and V.24/RS232 optional
- Comprehensive LED indicators on front panel, convenient for the diagnosis of equipment working state
- Stand-Alone and Rack-Mount type available
- 16-slots,elaborate cooling design and two redundant power supply
- Timeslot can be selected
- 48V DC & 220V AC power supply optional
| E1 Interface | Interface Standard: comply with protocol G.703; |
| Interface Rate: n*64Kbps±50ppm; | |
| Interface Code: HDB3; | |
| E1 Impedance: 75Ω (unbalance), 120Ω (balance) | |
| Jitter tolerance: In accord with protocol G.742 and G.823 | |
| Allowed Attenuation: 0~6dBm | |
| RS530 interface | Interface Rate:N*64kbps |
| Interface character: match ITU-T V.24 | |
| Connector: DB25 male/female (optional). | |
| Interface type: DCE | |
| Clock: G.703 resume clock, internal /RS530 external clock. | |
| Power | power supply:AC180V-260v;DC-48V;DC+24V |
| Powerconsumption:≤5W | |
| Dimension | inner packing size: 216X138X31mm(WXDXH) |
| Product Size: desktop 274X193X84mm(WXDXH) | |
| Working environment | working temperature:-10°C ~ 50°C |
| Working Humidity:5%~95 % (no condensation) | |
| Storage temperature:-40°C ~ 80°C | |
| Storage Humidity:5%~95 % (no condensation) |
FAQ
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
5.What's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging&Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
Certifications
| BD-E1-RS530/AC | G.703 E1 to RS530converter,E1 75ohm(BNC)+120ohm(RJ45),RS530 (DB25 connector),AC220V |
| BD-E1-RS530/DC | G.703 E1 to RS232 converter,E1 75ohm(BNC)+120ohm(RJ45),RS530 (DB25 connector),DC48V |
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.
Your any questions will be responsed within 12hours!
