24ports SFP Opitcal Fiber Gigabit Ethernet Network Switch
Overview
BD-S2500 is a standard L2 Ethernet Network Switch,which is capable of high performance and gigabit speed packet forwarding. This series of ethernet switch has 6/12/20 RJ45 10/100/1000M TX ports(20 1000M SFP for S2524GX), plus 2/4 TX/SFP combo. Due to its high performance and low cost, BD-S2500 series ethernet switch is considered a very competitive Ethernet switching solution for community networking and workgroup networking in enterprise networks.
Features
- Excellent performance
- 104Gbps backboard bandwidth, uncongested design and full wire-speed forwarding
- Gigabit optical-fiber transmission with up to 80Km distance and directly connecting the MAN backbone network
- High security and reliability
- Providing multiple user authentication modes such as 802.1x authentication
- Powerful ACL and hardware supporting L2 to L7 data filtration
- Port-MAC-IP bind
- Special ARP invasion detection to effectively stop ARP cheat
- Flexible and various managements
- Automatically identifying the straight-through cable and the intercrossed cable
- Adopting the cluster technology; supporting device stacking; managing uniquely through a unique IP address; saving address resources
- Supporting multiple management modes such as Console port, Telnet, Web and SNMP
- Supporting multiple general network management protocols like Broad Director, HP Open View and Cisco Works 2000
- Powerful flow and broadcast management
- Automatically detecting and controlling broadcast storms, monitoring IGMP packets and effectively preventing broadcast packet's flooding
- Supporting flow control in full-duplex mode or half-duplex mode
- The rate limitation in a minimum step of 64K is supported on the Ethernet interface.Supporting IP multicast and QoS.
Specifications
|
BD-S2510 |
BD-S2516 |
BD-S2524 |
BD-S2528GX |
|
Port |
8 GE TX ports, 2 GE SFP ports, 1 console port |
14 GE TX ports, 2 GE Combo ports, 1 console port |
20 GE TX ports, 4 GE Combo ports, 1 console port |
24 GE SFP ports, 4 GE Combo ports, 1 console port |
|
Switch Fabric |
20Gbps |
32Gbps |
48Gbps |
56Gbps |
|
Forwarding Mode |
Store-and-forward |
||||
MAC Address Table Size |
8K |
||||
Jumbo frame |
9612 |
12270 |
|||
Functions | |||||
Spanning Tree |
IEEE 802.1D STP, IEEE 802.1w RSTP |
||||
VLAN |
Port-based VLAN, 802.1Q tag VLAN, Private VLAN, GVRP dynamic VLAN configuration, QinQ |
||||
Traffic Control |
Back pressure at half-duplex, 802.3x at full-duplex, CAR support, 64K step size for 100-M ports, 8 M step size for Gigabit ports |
||||
Storm Control |
Stop sending at threshold to restrict broadcast/multicast/unicast storms (except S2508) |
||||
Multicast Control |
IGMP snooping |
||||
Port Trunking |
Up to 12 groups with up to 24 ports per group, dynamic LACP or static aggregation |
||||
Port Mirroring |
Supported. Can be based on flow classification |
||||
Security |
IEEE 802.1x port-based user authentication Port Security (except S2508) Remote authentication through RADIUS User privilege classification and password protection |
||||
QoS |
Head Of Line (HOL) blocking prevention mechanism 4 dispatching queues per port, mapping the 8 priority queues in 802.1p Strict Priority Weighted Round Robin 802.3ah: Discovery, Link Monitoring, Remote Failure Indication |
||||
Network Management |
SNMP v1/v2 RMON (Group 1, 2, 3, 9) Telnet Command Line Interface (CLI) Web interface Support BDCOM network management tools suite: Broad Director NTP |
||||
Software Upgrade |
TFTP/FTP |
||||
Configuration Upload/download |
TFTP/FTP |
||||
Working Environment | |||||
Temperature |
Operating: 0 ~ 50°C, non-operating: -40 ~ 70°C |
||||
Humidity |
0 ~ 90% (no condensing) |
||||

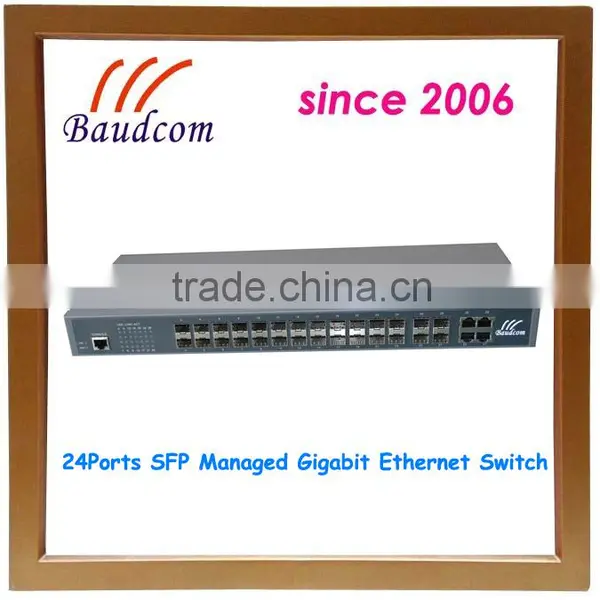

Ethernet Switch Picture:
1.How can i get a sample of Etherent switch?
You need place sample order to us.We will arrange the sample production for you.
2.Can the optical ethernet network switch support WEB management?
yes,the 24ports fiber ethernet switch can be manged by WEB based mangement .
3.How can we place order for the Gigabit SFP ethernet switch?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the Ethernet network switch shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
5.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging & Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
Certifications
Factory production
Product testing
After-Sales Service
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.
Your any questions will be responsed within 12hours!
