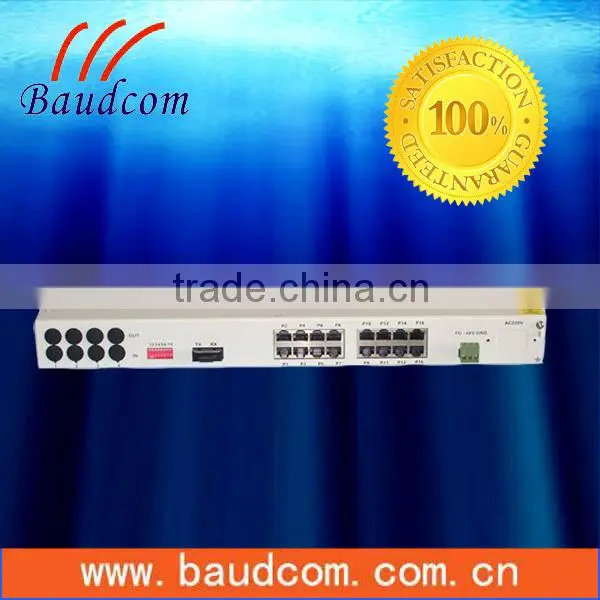

Baudcom Supply 16 Channel FXO FXS Phone Voice Fiber Multiplexer in Stock

Baudcom Supply 16 Channel FXO FXS Phone Voice Fiber Multiplexer in Stock thumbnail-1
Baudcom Supply 16 Channel FXO FXS Phone Voice Fiber Multiplexer in Stock thumbnail-2
Baudcom Supply 16 Channel FXO FXS Phone Voice Fiber Multiplexer in Stock thumbnail-3
Baudcom Supply 16 Channel FXO FXS Phone Voice Fiber Multiplexer in Stock thumbnail-4
Baudcom Supply 16 Channel FXO FXS Phone Voice Fiber Multiplexer in Stock thumbnail-5
Baudcom Supply 16 Channel FXO FXS Phone Voice Fiber Multiplexer in Stock thumbnail-6
Baudcom Supply 16 Channel FXO FXS Phone Voice Fiber Multiplexer in Stock photo-1
Baudcom Supply 16 Channel FXO FXS Phone Voice Fiber Multiplexer in Stock photo-2
Baudcom Supply 16 Channel FXO FXS Phone Voice Fiber Multiplexer in Stock photo-3
Baudcom Supply 16 Channel FXO FXS Phone Voice Fiber Multiplexer in Stock photo-4
Baudcom Supply 16 Channel FXO FXS Phone Voice Fiber Multiplexer in Stock photo-5
Baudcom Supply 16 Channel FXO FXS Phone Voice Fiber Multiplexer in Stock photo-6
US$ 180 - 230 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
BAUDCOM
Model Number:
BD-OP-MUX16
Contact Supplier Request Quote Chat Now
Shanghai Baudcom Communication Device Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai ningbo any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name BAUDCOM
Model Number BD-OP-MUX16

16 channel FXO FXS phone voice fiber multiplexer

Our advantage

1.Warranty is 3 years with good quality

2. Min MOQ,only one is ok
3.more 16 years factory
4.OEM/ODM accept,CE passed
5.new design and fast delivery

Overview

  16 FXO FXS voice fiber multiplexer is a kind of point-to-point fiber transmission device. BAUDCOM designed 16 POTS (FXO/FXS), 1~4channel G.703 E1 and 1~4 channel 100M Ethernet,1~4 channelRS232 transmit over one fiber, and it could match different customer requirement.

Baudcom supply 16 channel FXO FXS phone voice fiber multiplexer in stock



Feature

   Provides 4 channel E1/ G.703;
  provides 1~4*10/100M Ethernet;
  provides 16 channel voice port, FXO and FXS for option;
  provides1~2 channel RS232, rate supports 300-15200 bps for option;
  Ethernet port 10/100M, full/half duplex auto-adaptable and supports VLAN;
  Ethernet port supports AUTO-MDIX (twisted cable and straight cable auto-adaptable);
  1-16 channel voice connection, supports calling indication;
  Voice port supports O port and S port, O port connects switch and S port connects user’s phone;
  Optical interface supports SC or FC or ST connector,single mode or multimode fiber or WDM fiber.
  Fiber transmission distance up to 120km.

Specification



16 FXO FXS voice fiber multiplexer PRODUCT CHARACTERISTIC

²provides 1~4 channel E1/ G.703 for option;

²provides 1~4 channel 100M (liner) Ethernet ports for option;

²provides 1~16channel POTS( FXO/ FXS) voice,also can offer 2/4 wire E&M for option;

²provides 1~4 channel RS232, rate supports 300-15200 bps for option;

²Ethernet port 10/100M, full/half duplex auto-adaptable and supports VLAN;

²Ethernet port supports AUTO-MDIX (twisted cable and straight cable auto-adaptable);

²1~30 channel voice connection, supports calling indication;

²Configuration: point to point;

²Voice port supports O port and S port, O port connects switch and S port connects user’s phone;

²Optical interface supports SC/FC interface and supports single fiber interface

FXO port

Alarm voltage

75V

Alarm frequency

25HZ

2 line input impedance

600Ω (hanging off)

Wastage

40db

FXS port

Alarm detecting voltage

35V

Alarm detecting frequency

17HZ-60HZ

2 line input impedance

600Ω (hanging off)

Wastage

40db

10/100BaseT Interface

Number of Interfaces

1~4 port

Interface Types

10/100BaseT

Standards Compliance

IEEE 802.3

Protocol

User Programmable HDLC

Connectors

B RJ45 (10/100 BaseT Electrical)


E1 Interface

Number of Interfaces

4 port E1

Line Rate

E1 (2.048Mbps ± 50 bps)

Line Code

HDB3

Electrical

ITU-T G.703

Jitter

G.823

Impedance

75hom/120 Ohms

Connectors

BNC(75ohm) or RJ45(120ohm)

Optical Interface

Optical interface

SC/FC/ST

Wavelength

1310nm/1550nm for single-mode optic interface for option

850nm/1310nm for multi-mode optic interface for option

Sending consumption:

-9dBm (regular order)

Receiving and dispatching module:

>-36dBm(regular order)

Optical receiver receiving sensitivity:

<-36 (BER<10):

Optical code:

NRZ

Transmit distance

MM 2Km/5Km,SM 20Km/40Km/60 Km/120Km for option

Mechanical Specifications

Rack Mounting

Standard 19-inch DIN rack 30 POTS

Dimension

19inch 1 U: 433mm(L)*138mm(D)*44mm(H)

16 FXO FXS fiber multiplexer Management for option

Web managed built-in or SNMP central management via chassis

Power Supply

Input AC/DC voltage

-48V DC ( nominal ) / AC also available

Range of input

-36V to -72V DC /90V~260VAC

Temperature

0 centi degree to 55 centi degree

Humidity

95% RH (non-condensing)

Cooling

Convection Cooling





Application



Application

Baudcom supply 16 channel FXO FXS phone voice fiber multiplexer in stock

FAQ

1.How can i get a voice fiber multiplexer sample ?

You need place sample order to us.We will arrange the sample production for you.

2.Could you do design for us?

Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.

3.How can we place order?

After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.

If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.

4.How about the shipping?

For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.

5.what's your products' advantages ?

A. good quality and competetive prices.

B. Strictly quality control when producing.

C. Professional team work, from design, development, producing,assemble,packing and shipping.

D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.



Packaging&Shipping

The devices will be well packaged by carton with Foam or other shock proof materials.

Baudcom supply 16 channel FXO FXS phone voice fiber multiplexer in stock



Certifications



Factory Production

  Baudcom supply 16 channel FXO FXS phone voice fiber multiplexer in stock





Product Testing

  Baudcom supply 16 channel FXO FXS phone voice fiber multiplexer in stock













































Order Information

Order information

BD-OP-MUX16

16POTS(FXO/FXS) over Fiber multiplexer

BD-OP-MUX16/4E1

16POTS(FXO/FXS) ,4E1 over Fiber multiplexer

BD-OP-MUX16/4E1/4ETH/4RS232

16POTS(FXO/FXS) ,4E1 ,4Ethernet ,4RS232 over Fiber multiplexer

BD-OP-MUX16/SNMP

16POTS(FXO/FXS) over Fiber multiplexer,web managed or SNMP for option





After Sales Services



The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.

Your any questions will be responsed within 12hours!



Baudcom supply 16 channel FXO FXS phone voice fiber multiplexer in stock













































pls feel free contact us anytime, it's our honor to service for you. we are together.
