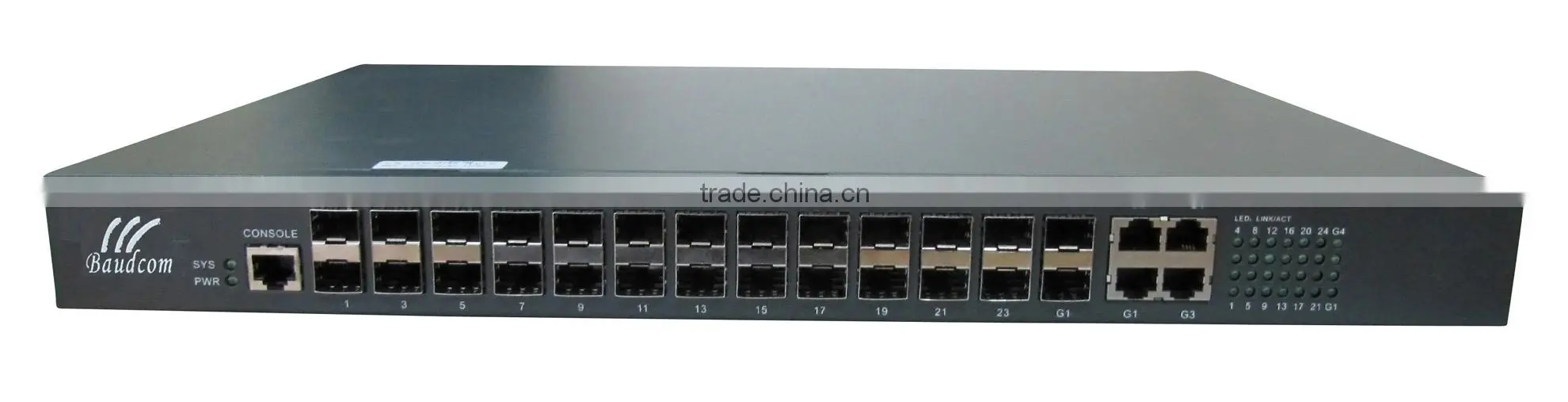

24ports 100M Optical Fiber Fast Ethernet Network Switch

Name: 24ports 100M Optical Fiber Fast Ethernet Network Switch
Brand: BAUDCOM
Availability: InStock

FOB Price

US$ 280 - 390 / Unit

1 Unit(Min. Order)

Port shanghai ningbo any port in China
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Ports	24
Transmission Rate	10/100Mbps	Function	LACP, QoS, SNMP, Stackable, VLAN Support
Communication Mode	Other, Full-Duplex & Half-Duplex	Certification	FCC,CE,ROHS
Switch Capacity	36Gbps	Brand Name	BAUDCOM
Model Number	BD-S2228F	Place of Origin	Shanghai, China

Product Description

24ports 100M Optical Fiber Fast Ethernet Network Switch with WEB and SNMP management

Our advantage

1.Warranty is 3 years with good quality

2. Min MOQ,only one is ok
3.more 16 years factory
4.OEM/ODM accept,CE passed
5.new design and fast delivery

Overview

The 24ports 100M Optical Fiber Fast Ethernet Network Switch with WEB and SNMP management is a modularized hi-performance workgroup-level or enterprise-scale switch, with 24 Fast Ethernet ports(24 100M SFP slots for S2228F), plus maximum 4 gigabit ports. 24-port Ethernet Switch can connect all (Fast) Ethernet devices so that your investment is protected.

The hi-speed connection provides among workgroups can boost the capability of server clusters, and

the 24-port Ethernet network Switch solves the bottleneck caused by increasing users and limited bandwidth, making network resources, more readily available to you. More importantly, all of the advantages are brought to you by BAUDCOM

at low costs and with easy maintenance

Typical Application

*Hi-performance, network manageable inter-workgroup or enterprise-edge switching

Features

Performance

*36 Gbps switch fabric, hardware routing, wire-speed L2 forwarding rate: 9.5 Mpps

*80-km transfer by Gigabit optical fiber, direct connection to WAN

Security and reliability

*IEEE 802.1x and other methods for user authentication

*Powerful ACL supports L2-L7 data filtering

*QinQ support. Double VLAN security

Easy maintenance

*Automatic recognition for straight-through or cross-over cables

*Stackable through cluster technology. Central management with unified IP address saves IP addresses

*Management via CONSOLE port, SNMP and other methods

*Support(Baudcom)BroadDirector,HP Open View, Cisco Works 2000

Traffic and broadcast control

*Auto-detection and restraining of broadcast storm, IGMP snooping, effectively restrict broadcast flooding

*Full- and half- duplex traffic control

*Ethernet port rate limiting with 64 K step size (1 M step size for rate over 1.8 M)

*Qos support

*Jumbo frame

Specification

	S2228	S228F	S2228PoE
Processor	MPC 50MHz
Flesh	4MB
Memory	64MB
Port & Slot	24*10/100M TX	24*100M SFP slots	24*10/100M TX
	2*10/100/1000M TX	2*10/100/1000M TX	4*GSFP/TX combo
	2*GSFP/TX combo	2*GSFP/TX combo	4*GSFP/TX combo
	1*Console Port	1* Console Port
Switch Fabric	36Gbps
Forwarding Rate	All Wire-Speed Forwarding and Filtering
Switching Mode	Store-and-Forward
Mac Address Table Size	8k
Queuing Buffer	64MB
Jumbo Frame	2048
*Dimensions(LWH)*	442mm225mm44mm
Weight	6.6kg
Power Consumption	28W(Max.)
Power Input	AC 100 ~ 240 V, 47 ~ 63 Hz, 1A/230V
LED Indicators	Power, system, link, activity, 10/100M
Temperature	Operating: 0 ~ 50C, non-operating: -40 ~ 70C
Humidity	0~95%(no Condensing)

Function:

Spanning Tree	IEEE 802.1D STP, IEEE 802.1w RSTP, 802.1s MSTP
Vlan	Port-based VLAN, 802.1Q tag VLAN, Private VLAN, GVRP dynamic VLAN configuration, QinQ
Traffic Control	Back pressure at half-duplex, 802.3x at full-duplex, CAR support, 64K step size for 100-M ports, 8 M step size for Gigabit ports
Storm Control	Stop sending at threshold to restrict broadcast/multicast/unicast storms
Multicast Control	IGMP Snooping
DHCP	DHCP snooping, DHCP option 82, IP source guard
Port Trunking	Up to 6 groups with up to 8 ports per group, dynamic LACP or static aggregation
Port Mirroring	Supported. Can be based on flow classification
Clustering	Up to 256, manageable through single IP
Security	IEEE 802.1x port-based user authentication
Security	Port Security Hardware support for IP ACL, MAC ACL, VLAN ACL Remote authentication through RADIUS User privilege classification and password protection
QoS	Head Of Line (HOL) blocking prevention mechanism
	4 dispatching queues per port, mapping the 8 priority queues in 802.1p
	Best Effort Service
	Differentiated Service
	Strict Priority
	Weighted Round Robin
	First come First Serve
	TOS-Retagging
	RTS
Network Management	SNMP v1/v2
	RMON (Group1,2,3,9)
	Telnet
	Command Line Interface(CLI)
	Web Interface
	Support BDCOM network management tools suite: Broad Director
	NTP
	SSH
	LLDP
Software Upgrade	TFTP/FTP
Configuration Upload/Download	TFTP/FTP

FAQ

1.How can i get a 24-port Ethernet network Switch sample ?

You need place sample order to us.We will arrange the sample production for you.

2.Could you do design for us?

yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.

3.How can we place order for 24-port Ethernet network Switch?

After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.

If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.

4.How about the shipping?

For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.

5.what's your products' advantages ?

A. good quality and competetive prices.

B. Strictly quality control when producing.

C. Professional team work, from design, development, producing,assemble,packing and shipping.

D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.

Packaging & Shipping

The devices will be well packaged by carton with Foam or other shock proof materials.

Certifications

Factory production

Product testing

After-Sales Service

The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.

Your any questions will be responsed within 12hours!

pls feel free contact us anytime, it's our honor to service for you. we are together.
