Ultra light P4 led board with competitive price/ P4 led panel video wall
1.LED display introduction
LED screen is composed of LED display modules, control systems, frame or cabinet to display information, content diverse and can be customized according to the actual situation in size.
2. Features :
1) Die-casting aluminum structure enable stable and high quality LED displays.
2) 140 degree view angle and good flatness when assembled.
3) Good color consistancy and high contrast ratio.
4) energy conservation, high reliability, long life.
5) light weight, easy installation.
3. Product Parameters:
Item | LIYI-ID-P3SMD | LIYI-ID-P4SMD | LIYI-ID-P5SMD | LIYI-ID-P6SMD |
Pixel pitch | 3mm | 4mm | 5mm | 6mm |
Pixel density | 111111 dots/sqm | 62500 dots/sqm | 40000 dots/sqm | 27777 dots/sqm |
Pixel configuration | 1R1G1B(2121SMD) | 1R1G1B(2121SMD) | 1R1G1B(3528SMD) | 1R1G1B(3528SMD) |
Max brightness | 1300nit | 1200nit | 1800nit | 1500nit |
View angle(horizontal) | ±110° | ±110° | ±110° | ±110° |
Standard cabinet size | 576*576mm | 512*512mm | 640*640mm | 576*576mm |
Weight | 35KG/sqm | 35KG/sqm | 35KG/sqm | 35KG/sqm |
Cabinet resolution | 192*192 pixel | 128*128pixel | 128*128 pixel | 128*128 pixel |
Max power consumption | 1100W/sqm | 1000W/sqm | 900W/sqm | 800W/sqm |
AVE. consumption | 350W/sqm | 300W/sqm | ||
Drive Method | 1/16 scan, constant current | 1/8 scan, constant current | ||
Cabinet material | Steel (cold rolled iron) or Aluminum (optional) | |||
Gray scale | 65536 (16 bit) | |||
Colors | 16.7M | |||
Refresh rate | 3000HZ | |||
Frame rate | 60HZ | |||
Protection level | IP43 | |||
Malfunction dot rate | 0.1≤‰ | |||
Control mode | PC synchronous or asynchronous control(optional) | |||
Input voltage(AC) | AC90—240V | |||
Operation voltage | DC5V | |||
Operation temperature | -20~50℃ | |||
Operation humidity | 10%~90% | |||
MTBF | 1000h | |||
Life span | 100000h | |||
4. Product details for referance:
5.LED rental cabinet structure for choice:
6.LED display control mode:
Asynchronous control mode support U-disk port,Ethernet rj45 port, Serial Rs232 port, Wifi, 3G series. Support all languages and fresh animations.
Display content:text, picture, video and can receive signals such as TV, VCR,DVD etc.
7.Installation:

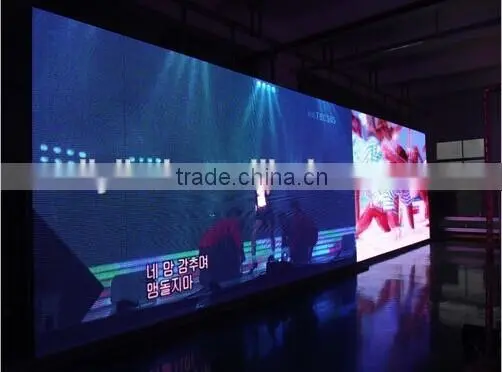

8. Applications:
The main application areas: stage, wedding show, exhibition hall, conferance room, church, activities, shopping centers, ticket hall, hotel, businesses, bank, transportation, Industry and Commerce.
1. Wooden box or airfreight case for good price LED screen P3 P4 P5 P6 LED display board/rental LED display/LED video wall
1.Your inquiry related to our products or price will be replied in 24hrs
2.OEM&ODM,any your customized lightings we can help you to design and put into product
3.Distributoership are offered for your unique design and some our current models
4.Protection of your sales area,ideas of design and all your private information
5.Best cost performance and perfect service before and after sales
CE and Rose Certificate
Company Introduction
SHENZHEN LIYI OPTOELECTRONIC Co., Ltd is a Chinese high-tech optoelectronics display enterprise which specializes in the research, development, production, sales,construction and service of LED display since 2009. LIYI LED established strict quality control of LED components, LED display and the whole set of video systems, devoting to provide the most suitable indoor or outdoor display solutions from design, manufacturing, installation and maintenance.
Our main products: indoor and outdoor full color LED display, LED pharmacy cross,
LED single color moving sign display, LED display accessories.
Our products are widely used in pharmacy, telecommunications,financial securities, electricity, transportation, schools, hospitals, supermarkets, hotels, weather, real estate, sports, stage, restaurants, entertainment, theater, municipal advertising and government departments etc., and exported to Europe, Asia, North America…
Q1:.What is DIP LED? What is SMD LED?
A: DIP LED are throught the DIP(Dual in-line package) technology,after soldering the led lamp's feet to stable it on the PCB .,so it names of DIP LED. It has high brightness and waterproof ,using for outdoor using
SMD led also named SMT(surface mounted technology),through the SMT technology encapsulating diode,solodering this lamp on the PCB board surface,should not plug the lamp feet to the PCB board,so it names SMD led moule, using for indoor.
Q2: What is the brightness, viewing angle and wavelength of the LED?
A: Luminous Intensity is equal to the amount of luminous flux emitted into a very small solid angle at a defined angular orientation from the light source. The measurement for luminous intensity is the candela. Symbol is Iv.
Viewing Angle is the total cone angle in degrees encompassing the central, high luminous intensity portion of the LED beam from the on-axis peak to the off-axis point where the LED intensity is 50% of the on-axis intensity. This off-axis point is known as theta one-half ( 1/2). Two times 1/2 is the LEDs' full viewing angle; however, light is visible beyond the1/2 point.Wavelength is the distance between two points of corresponding phase and is equal to waveform velocity divided by frequency. It defines what color human eyes could recognize.
Q3: What chip do we use for LED display module?
A: The LED chip we use is Taiwan Epistar.
Q4: What is the warranty of our products? How is the after-sale service?
A: All our product offer two years warranty. And for every batch of goods, we offer spare LEDs and IC or spare module for repair. Also clients could send broken modules, we will repair it for free.
