Professional led display manufacturer, covering all pixels
Complete facilities, factory price
Skype:liyisales03
China custmoized led display 6mm outdoor advertising led display screen prices
1.P6 SMD LED Module
Model:P6-OD-FC
Use:outdoor
Module size:192*192mm
Pixel component:1R1G1B(SMD3528)
Resolution:32*32dots
Drive mode:1/8scan
Data inteface:HUB75
2.Features
·27777 pixel dots per square meter resolution
·With super-high brightness LED, high contrast
·High frame frequency, wider view angel
·With module development and distributed scan technology, high reliability
·Universal AC input / full range
·IP65 protection level, indoor solution
·PC synchronous or asynchronous control(optional)
·Use common video play software, easy to use
·2 years warranty
3. Technical Parameters for P6 LED Display
| Item | LIYI-OD-P6SMD |
| Pixel pitch | 6 mm |
| Pixel density | 27777 dots/sqm |
| Pixel configuration | 1R1G1B(3528SMD) |
| Max brightness | 7000nit |
| View angle(horizontal) | ±60° |
| Gray scale | 65536 (16 bit) |
| Colors | 16.7M |
| Color temperature | 6500K-9300K |
| Refresh rate | 3000HZ |
| Contrast ratio | 4000:01:00 |
| Frame rate | 60HZ |
| Standard cabinet size | 576×576mm |
| Weight | 45KG/sqm |
| Cabinet resolution | 96×96 pixels |
| Cabinet material | aluminum-pull cabinets |
| Protection level | IP65 |
| Max power consumption | 900W/m2 |
| AVE. consumption | 450W/m2 |
| Drive Method | 1/8 scan, constant current |
| Malfunction dot rate | 0.1≤‰ |
| Control mode | PC synchronous control |
| Input voltage(AC) | AC90—240V |
| Operation voltage | DC5V |
| Operation temperature | -20~50℃ |
| Operation humidity | 10%~90% |
| MTBF | 5000h |
| Life span | 100000h |

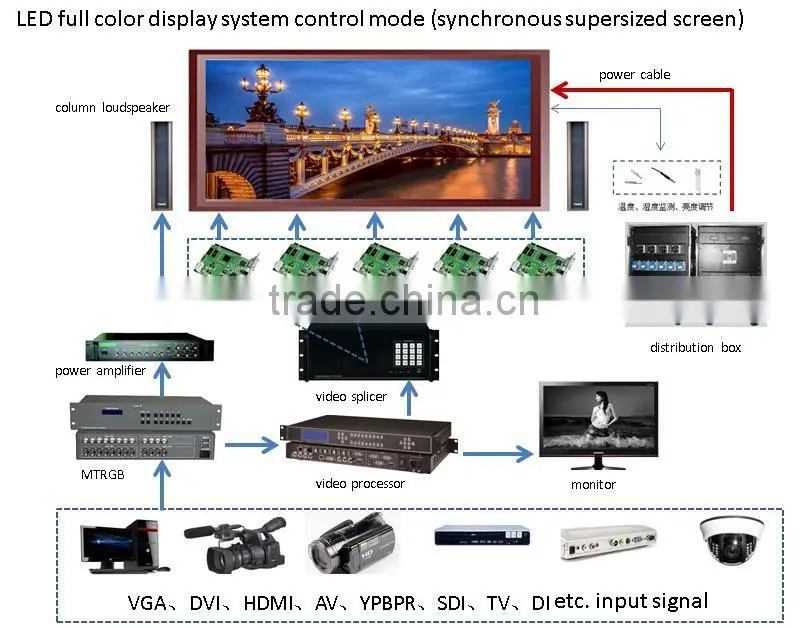

4.Control Mode
synchronous control
super size synchronous control

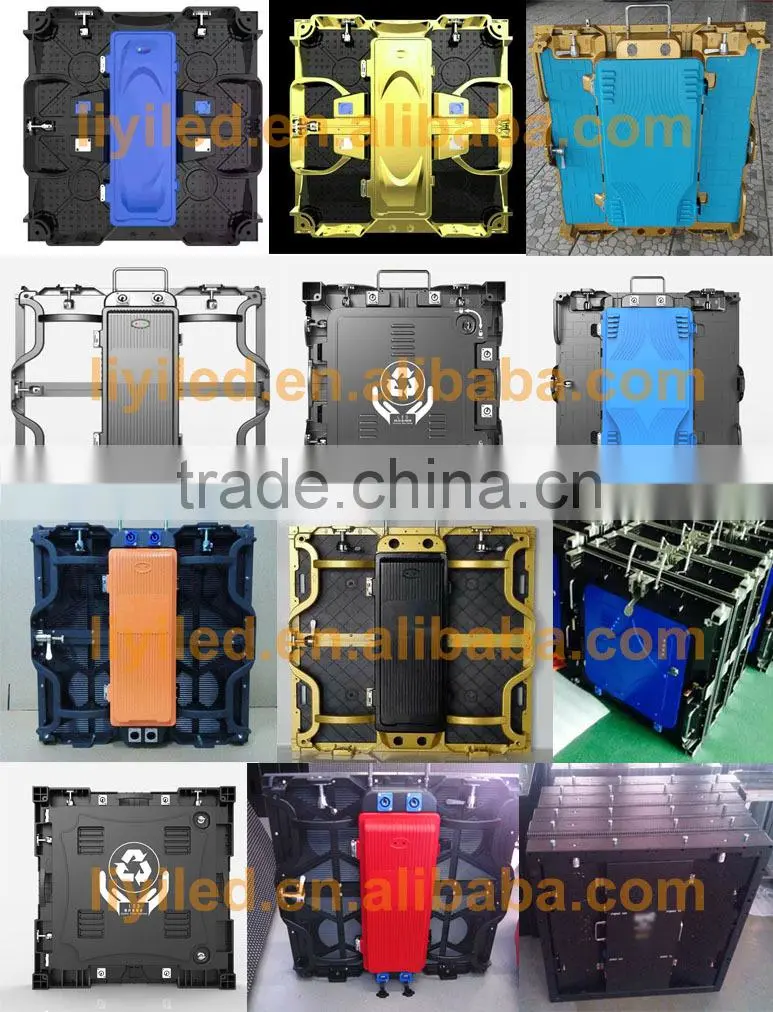

5.Cabinets and Other Types
Use Environments |
Model |
Resolution (dots/m2) |
Cabinet Size(mm) |
Max. Power Consumption(W/m2) |
Brightness(cd/m2) |
Weight(kg/pc) |
|
INDOOR |
LIYI-ID-P3.91 |
65410 |
500*500*75 |
600 |
1200 |
8 |
LIYI-ID-P4 |
62500 |
512*512*75 |
650 |
1200 |
9 |
|
LIYI-ID-P4.81 |
43222 |
500*500*75 |
600 |
1300 |
9 |
|
LIYI-ID-P5 |
40000 |
640*640*75 |
700 |
1300 |
11 |
|
LIYI-ID-P6 |
27777 |
576*576*75 |
500 |
5000 |
9 |
|
LIYI-ID-P6.25 |
25600 |
500*500*75 |
550 |
1400 |
9 |
|
LIYI-ID-P10 |
10000 |
640*640*75 |
600 |
1300 |
15 |
|
LIYI-ID-P12.5 |
6400 |
500*1000*75 |
600 |
1000 |
10 |
|
OUTDOOR |
LIYI-OD-P8 |
15625 |
640*640*75 |
900 |
5000 |
16 |
LIYI-OD-P10 |
10000 |
640*640*75 |
900 |
5500 |
16 |

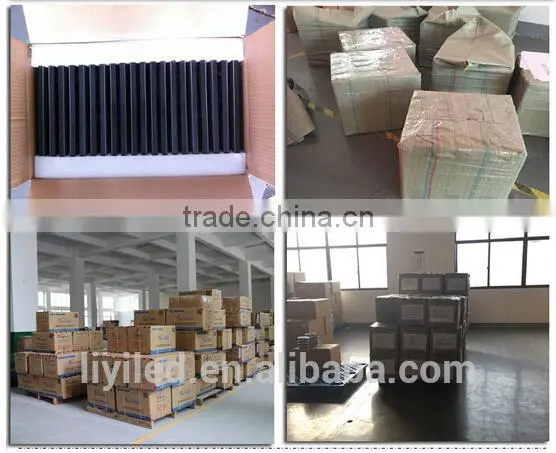

6.Packing&Shipping
china custmoized led display 6mm outdoor advertising led display screen prices
-small quantity, use carton boxes; big quantity,use plywood boxes.
-shipping: small quantity by EXPRESS-DHL,UPS,TNT,FEDEX; for big quantity, air shipping and sea shipping will be more suitable.
7.Our Service
1) shipping way will be confirmed by the customer: usually EXPRESS(DHL, FEDEX,TNT...) AIR shipping and sea shipping.
2) We can support you from product design, drawing, structure, technices and after-sales service to solve your question timely.
3) Accept custom design; professional R&D team design the most suitable product for you.
4) Factory production capacity guarantees your order delivery.
8.Factory Profile
china custmoized led display 6mm outdoor advertising led display screen prices
SHENZHEN LIYI OPTOELECTRONIC Co., Ltd is a Chinese high-tech optoelectronics display enterprise which specializes in the research, development, production, sales, construction and service.
Specializing in LED field since 2009, we took innovation in the market and product classification and innovative products already have strong core competitiveness. LIYI Tech established strict quality control over all of LED components, LED display and the whole set of video systems, devoting to provide the most suitable indoor or outdoor display system solutions from design, manufacturing, installation and maintenance.
Main products: LED pharmacy cross, LED glasses sign, LED sign, LED display, LED taxi/bus sign, LED display accessories and LED lighting.
9.After-sale Service
-2 years warranty,if broken in warranty time,we will supply free technical support or free spare parts to prepare or replace.
-For installation and operation, any question, contact anytime via email&skype&phone call.
-Direclty remote control via team viewer.
10.Certificate
