led screen outdoor p10 double sided led sign from liyi china
1.Double face display, wide audience
2.strong pointedness, good stability
3.flexible installation, easy maintenance
1.Product desription for outdoor double sided led sign
LED double face display is composed of LED modules, control systems and cabinet with two faces to display; main application areas: business center, railway stations, docks, stores, traffic signs etc.
Specification:
Item |
LIYI-OD-P10DIP |
LIYI-OD-P10SMD |
Pixel pitch |
10mm |
10mm |
Pixel density |
10000 dots/m2 |
10000 dots/m2 |
Pixel configuration |
1R1G1B(346DIP) |
1R1G1B(5050SMD) |
Max brightness |
8000 nit |
8000 nit |
View angle(horizontal) |
±55° |
±60° |
Gray scale |
65536 (16 bit) |
65536 (16 bit) |
Colors |
16.7M |
16.7M |
Color temperature |
6500K |
6500K |
Refresh rate |
3000HZ |
3000HZ |
Contrast ratio |
4000:1 |
4000:1 |
Frame rate |
60HZ |
60HZ |
Standard cabinet size |
960×960mm |
960×960mm |
Weight |
60KG/m2 |
45KG/m2 |
Cabinet resolution |
96×96 pixels |
96×96 pixels |
Cabinet material |
Steel (cold rolled iron) or Aluminum (optional) |
Steel (cold rolled iron) or Aluminum (optional) |
Protection level |
IP65 |
IP65 |
Max power consumption |
900W/m2 |
900W/m2 |
AVE. consumption |
400 W/m2 |
400 W/m2 |
Drive Method |
1/4 scan, constant current |
1/4 scan, constant current |
Malfunction dot rate |
0.1≤‰ |
0.1≤‰ |
Control mode |
PC synchronous or asynchronous control(optional) |
PC synchronous or asynchronous control(optional |
Input voltage(AC) |
AC90—240V |
AC90—240V |
Operation voltage |
DC5V |
DC5V |
Operation temperature |
-20~60℃ |
-20~60℃ |
Operation humidity |
10%~90% |
10%~90% |
MTBF |
1000h |
1000h |
Life span |
100000h |
100000h |

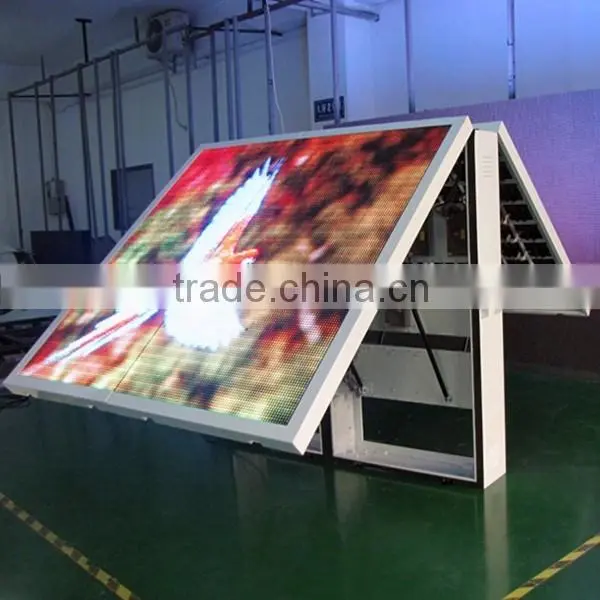

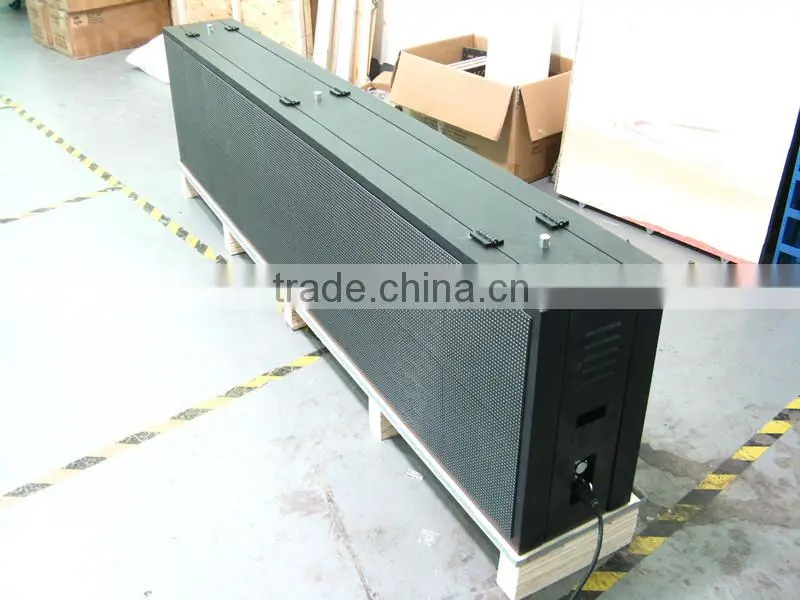

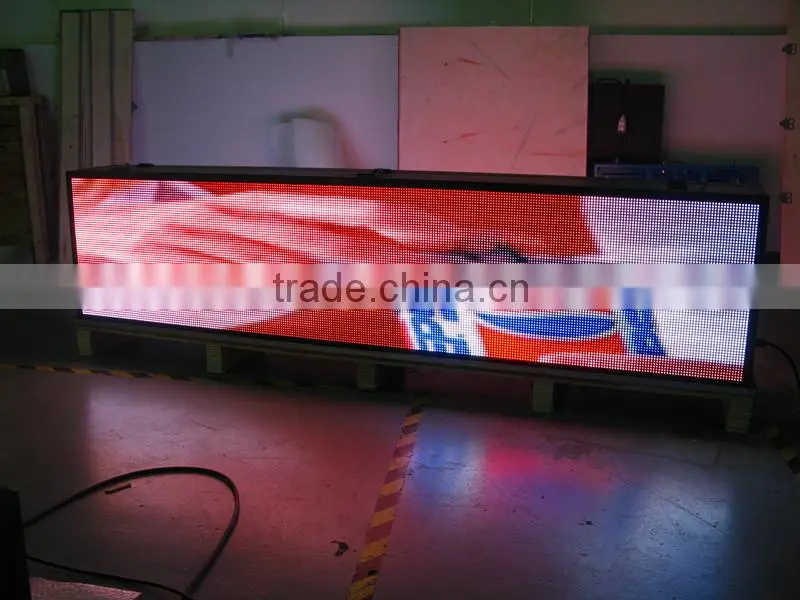

2.Products shows for outdoor double sided led sign
Features:
·10000 pixel dots per square meter resolution
·With super-high brightness LED, high contrast
·High frame frequency, wider view angel
·With module development and distributed scan technology, high reliability
· Universal AC input / full range
· IP65 protection level, outdoor solution
· PC synchronous or asynchronous control(optional)
·Use common video play software, easy to use
·2 years warranty

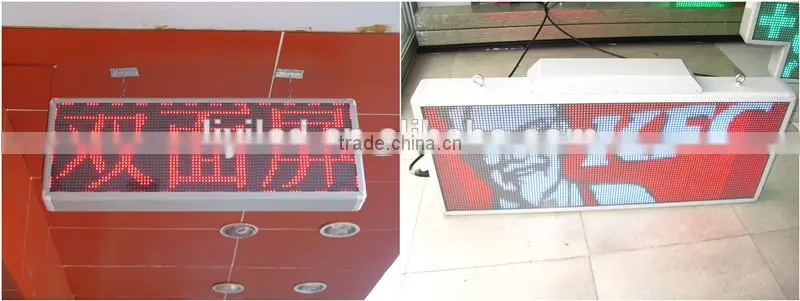

Case:
Function: multiple languages, diverse display, with temperature and humidity monitoring display, brightness automatic adjustment function; double face display with wide audience and double face screen can be customized in size.
Control mode: cable, RF, USB, 3G, 4 control modes (can be freely selected according to actual scene).
As follows:
3.Certificate for led indoor display
4.Packing & Shipping for led indoor display
5.Our services for led indoor display
1.Two years warranty
2.CE & RoHS certificated
3.30% deposit before products,70% balance to be paid before delivery
4.Its can be custom.
6.Company information for led indoor display
SHENZHEN LIYI OPTOELECTRONIC Co., Ltd is a Chinese high-tech optoelectronics display enterprise which specializes in the research, development, production, sales, construction and service.
Specializing in LED field since 2009, we took innovation in the market and product classification and innovative products already have strong core competitiveness. LIYI Tech established strict quality control over all of LED components, LED display and the whole set of video systems, devoting to provide the most suitable indoor or outdoor display system solutions from design, manufacturing, installation and maintenance.
7.FAQ for led indoor display
1.Any question please feel free to contact Sherry Tang
Skype:sherry201222
Wechat: tangxiujiao
Linkedin & Email : sherry at
2.Products also can be customsized
