LIYI Design--Factory Price--Good Quality
Multi control mode:RJ45, WIFI, USB, RS232,GPRS
Skype: liyisales03
2015 HD P10 full color outdoor double sided led sign/rgb full color led display boards
1.Item Detail
Item |
LIYI-DS-P10-FC |
Pixel pitch |
10mm |
Pixel configuration |
1R1G1B |
Pixel resolution |
256×144 dots |
Max brightness |
8000cd |
View angle(horizontal) |
±60° |
Gray-scale |
256 grade |
Input voltage(AC) |
220V |
Cooling way |
Forced air cooling |
Control mode |
PC asynchronous control |
Communication mode |
RS232, cable, wireless (RF), U disk (USB), WIFI, internet, GPRS/3G/4G |
Support program |
Animation,graphics,video,text,date,time,humidity |
Protection level |
IP65 |
MTBF |
5000h |
Life span |
100000h |
Operation temperature |
-20~60℃ |
Operation humidity |
10%~90% |
Cabinet material |
Steel (cold rolled iron) |
2.Features
-outdoor display, fully waterproof;
-energy conservation, high reliability, long life;
-easy installation and software operation;
-asynchronous control (multi-mode selection)
3.Function and Control Mode
multi-language, graphics, animation, and diverse display, with temperature and humidity monitoring display, brightness automatic adjustment function; screen size can be customized.
Control mode: RS232, cable, wireless (RF), U disk (USB), WIFI, internet, GPRS/3G/4G, 7 control modes (can be freely selected according to the actual scene). As follows:

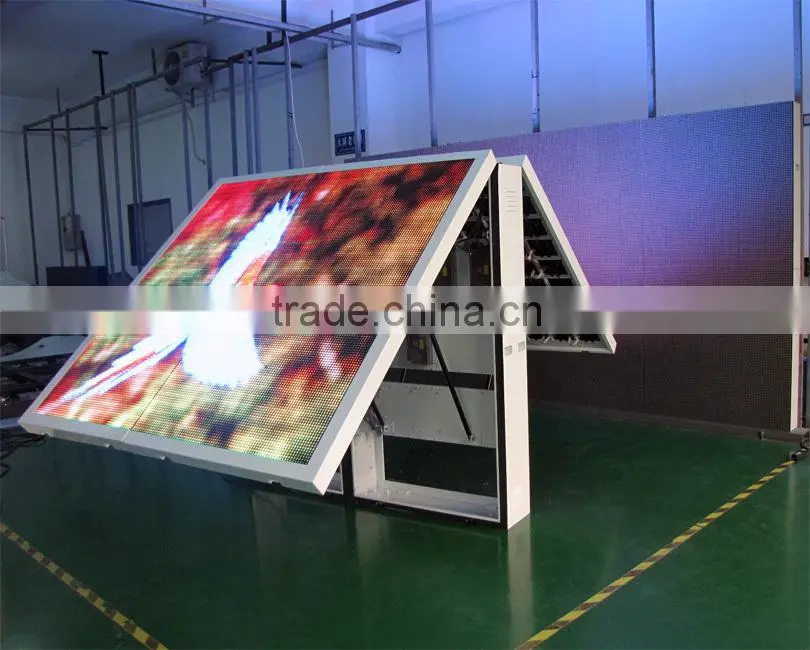

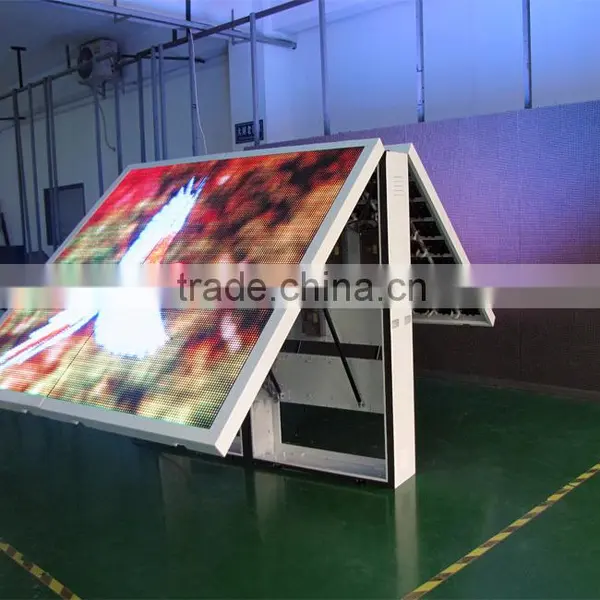

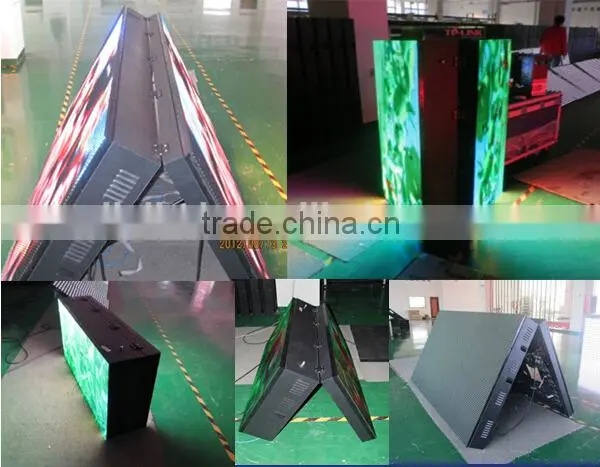

4.Product Show
5.Packing and Shipping
-Strengthen plywood boxes
-shipping: small quantity by EXPRESS-DHL,UPS,TNT,FEDEX; for big quantity, air shipping and sea shipping will be more suitable.

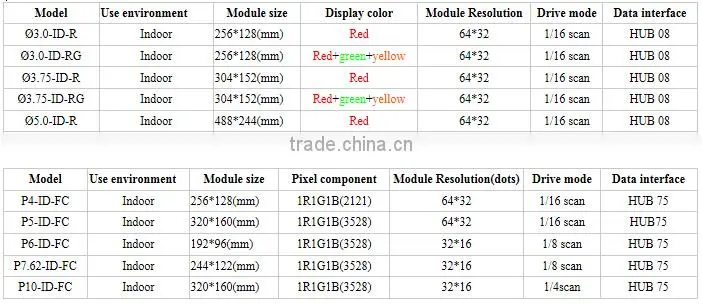

6.Other Types
Model |
Use environment |
Module size |
Display color |
Module Resolution |
Drive mode |
Data interface |
P10-OD-SC |
Semi-outdoor/Outdoor |
320*160(mm) |
Red/ Green/ Blue/ White/ Amber |
32*16 dots |
1/4 scan |
HUB 12 |
P16-OD-SC |
Outdoor |
256*256(mm) |
Red/ Green/ Blue/ White/ Amber |
16*16 dots |
1/4 scan |
HUB 12 |
P20-OD-SC |
Outdoor |
320*160(mm) |
Red/ Green/ Blue/ White/ Amber |
16*8 dots |
1/4 scan |
HUB 12 |
P25-OD-SC |
Outdoor |
400*200(mm) |
Red/ Green/ Blue/ White/ Amber |
16*8 dots |
1/4 scan |
HUB 12 |
P10-OD-TC |
Semi-outdoor/Outdoor |
320*160(mm) |
RG/RB/GB |
32*16 dots |
1/4 scan |
HUB 08 |
P16-OD-TC |
Outdoor |
256*256(mm) |
RG/RB/GB |
16*16 dots |
1/4 scan |
HUB 08 |
P20-OD-TC |
Outdoor |
320*160(mm) |
RG/RB/GB |
16*8 dots |
1/4 scan |
HUB 08 |
P25-OD-TC |
Outdoor |
400*200(mm) |
RG/RB/GB |
16*8 dots |
1/4 scan |
HUB 08 |
P6-OD-FC(SMD) |
Outdoor |
192*192(mm) |
1R1G1B(3528SMD) |
32*32 |
1/4 scan |
HUB 75 |
P8-OD-FC |
Outdoor |
256*128(mm) |
1R1G1B |
32*16 |
1/4 scan |
HUB 75 |
P10-OD-FC |
Semi-outdoor/Outdoor |
160*160(mm) |
RGB |
16*16 dots |
1/4 scan |
HUB 75 |
P10-OD-FC |
Outdoor |
320*160(mm) |
RGB |
32*16 dots |
1/4 scan |
HUB 75 |
P10-OD-FC |
Outdoor |
320*320(mm) |
RGB |
32*32 dots |
1/4 scan |
HUB 75 |
P16-OD-FC |
Outdoor |
256*256(mm) |
RGB |
16*16 dots |
1/4 scan |
HUB 75 |
P20-OD-FC |
Outdoor |
320*160(mm) |
RGB |
16*8 dots |
static |
HUB 75 |
P25-OD-FC |
Outdoor |
400*200(mm) |
RGB |
16*8 dots |
static |
HUB 75 |
P31.25-OD-FC |
Outdoor |
250*250(mm) |
4R2G2B |
8*8 dots |
static |
HUB 75 |
7.After-sale Service
-2 years warranty,if broken in warranty time,we will supply free technical support or free spare parts to prepare.
-For install and operation, any question, contact anytime via email&skype&phone call.
-Direclty remote control instruct via team viewer.
8.Our Service
1) Shipping way will be confirmed by the customer: usually EXPRESS(DHL, FEDEX,TNT...) AIR shipping and sea shipping.
2) We can support you from product design, drawing, structure, technices and after-sales service to solve your question timely.
3) Accept custom design; professional R&D team design the most suitable product for you.
4) Factory production capacity guarantees your order delivery.
9.Factory Profile
10.Certificate
