20W High Power WIFI Signal Amplifier
US$ 430 - 460
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SH
Model Number:
I20W WIFI signal amplifier
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Good Product Airplay Miracast EZcast DLNA Push2TV Screen Switcher HDMI TV RecieverUS$ 20 - 25MOQ: 100 Pieces -
Wifi Extender Dual Band With Power Plug 300MUS$ 1 - 27MOQ: 10 Pieces
-
Power Plug 300M Dual Band Wifi ExtenderUS$ 1 - 26MOQ: 10 Pieces
-
Wifi Repeater Dual Band With Power Plug 300MUS$ 25 - 28MOQ: 10 Pieces
-
Dual-band 300M WIFI RepeaterUS$ 25 - 28MOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
SH
Model Number
I20W WIFI signal amplifier
Specifications
WIFI signal amplifierSupported Standards: IEEE 802.11 b/g/n
Frequency Range: 2.4~2.5GHz;
Launch Output: 43dBm(20Watt)
Specification
WIFI signal amplifier
| Model Name | SH-i20W |
| Operating Range | 2.4~2.5 GHz |
| Working Pattern | TDD |
| Launch Output | 43dBm (20W) |
| Launch power input | Min 0dBm Max 27 dBm |
| Transmit Gain | 25 dB typical |
| Receive Gain | 22 dB typical |
| Small Signal Gain Flatness | +- 1dB |
| Noise Figure | less than 3.5 dB typical |
| Switch Time delay | less than 1 us |
| AGC Control | yes |
| Coupling | N-K Female (50 Ohms) |
| Operating Temperature | -25ºC to 55ºC |
| Transmitter indicator | Red |
| Receiver indicator | Green |
| Color | Silver gray |
| Dimensions | 152 x 131 x 26 mm |
| Weight | 740g |
| Package | White box |
| Package included | 1* 20W wifi amplifier 1* 24V 2A powre adapter |
| Gross Weight | 1.2kg |
| Working Voltage | 24V/2A |
| Warranty time | 1 year |

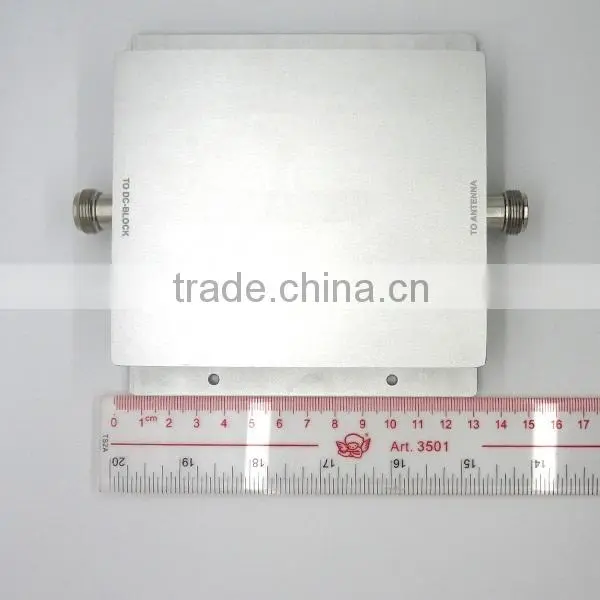

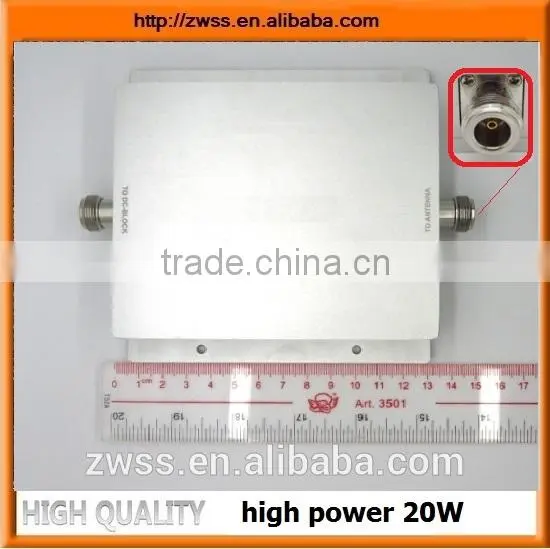

Detailed Images
WIFI signal amplifier
Size & Packaging
WIFI signal amplifier
| Dimensions | 152 x 131 x 26 mm |
| Weight | 740g |
| Package | White box |
| Package included | 1* 20W WIFI signal amplifier 1* 24V 2A powre adapter |
| Gross Weight | 1.2kg |
Warranty & Delivery
We provide wifi signal amplifier 12 months maintenance warranties.
Items can be replaced during the first month or maintained for the 1st year.
Buyers are only responsible for the return shipping fees for warranty items.
WIFI signal amplifier advantage:
Supported Standards: IEEE 802.11 b/g/n
Frequency Range: 2.4~2.5GHz;
Launch Output: 43dBm(20Watt) for exstra large zone.
