CE ROHS high quality asynchronous single color tri-color rgb remote control RF led controller
1. INTRODUCTION
LIYI display is a Chinese company which specializes in the designing, developing and manufacturing of advanced technologic optoelectronics display systems. Our many years of experience in this area allow us to guarantee the quality and safety of our products, the philosophy of our company is the continuous improvement in the development and design of our products. Promote your products with LED displays!!!
2. LED pharmacy cross generally technical Parameters
1. LED chip size | red:9mil,green/blue/amber/white:12mil |
2. View Angle | H:120°(+60/-60),V:60°(+30/-30) |
3. Viewing Distance | ≥20m |
4. Input voltage (AC) | 110V~240V |
5. Input power frequency (Hz) | 50HZ~60HZ |
6. Control Mode | Asynchronous |
7. Drive Mode | 1/4 scan constant current (1200×1200 is static scan) |
8. Communication Mode | RS232,RF Wireless, WIFI(Optional)--- The default configuration(RF Wireless) |
9. Control distance | RS232:<100m,RF Wireless:<800m |
10. Display content | Animation/Graphics/Word/Time/Temperature |
11. Languages | English, French, Spanish ,Greek,Russian and Italian |
12. Operating system | Windows (2000/XP/Vista/Win7) |
13. Frame Material | Steel(cold rolled iron) frame.500*500,800*800,1000*1000 can do aluminum frame |
14. Working Temperature(°C) | -45~+65(for working) |
15. Working Humidity | 10%~95%RH |
16. Life span | 100,000 hours |
17.Certificate | CE-EMC, CE-LVD, ROHS |
3.Types
led pharmay cross
Model | Control area(pixel) | Control color | Gray scale |
LIYI - C1(2D) | 48×48 | Single color, pure green, green with two lines blue fringe, red with two lines green fringe… | 1 |
LIYI - C2(2D) | 48×48 | Two color(bi-color), red+green+yellow or green+blue+cyan | 1 |
LIYI - C3(2D) | 48×48 | Full color, red+green+blue+yellow+cyan+ purple+white | 1 |
LIYI - C4(2D) | 64×64 | Single color, green with 8 lines blue fringe or red with 8 lines green fringe or full green… | 1 |
LIYI - C5(3D) | 48×48/96×96 | Full color, 256 grade gray scale for each color(red,green,blue), Can select to control pure green with 256 grade gray scale,support WIFI | 256 |

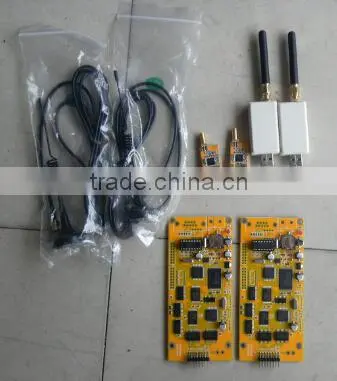

RF wireless modules | Include 1pcs sender and 1pcs receiver, MAX communication distance 800m | ||
Power supply 200W | Input(AC):220V/50HZ~60HZ,Output(DC):5V40A,with CE certificate. | ||
Power supply 300W | Input(AC):220V/50HZ~60HZ,Output(DC):5V60A,with CE certificate. | ||
led sign/display
1.LED moving sign controller(Asynchronous) | |||
Model | Control area(pixel) | Output interface quantity | Communication Mode |
LIYI-A2 | 320*32 or 640*16 | hub08--1, hub12--2 | RS232 or RF wireless |
LIYI-A3 | 256*64 or 512*32 or 1024*16 | hub08--1, hub12--4 | RS232 or RF wireless |
LIYI-M2 | 1280*32 or 640*64 | hub08--2, hub12--4 | RS232 or RF wireless |
LIYI -C2 | 2048*32 or 1600*64 or 800*128 | hub08--4, hub12--8 | RS232 or RF wireless |
2.LED video display controller(Asynchronous) | |||
Model | Description | ||
LIYI-C10(simple grayscale card) | Control area:1024*64dots,Grayscale:4096grade,LAN&U-disk communication, Onboard Flash:500MB,Animation format:gif, Picture format:bmp/jpg/gif/png/ico, | ||
LIYI-M20 (multi-media card) | Control area:320*128dots,Grayscale:4096grade,Communication:LAN/Internet/GPRS/RF/3G/U-disk,Onboard Flash:500MB,Video format:support AVI/WMV /MP4/FLV/VOB/MOV…,Animation format:gif/swf, Picture format:bmp/jpg/gif/png/ico, Support Temp.&Hum.sensor, remote control, Brightness automatic adjust | ||
4.Software Profile
5.DETAIL SHOW
6.CERTIFICATE
