Home > Products > Full color LED display > indoor p7.62 ali led full color display factory price liyi xxx video display

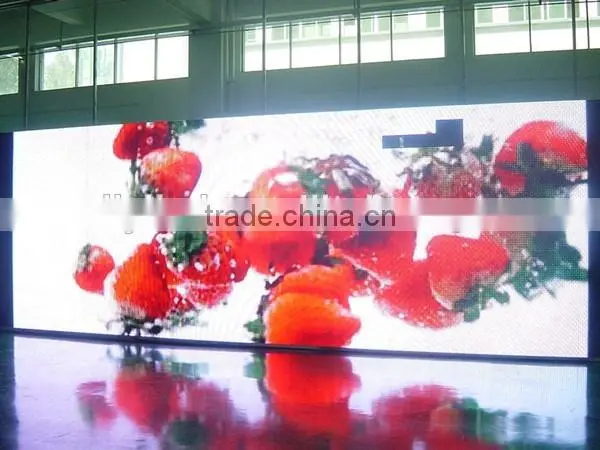

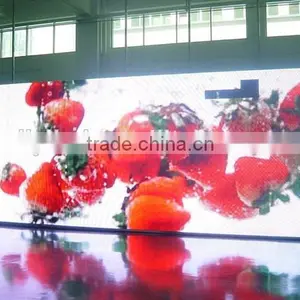

indoor p7.62 ali led full color display factory price liyi xxx video display
- 200 Square Meter / Square Meters per Month
- Shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
Place of Origin | Guangdong, China | Brand Name | LIYI optoelectronic co ltd | |
Model Number | LIYI-P7.62-ID-FC | Usage | Indoor | |
Tube Chip Color | Full Color | Display Function | Video | |
Pixels | Other, P7.62 | Screen Dimension | 4392x2196mm |
Wooden box or airfreight case according to customers' request.
Product Description
indoor p7.62 ali led full color display factory price/full xxx video high resolution
1.Most reliable manufacture led display
2.Best quality LED display
3.led display signs
4.two years warranty
1.Production Description for led display signs:
2 years warranty
Module size | Pixel pitch | Pixel configuration | Scan method | Brightness | IP grade |
488x244mm | 7.62mm | 1R1G1B | 1/8 scan | ≥1100CD | IP65 |
-high brightness, good stability,
-rich colors, large area display, long life
-asynchronous or synchronous control
Features:
17222 pixel dots per square meter resolution
With super-high brightness LED, high contrast
High frame frequency, wider view angel
With module development and distributed scan technology, high reliability
Universal AC input / full range
IP43 protection level, indoor solution
PC synchronous or asynchronous control(optional)
Use common video play software, easy to use
2 years warranty
SPECIFICATION
Item | LIYI-ID-P7.62SMD |
Pixel pitch | 7.62mm |
Pixel density | 17222 dots/m2 |
Pixel configuration | 1R1G1B(3528SMD) |
Max brightness | 1100nit |
View angle(horizontal) | ±60° |
Gray scale | 65536 (16 bit) |
Colors | 16.7M |
Color temperature | 6500K |
Refresh rate | 3000HZ |
Contrast ratio | 4000:1 |
Frame rate | 60HZ |
Standard cabinet size | 732×732mm |
Weight | 35KG/m2 |
Cabinet resolution | 96×96 pixel |
Cabinet material | Steel (cold rolled iron) or Aluminum (optional) |
Protection level | IP43 |
Max power consumption | 800W/m2 |
AVE. consumption | 200W/m2 |
Drive Method | 1/8 scan, constant current |
Malfunction dot rate | 0.1≤‰ |
Control mode | PC synchronous or asynchronous control(optional) |
Input voltage(AC) | AC90—240V |
Operation voltage | DC5V |
Operation temperature | -20~50℃ |
Operation humidity | 10%~90% |
MTBF | 1000h |
Life span | 100000h |
Outdoor full color display refers to the all-weather LED display applied in outdoor complex environment, connecting optics, microelectronics, information processing, mechanics and other technologies as a whole. The main application areas: Government Plaza, leisure square, Cultural Square, large entertainment plaza, commercial center, advertising- information publish board, commercial street, railway stations, airports, bus stations, subway, shopping malls, supermarkets, hospitals, hotels , education system, bank, securities markets, auction houses, shopping centers, media centers etc.
LED display types:
Type | Dot Density(dots/m2) | Cabinet Size | Brightness(cd/m2)
| Max Power(w/m2) | Weight( kg/m2) | Cabinet Material |
LIYI-OD-P6 | 27777 dots | 768×768mm | ≥6000cd | 1000W | 55 kg | Simple steel(Alu)cabinet, standard steel(Alu)cabinet |
LIYI-OD-P6.67 | 22500 dots | 640×640mm | ≥6000cd | 900W | 45 kg | standard steel(Alu)cabinet, die-cast Alu cabinet |
LIYI-OD-P8 | 15625 dots | 640×640mm | ≥6500cd | 900W | 45 kg | standard steel(Alu)cabinet, die-cast Alu cabinet |
LIYI-OD-P10 | 10000 dots | 960×960mm | ≥6500cd | 800W | 65 kg | Simple steel(Alu)cabinet, standard steel(Alu)cabinet |
LIYI-OD-P16 | 3906 dots | 1024×768mm | ≥8500cd | 1000W | 60kg | Simple steel(Alu)cabinet, standard steel(Alu)cabinet |
LIYI-OD-P20 | 2500 dots | 1280×960mm | ≥6500cd | 800W | 55 kg | Simple steel(Alu)cabinet, standard steel(Alu)cabinet |
LIYI-OD-P16 energy-saving | 3906 dots | 1024×768mm | ≥8500cd | 500W | 60 kg | Simple steel(Alu)cabinet, standard steel(Alu)cabinet |
2.Products Shows for led dispkla signs:
Function:
-display content: text, pictures, video, and can receive several kinds of video signals like TV, VCR, DVD etc.;
-diverse cabinets: column mounted, hanging mounted, place installation, lifting installation etc.
Asynchronous control mode: cable, U disk (USB), Wireless (WIFI), LAN, Internet, mobile networks (3G/4G), 8 control modes (can be freely selected according to the actual scene). As follows:
Synchronous control mode: synchronous convenience control and synchronous supersized-screen control (can be freely selected according to the scene). As follows:
3.Certification for led display signs:
LED display installation reference:
4.Packing & Shipping for led display signs :
5.Our services for ld display signs:
1.Two years warranty
2.CE & RoHS certificated
3.30% deposit before products,70% balance to be paid before delivery
6.Company information:
SHENZHEN LIYI OPTOELECTRONIC Co., Ltd is a Chinese high-tech optoelectronics display enterprise which specializes in the research, development, production, sales, construction and service.
Specializing in LED field since 2009, we took innovation in the market and product classification and innovative products already have strong core competitiveness. LIYI Tech established strict quality control over all of LED components, LED display and the whole set of video systems, devoting to provide the most suitable indoor or outdoor display system solutions from design, manufacturing, installation and maintenance.
7.FAQ:
1.Any question please feel free to contact Sherry Tang
Skype:sherry201222
Wechat: tangxiujiao
Linkedin & Email : sherry at
2.Products also can be customsized
Company Profile

SHENZHEN LIYI OPTOELECTRONIC Co., Ltd is a Chinese high-tech optoelectronics display enterprise which specializes in the research, development, production, sales, construction and service. Specializing in LED field since 2009, we took innovation in the market and product classification and innovative products already have strong core competitiveness. LIYI Tech established strict quality control over all of LED components, LED display and the whole set of video systems, devoting to provide the most suitable indoor or outdoor display system solutions from design, manufacturing, installation and maintenance. Our products are widely used in postal, telecommunications, financial securities, electricity, transportation, schools, hospitals, supermarkets, hotels, weather, real estate, sports, stage, restaurants, entertainment, theater, municipal advertising and government departments etc., and exported to Europe, Asia, North America^, with projects across several provinces in Mainland. Adhering to the business philosophy of "customer first, pragmatic and efficient ", we believe that technology will create the future, continually play our strengths to win the trust of users with leading technology, excellent quality, exquisite craftsmanship and sincere service to seek goodness and beauty. Main products: LED pharmacy cross, LED indoor display, LED outdoor display, LED single color display, LED moving sign, LED two-side display, LED Banner sign, LED window screen, LED flooring advertising screen, LED display accessories and LED lighting. Company insist in the core value of "honesty, dedication, win-win basis and transcend" to provide customers with quality service and sincerely thanks to friends' trust around the world!
