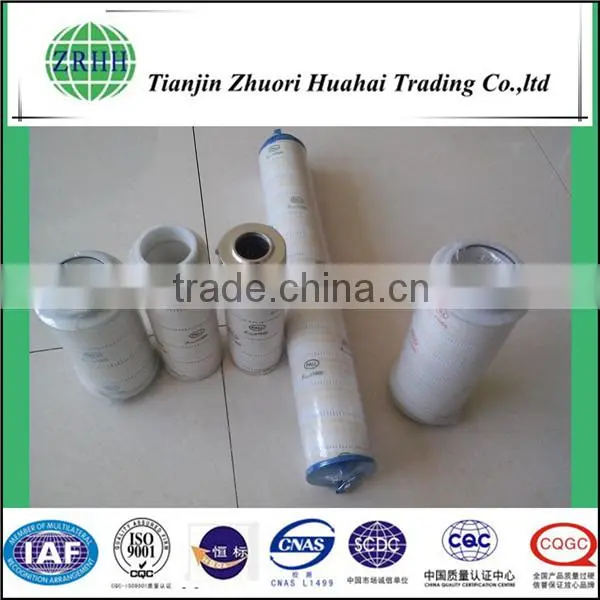

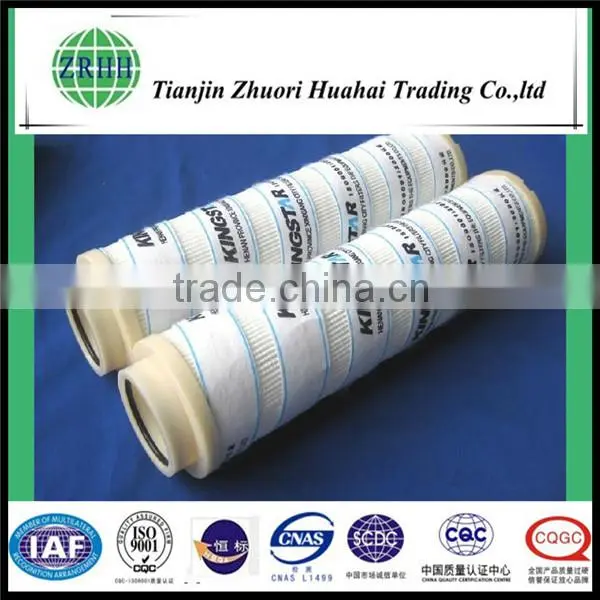

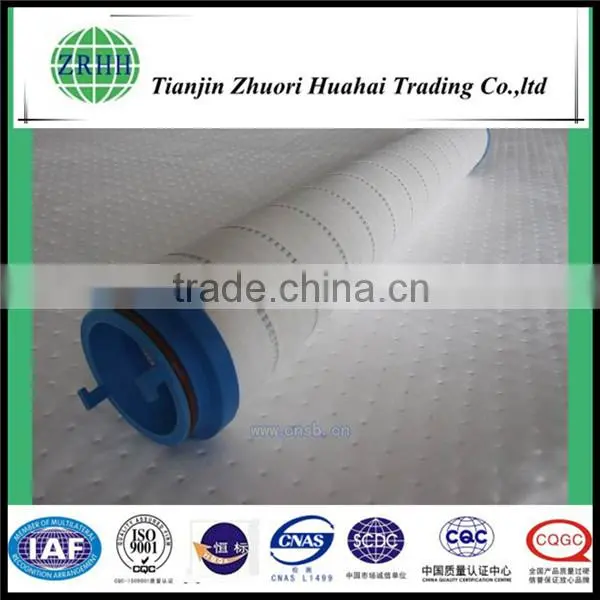

Help CenterCompressed Gas Oil Removal in Addition to the Water Using Pall Hydraulic Filter HC2235FKP6H
Related Products
-
Manufactured Basket Water Filter Wedge Wire Screen Stainless Steel FilterUS$ 10 - 280MOQ: 5 Pieces -
High Strength Basket Strainer Filtering Water CartridgeUS$ 8 - 250MOQ: 10 Pieces
-
For Water Well Detection Equipment Parts and Mesh Cartridge Structure FilterUS$ 4 - 200MOQ: 10 Pieces
-
Black Color Cartridge and Stainless Steel Material Filter Cartridge MeshUS$ 4 - 200MOQ: 10 Pieces
-
Flange - Mounted Filter Type and Stainless Steel Customized Filter BasketUS$ 4 - 250MOQ: 10 Pieces
PALL industrial filter No meaning, for example:
1. Low pressure series:
HC9600FUP13
1234567
1-- Series
2-----diameter dimension of the filter
96 - φ78.5 × φ43
91 --- φ70 × φ32.5
89 --- φ96 × φ56
9021 - φ45 × φ25
2235 --- φ84 × φ48
8300 - φ152 × φ10
48314 --- φ152 × φ95
8400 --- φ152 × φ83
3 --- Pressure
00 --- Low,, filter to withstand pressure 2MPa,
01 --- high pressure filter to withstand pressure 21MPa,
4 --- β ratio and retaining net
D - β≥200 inside and outside with a metal grille
U - within β≥75 metal grille
K - β≥200 metal grille inside and outside, the inside of non-metallic sheath filter
5 --- filtering accuracy
Z 1 micron
P 3 microns
N 6 micron
S 12 microns
T 25 micron
R 40 micron
6 --- filter length
4 - (45/8 ") is equivalent to 118mm
6 --- (51/2 ") is equivalent to 140mm
8 --- (83/16 ") is equivalent to 208mm
10 - (101/8 ") is equivalent to 256mm
13- (1228/32 ") is equivalent to 328mm
15- (1411/16 ") is equivalent to 373mm
16- (167/8 ") is equivalent to 428mm
26 - (255/8 ") is equivalent to 652mm
39--385 / 8 ") is equivalent to 981mm
7 --- H sealing gasket NBR (black), suitable for oil. Emulsion. Marked (alkaline). Glycol, etc.
J ethylene. Propylene (purple)
P neoprene (red) acid
Z fluorine rubber (brown) temperature, acid (resistant phosphate ester hydraulic fluids, blue oil), wear
PALL filter HC9600 series filter design parameters
| Model | folds long L | fold high H | fold number N | block length S | area A | valid A | Piece of plait distance | The plait distance |
| unit | inch | inch | pcs | inch | Ft2 | Ft2 | mm | mm |
| UP4 | 4.310 | 0.560 | 80 | 5.80 | 2.68 | 2.40 | 1.84 | 1.96 |
| UN4 | 4.310 | 0.560 | 64 | 5.80 | 2.15 | 1.92 | 2.30 | 2.45 |
| US4 | 4.310 | 0.560 | 60 | 5.80 | 2.01 | 1.79 | 2.455 | 2.62 |
| UT4 | 4.310 | 0.560 | 48 | 5.80 | 1.61 | 1.43 | 3.02 | 3.92 |
| UR4 | 4.310 | 0.560 | 70 | 5.80 | 2.35 | 2.10 | 2.10 | 2.24 |
| UP8 | 7.940 | 0.560 | 80 | 5.80 | 4.94 | 4.63 | 1.84 |
1.96
|
| UN8 | 7.940 | 0.560 | 64 | 5.80 | 3.95 | 3.69 | 2.30 | 2.45 |
| US8 | 7.940 | 0.560 | 60 | 5.80 | 3.71 | 3.46 | 2.455 | 2.62 |
| UT8 | 7.940 | 0.560 | 48 | 5.80 | 2.96 | 2.76 | 3.020 | 3.927 |
| UR8 | 7.940 | 0.560 | 70 | 5.80 | 4.32 | 4.05 | 2.10 | 2.240 |
| UP13 | 12.670 | 0.560 | 80 | 5.80 | 7.88 | 7.54 | 1.84 | 1.96 |
| UN13 | 12.670 | 0.560 | 64 | 5.80 | 6.31 | 6.01 | 2.30 | 2.45 |
| US13 | 12.670 | 0.560 | 60 | 5.80 | 5.91 | 5.63 | 2.45 | 2.62 |
| UT13 | 12.670 | 0.560 | 48 | 5.80 | 4.73 | 4.49 | 3.02 | 3.927 |
| UR13 | 12.670 | 0.560 | 70 | 5.80 | 6.90 | 6.58 | 2.10 | 2.240 |
|
Note: 1.Area A-- total area = 2hnL / 144 -------- (A) | ||||||||
|
HC6400FKN13H |
HC6400FKP13H |
HC6400FKN26H |
HC6400FKP26H |
|
HC6300FKN16H |
HC6300FKP16H |
HC6400FKN8H |
HC6400FKP8H |
|
HC6300FKP8H |
HC6300FKP26H |
HC6300FKN13H |
HC6300FKP13H |
| HC2618FKPP36H |
HC6200FKN4H |
HC6200FKP4H |
HC6300FKN8H |
| HC2295FKP36H | HC2618FKN18H | HC2618FKP18H | HC2618FKN36H |
|
HC2285FKP15H |
HC2295FKN18H |
HC2295FKP18H | HC2295FKN136H |
| HC2257FKP10H | HC2285FKN12H |
HC2285FKP12H |
HC2285FKN15H |
| HC2256FKN10H |
HC2256FKP10H |
HC2257FKN6H |
HC2257FKN10H |
| HC2254FKN16H |
HC2254FKP16H |
HC2256FKN6H |
HC2256FKP6H |
| HC2253FKN16H | HC2253FKP16H | HC2254FKN8H | HC2254FKP8H |
| HC2218FKN4H | HC2218FKP6H | HC2218FKN6H | HC2233FKP6H |
| HC2217FKN4H |
HC2217FKP6H |
HC2217FKN6H |
HC2218FKP4H |
| HC2216FKN4H | HC2216FKP6H |
HC2216FKN6H |
HC2217FKP4H |
|
HC2208FKN4H |
HC2208FKP6H |
HC2208FKN6H | HC2216FKP4H |
|
HC2206FKP6H |
HC2207FKP3H |
HC2207FKP6H | HC2208FKP4H |
| HC2206FKN3H | HC2206FKN6H | HC2207FKN3H | HC2207FKN6H |
|
HC0101FKN36H |
HC0101FKS36H |
HC0101FKT36H |
HC2206FKP3H |
|
HC0101FKN18H |
HC0101FKS18H |
HC0101FKT18H | HC0101FKP36H |
| HC9800FDN16H |
HC9804FKZ4H |
HC9804FKS8H |
HC0101FKP18H |
|
HC9701FKS18H |
HC9800FKN13H |
HC9800FKS13H |
HC9800FDP16H |
|
HC9700FKZ9H |
HC9700FKS18H |
HC9700FKS27Z |
HC9701FKZ9H |
|
HC9400FKZ13H |
HC9400FKS26H |
HC9400FKN39H |
HC9650FKN16H |
| HC8400FDT39H | HC9020FKS8H |
HC9021FKZ4H |
HC9021FKS8H |
|
HC8314FKP39Z |
HC8400FKZ8Z |
HC8400FKS16Z |
HC8400FDT26H |
|
HC9800FKN4H |
HC9800FKS4H |
HC9800FKS8H | HC8314FKP16Z |
|
HC9650FKZ8H |
HC9650FKS13H |
HC9800FKZ4H |
HC9800FKP4H |
|
HC9600FKP8H |
HC9600FKZ13H |
HC9600FKS16Z |
HC9600FDS4H |
|
HC8900FKN16H |
HC8900FKP26H |
HC8900FKZ39H |
HC9020FKZ4H |
|
HC8314FKP16H |
HC8314FKP39H |
HC8900FKZ8H |
HC8900FKS13H |
| HC8304FKZ16H | HC8304FKT16H | HC8304FKS20H | HC8304FKN39H |
|
HC6500FKN13H |
HC6500FKN26H |
HC6500FKP26H |
HC7400SKS4H |
| HC6500FKP13H | HC7400SKS8H | HC7500SKS4H | HC8200FKP13H |
| HC6500FKN16H | HC7500SKS8H | HC8200FKP8H | HC8200FKN16H |
|
HC6500FKP16H |
HC8200FKN8H |
HC8200FKN13H | HC8200FKP16H |
|
HC8300FKN8H |
HC8300FKN16H |
HC8300FKN39H |
HC8300FKP39H |
| HC8300FKP8H | HC8300FKP26H |
|
UE Series
| UE319AN08H | UE319AN08H | UE319AS08H |
| UE319AT08H | UE319AT08H | UE319AT08H |
| UE319AT08H | UE319AS08Z | UE319AS08Z |
| UE319AZ08Z | UE319AN13H | UE319AP13H |
| UE319AS13H | UE319AS13H | UE319AN13Z |
| UE319AS13Z UE319AT13Z UE319AZ13Z | ||
- Packing & factory equipment
- . Transportation
- Why choose us?
1) Professional filter manufacturer, own factory ,Has a professional team .
2) Small piece of sample(even within 1sets) can be available, more details can negotiate.
3)competitive prices and timely deliver.
4) Quality guaranteed and thoughtful after-sales service.
5) Accept any quality tests.
- Trade & Market :
. be widely used in :
Hydraulic filter elements are widely applied to various industries
- How to contact us?
Skype: houxiaoyuan@outlook
Address: Room no.A711 Zheshang Buliding,Yingbin Road,Tanggu Area,Tianjin,China
