Home > Products > HYDAC filter > Return Filter Type and New Condition hydac hydraulic oil filter cartridge 0660R010BN4HC replacement

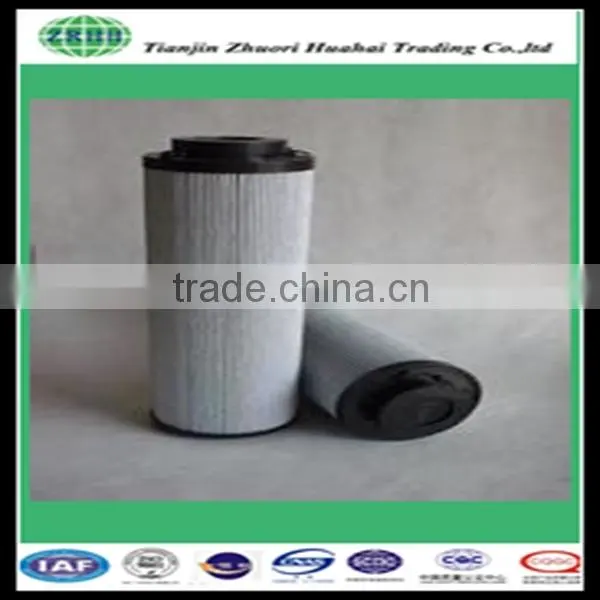

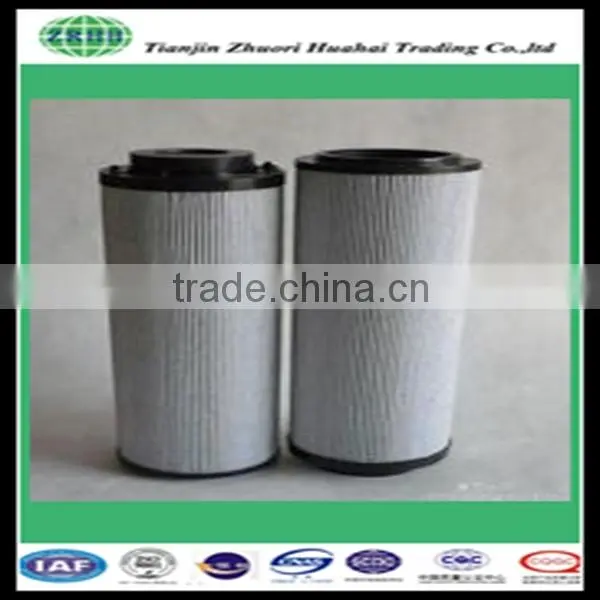

Return Filter Type and New Condition hydac hydraulic oil filter cartridge 0660R010BN4HC replacement
- tianjin China
- T/T L/C D/P D/A
You May Like
-
Cartridge Structure and New Condition Fiberglass HYDAC Oil Filter 0160D050W/HC replacement
-
High efficiency hot sale replace 0165R010BN3HC hydac filter element for protect the oil pump and other hydraulic components
-
High quality hydac filter for air compressor filtration protection 0500D020BN3HC
-
Specializing production high performance fuel recovery 0160 series HYDAC 0160R010BN/HC hydraulic oil filter cartridge
-
Gold Supplier Most Advanced replacement hydraulic pump station and oil filter for 0500D020BN/HC hydac filter
-
Hydac filter 0060R005BH3HC cross replacement element
Product Details
| Place of Origin | Hebei, China | Brand Name | hydac | |
| Model Number | 0660R010BN4HC | After-sales Service Provided | Overseas service center available |
Product Description
Advantages
♦ Folding machine, imported composite filter increases filter effective filtration area, pollutant carrying capacity.
♦ The frames are made of thicker steel plate, to meet higher pressure requirements.
♦ Different filter media with different sealing materials, sealing firmly
♦ This filter is made from glass fiber/stainless wire mesh which imported from the USA, possessing the convenient draining, large circulation area, low pressure loss, simple structure, small volume, light weight, evenly filter material amd so on.
♦ The compatibility of the filter material is suitable for general hydraulic oil filter.
♦ The filter element is supported by the either side of the solid and strong stability of filter material, which comform with the verification of ISO3724/76 hydraulic oil flowing fatigue property.

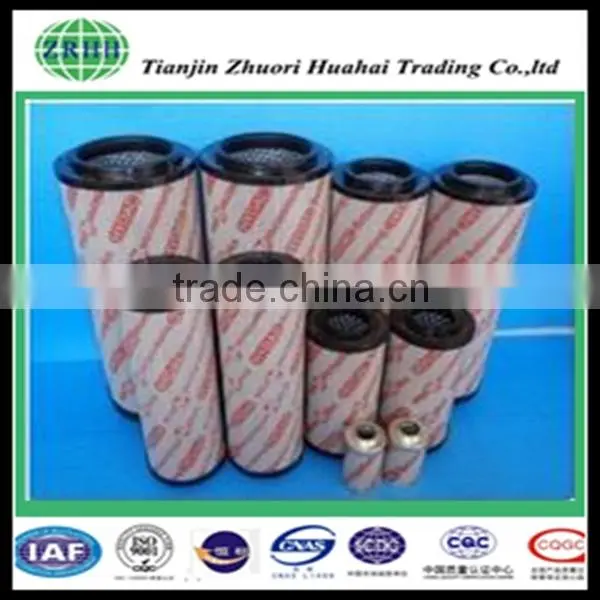

Hydac elements
| Filter material | high quality glass fiber filter |
| Filtration precision | 1, 3, 6, 12, 25...um |
| filtering ratio | >=100 X |
| Structural strength | 1.0 Mpa, 1.0 Mpa, 2.0 Mpa,21.0 Mpa |
| Use scope | hydraulic and lubrication system pressure oil filter, used to filter the pollutants in the system, ensure the normal operation of the system |
| Feature | 1.Excellent performance 2.High filtration efficiency 3.Prompt Delivery 4.Simple structure,Top quality 5.Under ISO9001-2000 quality certificate 6.The best Craftsmanship 7.International Approvals 8..Pre air filter manufacturer 9.Low initial pressure drop |
| flow (SIZE): | Pressure | Pressure | filter ( PS --- Paper) |
030 ---- 30L / min 060 ---- 60L / min 0110 --- 110L / min 0140 --- 140L / min 0160 --- 160L / min 0240 --- 240L / min 0330 --- 330L / min 0480 --- 480L / min 0500 --- 500L / min 0660 --- 660L / min 0950 --- 950L / min 1300--1300L / min 2600--2600L / min 3900--3900L / min | D ---- high pressure, 100bar 210bar 420bar R ---- Low, 16bar 25bar 30bar DN ------ imitation products of other companies | 001 --- 1 003 --- 3 005 --- 5 010 --- 10 020 --- 20 025 --- 25 | V --- 4 + 4 sintered felt W --- metal mesh BN - β-micron N filter BH - β-micron filter H Y --- polyester filter |
Test Certification
♦ ISO 2941 Collapse & Burst Resistant
♦ ISO 2942 Material Compatibility with Fluids
♦ ISO 2943 Material Compatibility with Fluids
♦ ISO 3724 Flow Fatigue Characteristics
♦ ISO 3968 Pressure Drop vs. Flow Rate
♦ ISO 16889 Multi-pass Performance Testing
Raw Materail
We Serve You As
Factory show
Package and Transportantion
Contact Us
- Tianjin Zhuori Huahai Trading Co., Ltd.
- Contact nameyue chen Chat Now
- Phone86-022-25612726
- AddressRm. 711, Zheshang Mansion, Yingbin Road
