Best selling trucks and trailers in Asian
- 10 Set / Sets per Month
- Tianjin
- T/T
- Sedan SUV transport semi-trailer export semi-trailer Russian European style semi-trailer
- Low flatbed semi-trailer Hydraulic ladder semi-trailer Automatic low flatbed export trade
- Exporting trailers to Russia European style car transport Semi trailer price
- Multi axles modular low bed semi trailer
- AUTONE wingspan van semitrailer
- Container Semi Trailers
Product Details
Type: | Semi-Trailer | Material: | Steel | Certification: | Other, ISO, BV |
Size: | 12391*2490*2965mmmm | Max Payload: | 39800kg | Place of Origin: | Henan, China |
Brand Name: | Yukun | Model Number: | THT9402TJZ |
Product Description

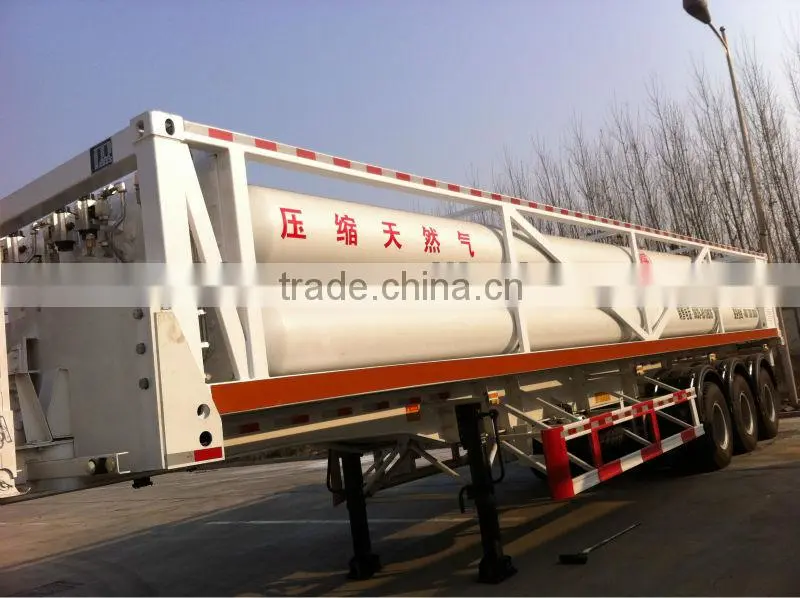

Best selling trucks and trailers in Asian
CNG trucks and trailers mainly consists of five parts: trailer, framework, large-cubage seamless steel cylinders, fore safety cabin and back operation cabin. CNG trucks and trailers are the gas source of CNG filling substation. It can be called CNG trailer truck or CNG tube trailer as well, playing a important role during the whole transportation. There are burst disks on the fore cabin which form safety cabin. And there are inlet and outlet tubes, thermometer, blowdown pipes, pressure meter, quick-connect joint and burst disks on the back cabin which form operation cabin.
Its technology principle is simple and it can save space. Features of semi trailer are as follow:
s Standard: ISO11120:1999
s Safety valves: Imported top class parts are adopted;
s Standard corner fittings and framework for container, easy transport;
s Large storage volume but less joints, valves and tube quantity to enable safety operation;
s Seamless steel tubes and close-spinning technology are adopted to enhance air tightness;
s Advanced production technology, sophisticated equipment and strict examination system.
s Size: 12391*2480*1565mm, it can be loaded on all standard trailers home and abroad and assure the safe and steady transportation;
Frame Sketch of trucks and trailers:
Main Technical Characteristic of trucks and trailers:
Item | Data | Item | Data | ||
Whole container | Whole Equipment Weight | 30174kg | Gas cylinders | Working Pressure | 20 MPa |
Filling Weight | 3610kg | Working Temperature | -40°C~60°C | ||
Total Weight | 33784kg | Main Body Material | 4133 X | ||
Working Pressure | 20MPa | Water Volume | 2.25m3 | ||
Working Temperature | -40°C~60°C | Cylinder Qty | 10 | ||
Filled Medium | CNG | Total Volume of Gas Cylinders | 22m3 | ||
Airtight Test Pressure | 20 MPa | Hydraulic Test Pressure | 33.4 MPa | ||
Filling Gas Qty | 5550Nm3 | Outline Sizes (outsidediameter×wall thickness×length) | Φ 559×16.8×10950mm | ||
Outline Sizes (length×width×height) | 12192×2438× 2000mm | ||||
Burst disk | Burst Pressure | 33.4MPa | Type | ≥Φ22 | |
Whole Trailer | Total Weight | 6800kg | Wheelbase | 7160+1310+1310 | |
Max laden capacity | 39800kg | Whole Trailer Outline sizes (length×width×height) | 12391×2480×1565 | ||
Trailer Type | THT9402TJZ | Tyre | 11.00R20 |
