YK high safety factor CNG 8 tubes cng trailer truck
| Technical parameter table of cng trailer truck | ||||||||||||||||||||||||||||||
Main material and equipment of cng trailer truck chassis:
|
| Advantage of cng trailer truck |
|

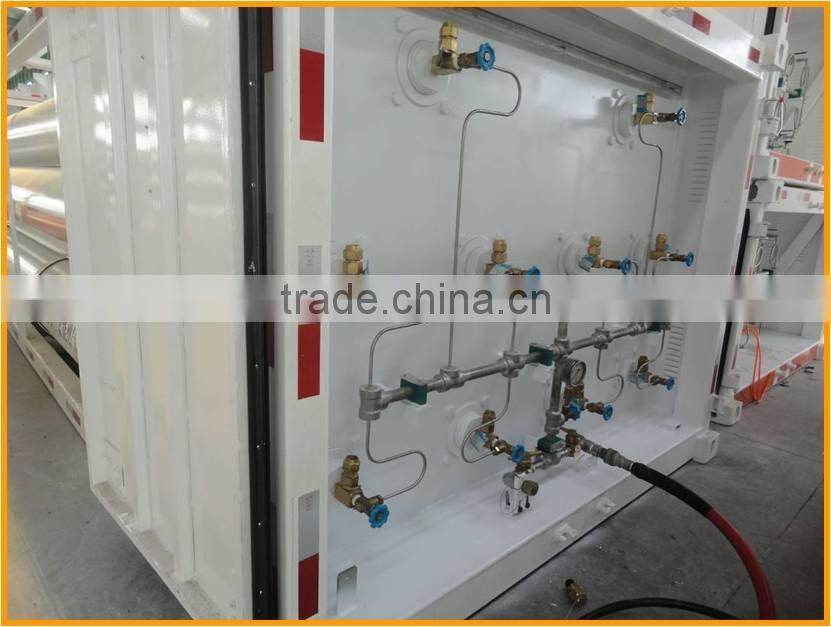

CNG long-tube cng trailer truck mainly consists of five parts: trailer, framework, large-cubage seamless steel cylinders, fore safety cabin and back operation cabin. Both ends of the large-cubage seamless steel cylinder have machined outside and inside screw threads. The outside screw threads of both ends connect with the setting flanges. The setting flange is fixed on the supporting plates of both ends of framework by bolts. Screw the end plugs into the inside threads of the cylinder mouth. Connect tube fittings with the end plugs. There set burst disks on the fore cabin, forming safety cabin. There set inlet and outlet tubes, Blowdown tubes, thermometer, pressure gauge, quick-connect joint and burst disks fitting on back cabin, forming operation cabin.
CNG long-tube cng trailer truck is the gas source of CNG filling sub station. It also can transport CNG for the civil gas system. It is an effective supplementary method to the pipe conveyance of gas. Its technology is simple and it occupies small ground. It has the following traits: 1. Import valves with high quality; 2. Standard corner fittings and framework for container, easy transport. 3. The drain contamination design may easily blow off accumulated liquid. 4. Less piping and connecting lower the danger of leakage. 5. Less tube, less joint, large pipe size, small flow resistance, fast filling capacity. 6. High initial investment, low operating and maintenance cost. |
| Payment Terms |
|
| Packing of cng trailer truck |
|
| Why choose perfect cng trailer truck |
|
|

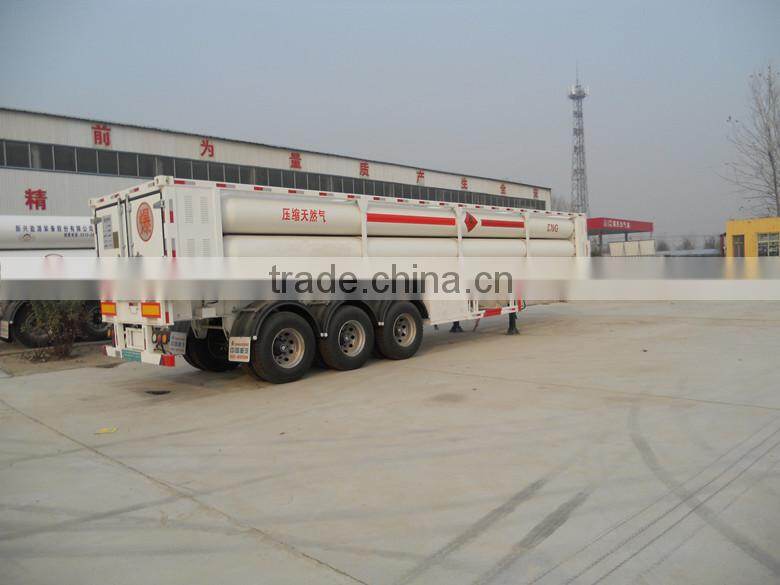

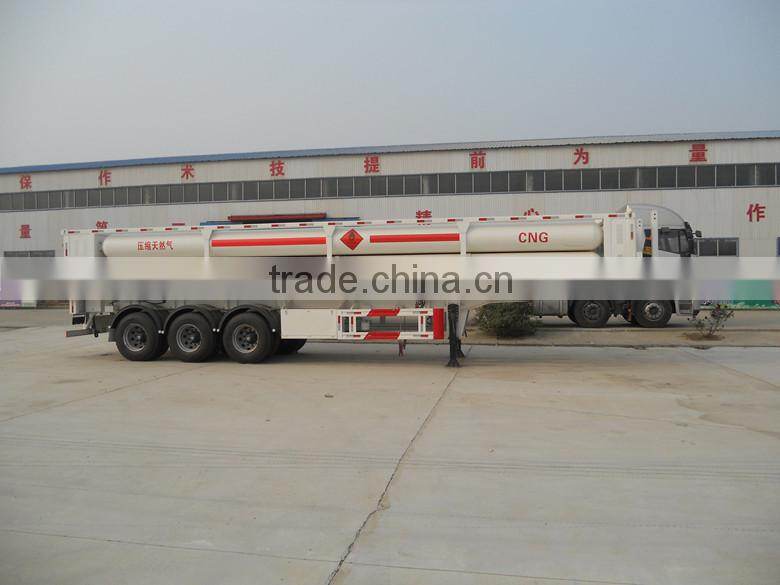

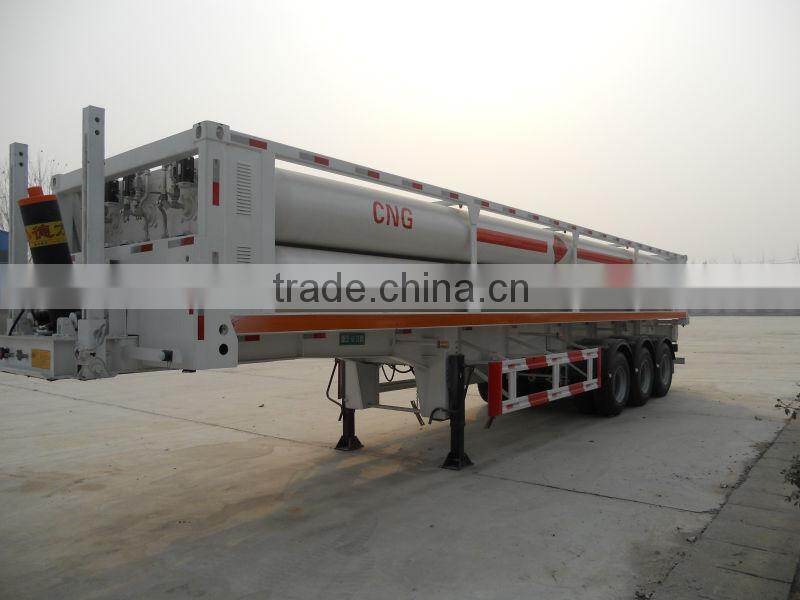

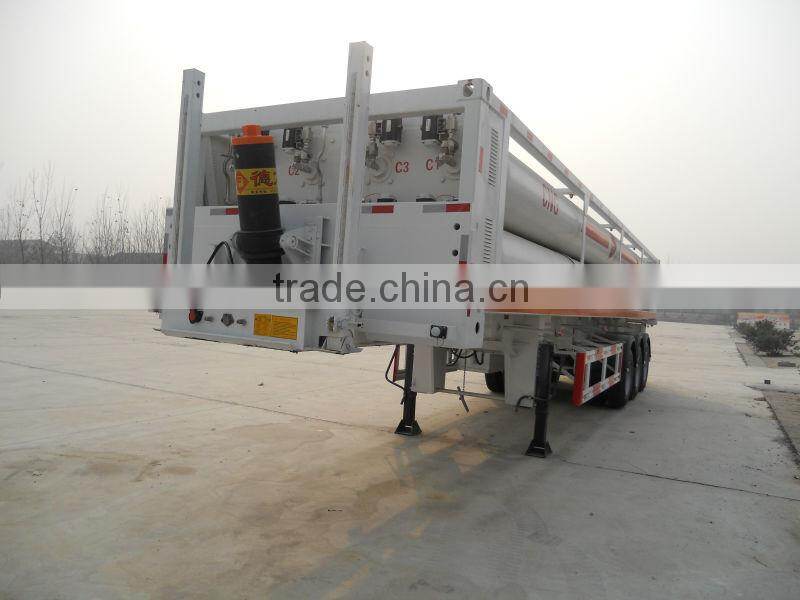

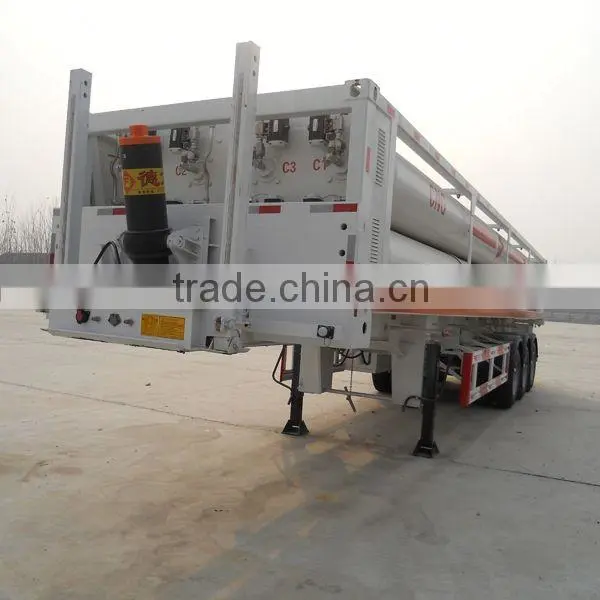

| Photos of cng trailer truck |
|
|
