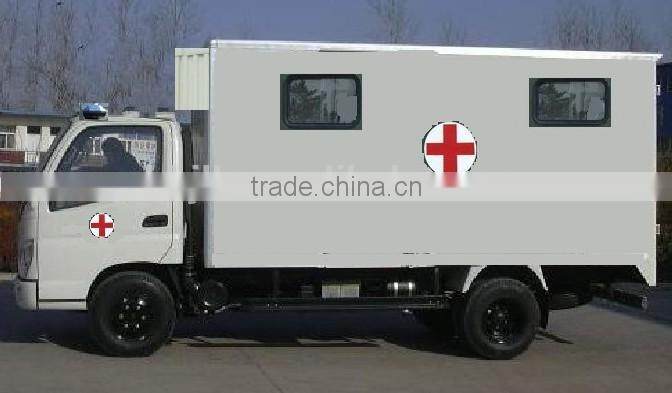

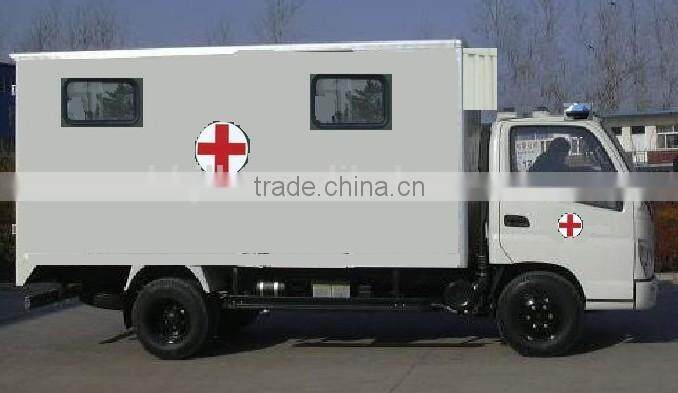

Dongfeng 5053T 4x4 off Road Ambulance Truck SL

Model

EQ5053T 4x4 off road ambulance truck

load weight(kg)

3000

curb weight(kg)

5000

max gross weight(kg)

8000

Overall dimension(mm) L*W*H

6000x2350x3400

Cabin overall dimension(mm)

3500x2105x2200

wheelbase(mm)

3300

wheel tread front/rear (mm)

1770/1602

approach/departure angle(°)

26/19

clearance from the ground(mm)

200

Engine model

YC4D120-33     120hp

engine type

Inline four-cylinder four stroke water-cooled diesel engine

Displacement(ml)/power(kw)

4212/90

max.tourque(N.m)

350

bore diameter/stroke(mm)

115X108

fuel sort

diesel

engine manufacturer

Cummins diesel engine co

top speed(km/h)

90

climbing capacity(%)

28

brake distance(m)

8

mini.turning diamenter(m)

16

fuel onsumption(L/100km)

205g

axle number

2

leaf spring (front/rear)

11/13+8

tyre specification

8.25-20-14

Tire number

6 pcs

transmission

manual 5 speed

Brake system

spring

front axle

2.8T 4*4 ,main redcuction ration 6.33

rear axle

8T, main reduction reation 6.33

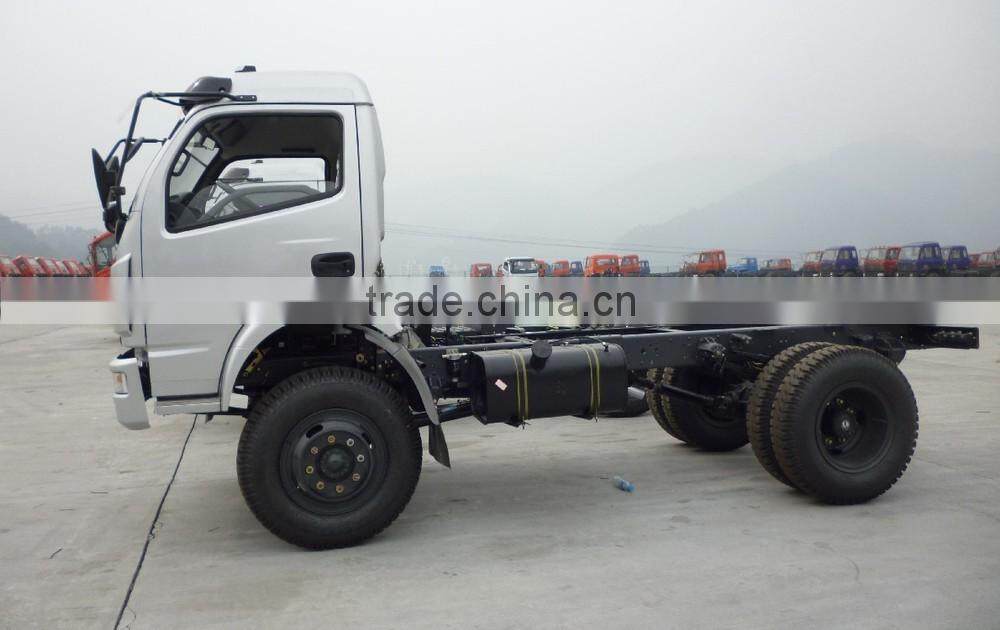

chassis frame section

mm

cab type

single cab

Driver cab passengers

3

Air conditioner

With air conditioner

Vehicle colour

According to customer’s request

function

The transported type emergency ambulance

configuration

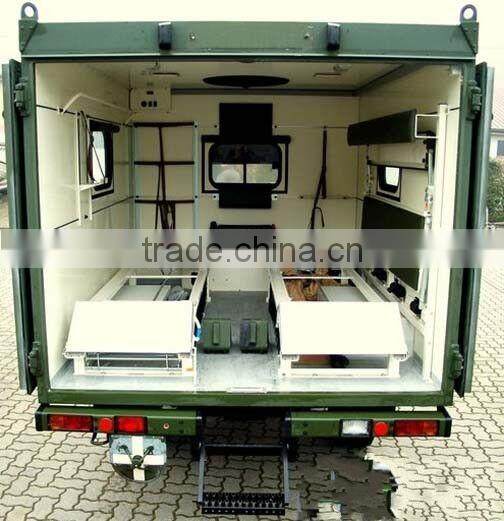

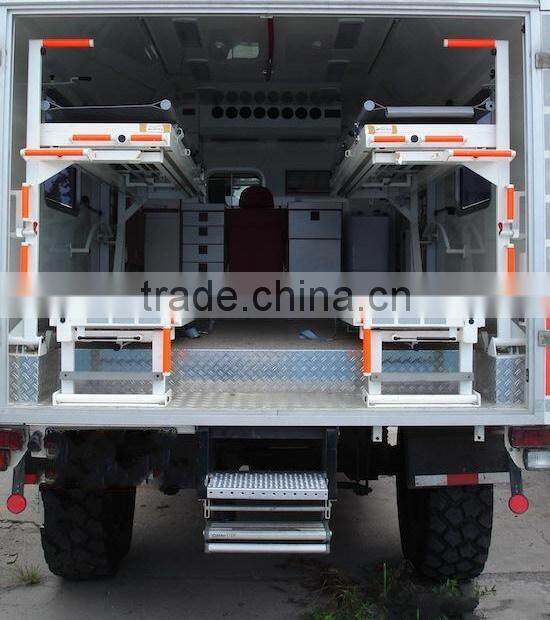

The transported person cabin total of four beds, flat-topped, the body appearance ambulance logo, top with 100W emergency blue long row of warning lights and sirens up and down; Cab and first aid compartment with partition closed separated, the first aid cabin sliding window partition curtain, the right side of the first aid cabin with two single reclining beds and seaty belt , with two reclining beds and seat belts on the left, with a simplified hand stretchers 4 pieces, ceiling,The height rear illuminating lights, stainless steel dirt tube racks, fire extinguishers, ceiling infusion hook, the interior pavement ambulance ambulance PVC cleanly floor plastic sheet.
