TP20D SPD 20kV Surge Protective Devices With LED Indicator IP65 Lightning Protector

 TP20D SPD 20kV Surge Protective Devices with LED Indicator IP65 Lightning Protector

TP20D It is especially suitable for protecting LED street lights from damage caused by lightning impact.

It is used for surge protection of commercial lighting power sources such as

street lighting (ClassI ClassII), landscape lighting, and surge protection

for power ports such as security, eletronical appliances, and sockets.

Nominal discharge voltage : 20kV, 1.2/50μs

Maximum discharge current: 20kA, 8/20μs

Valtage: 110-277VAC

Ip65 waterproof and dustproof.

Outer Sheels Material 94-V0 Grade Shells.

Screw Hole M4.

All the components inside meet certification UL &CE& RoHS Approved.

TP20D:with led indicator to tell you if the SPD workds or not.

Warranty 1 Years

Size: 0.81*0.38*0.16cm(Ultra thin)

Thermally stable trip device

Fault-indication: Lights on-normal
Lights off-failure

Advantages:

Large flow /   Quick response  /  Safe and convenient

Flame retardant material, multi-level protection, safe and reliable, lightning protection, rigorous structure, stable performance

How much do you know about the dangers of lightning strikes?
The high-voltage effect of lightning current can generate impulse voltages of up to tens of thousands of volts. Such a huge voltage hits electrical equipment instantaneously, enough to break down network equipment and cause a short circuit. However, it leads to direct disasters such as burning and explosion.

TP20D has a fully sealed enclosure that is fire, water, dust and IP65 rated.

The lightning protection device adopts full mode protection, UVT technology,

and had leakage current and follow current interruption function.

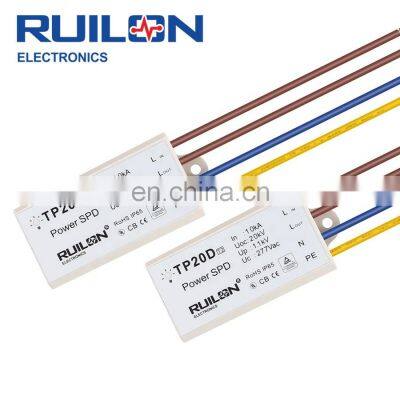

The product is small and comes with L, N and PE cables for easy instation and application,

the product's maximum protection lightning current is 20kA,

which can withstand 20kV surge voltage shock.

Smart Street Light System
Roadway lighting
Landscape lighting
Car charging pile
Security monitoring system
Lighting drive power

Applications:

**Outdoor and Commercial LED Lighting protection

**Roadway lighting protection

**Traffic lighting protection

**Digital signage protection

**Secuiity power supply protection

**Wash wall lighting protection

**Parking garage / lot lighting protection

**Flood lighting protection

**Tunnel lighting protection

**Street Lighting protection

Benefits:
• Maximize the Lifetime Value of LED Indoor & Outdoor Lighting Applications
• Lower Maintenance Costs
• Peace of mind on Product Performance

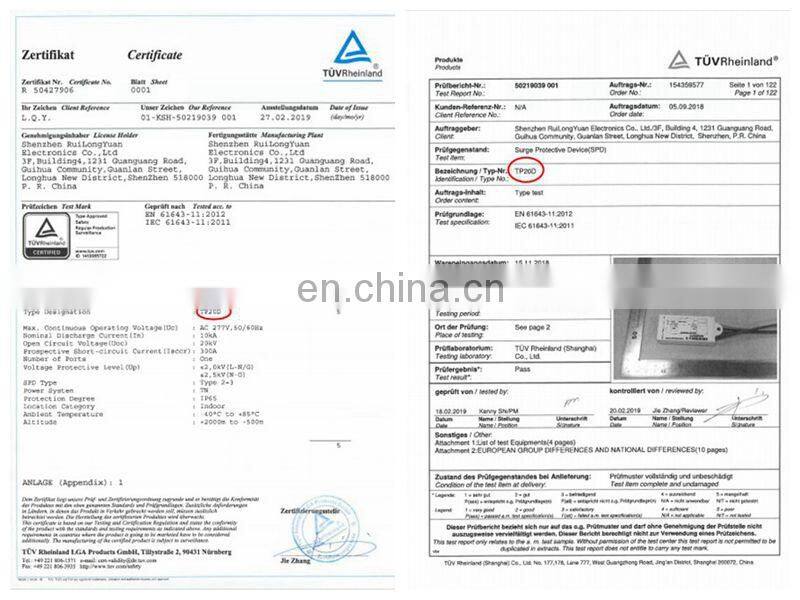

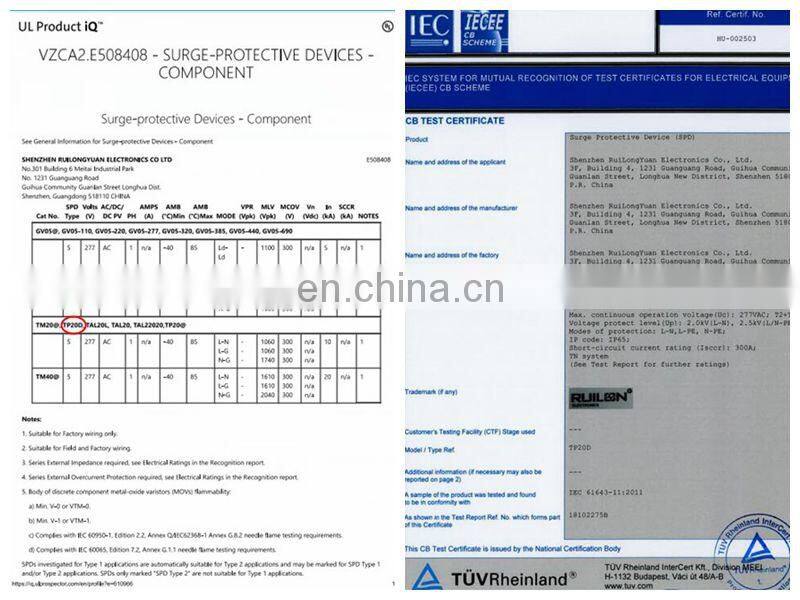

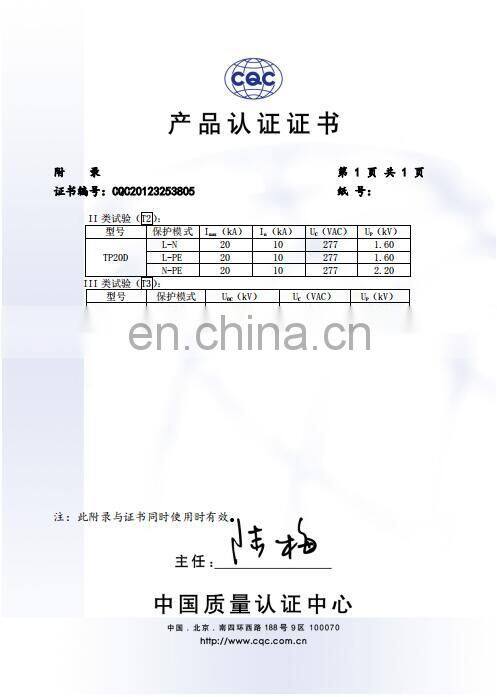

Product Certificate(TUV, UL, CE, CB, CQC):

FAQ:

Promises:

The manufacturer promises that during the warranty period, if our products have any defects, we will apply for a free replacement for you. We are sincere to every customer and our service is very good. If you have any questions, you can call our customer service immediately. Until you are satisfied with our sevice.

Contact us:

Ruilongyuan Electronics Co., Ltd. We are a manufacturer of electronic components in China, the brand is RUILON, the ex-factory price, and there is no middleman. New original, Price and quality are guaranteed. if you are interest, please contact us at any moment!

Main Products:
Transient Voltage Suppressors(TVS)
Thyristor Surge Suppressors(TSS)
Protection Device TVS/ESD Arrays
Glass Gas Discharge Tubes (GGD)
Positive Thermal Coefficent (PTC)
Metal Oxide Varistors (MOV)
Surge Protective Device (SPD)
