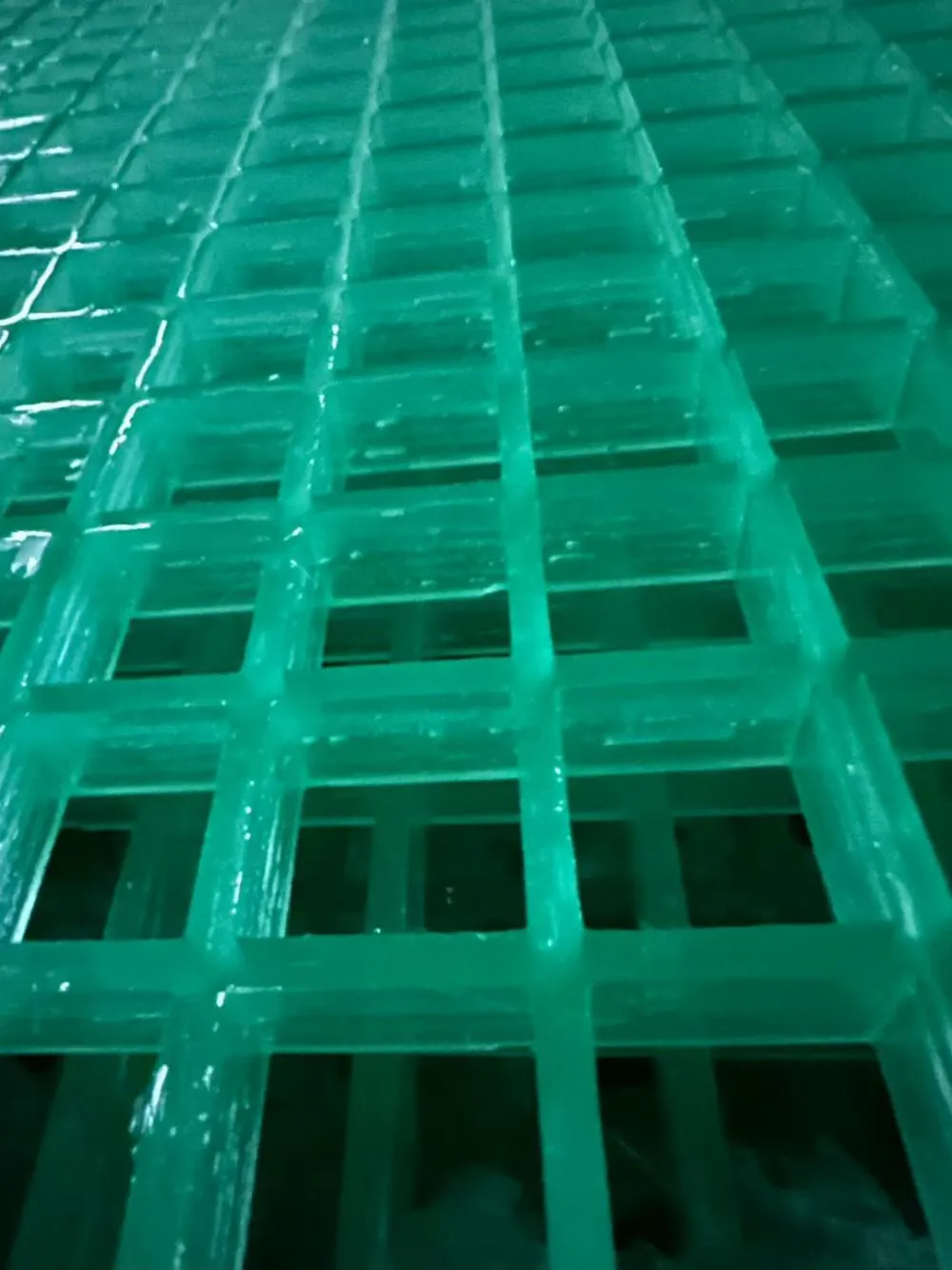

Help CenterFRP Molded Grating for Bridge Walkways - Corrosion Resistant, High Strength, Low Maintenance
Product Spotlights
Related Products
-
Pultruded FRP Composite Grating for Pedestrian Decking - Fiberglass GRP Walkway PanelsNegotiableMOQ: 300 Blades -
FRP Plastic Grating With Gritted or Concave Surface - Slip-Resistant Fiberglass CompositeNegotiableMOQ: 300 Blades
-
FRP Walkway Grating for Platform & Carwash Floor - Small Hole Fiberglass Grille PanelNegotiableMOQ: 300 Blades
-
Lightweight FRP Grating for Easy Installation and Long-Lasting Durability - Fiberglass CompositeNegotiableMOQ: 300 Blades
-
Pultruded Fiberglass Grating Non‑Conductive Sheet For Petrochemical Plant PlatformNegotiableMOQ: 300 Blades
Hengshui Ruibin New Materials LLC, a professional manufacturer established in 2019 with over 100 employees and a modern factory spanning 1,000–3,000 square meters, brings you our high-quality FRP Molded Grating for Bridge Walkways. Engineered with advanced corrosion resistance, exceptional strength-to-weight ratio, and minimal maintenance needs, this grating is the ideal solution for demanding infrastructure projects. Whether you are constructing a pedestrian bridge over water, a chemical plant walkway, or a public transit platform, our FRP grating delivers long-lasting performance and safety.
Product Features & Technical Specifications
- Corrosion Resistance: Unaffected by moisture, salt spray, UV exposure, and most chemicals — extends service life in harsh environments.
- High Strength: Combines fiberglass reinforcement with premium resin to provide structural integrity comparable to steel but at a fraction of the weight.
- Low Maintenance: Non-conductive, non-magnetic, and does not rot or rust. Requires no painting or ongoing treatments.
- Slip Resistance: Available with concave/convex surface or bonded grit to ensure safe footing even when wet.
- Fire Retardant: Resin systems can be formulated to meet fire safety standards (optional upon request).
- Customizable: Panel sizes, thicknesses, colors, and load ratings can be tailored to your project requirements.
| Parameter | Value / Range |
|---|---|
| Panel Thickness | 25 mm, 38 mm, 50 mm (custom as needed) |
| Mesh Size | 38 × 38 mm, 50 × 50 mm, other options available |
| Load Capacity | Light duty to heavy duty (per engineering design) |
| Color Options | Gray, yellow, green, or custom RAL colors |
| Surface Finish | Concave/convex, gritted, or plain |
| Resin Type | Polyester, Vinyl Ester, or Epoxy (application-based) |
| Temperature Range | -40°C to +80°C (higher upon request) |
Detailed Advantages for Your Project
Our FRP molded grating is manufactured through a precision compression molding process, ensuring uniform fiber distribution and consistent quality. The lightweight design reduces structural load on bridge supports, simplifying installation and lowering transportation costs. Unlike steel, FRP will not rust or require cathodic protection — saving you money over the entire lifecycle. In coastal or chemical environments, our grating outperforms traditional materials by resisting salt spray and acid attack. The non-conductive property also enhances worker safety near electrical hazards. With a life expectancy of 20+ years under normal conditions, this is a truly sustainable investment.
Trust & Reliability from Hengshui Ruibin
At Hengshui Ruibin New Materials LLC, we combine a professional team of 101–200 employees with an annual export value of US$2.5–5 million. Our products are shipped from Port of Tianjin and Port of Qingdao to major markets worldwide including North America, Europe, Asia, and Oceania. We hold relevant product certifications (available upon request) and adhere to strict quality control procedures. Every panel is tested for dimensional accuracy, mechanical strength, and surface finish before dispatch. We welcome sample orders and OEM/ODM inquiries. Choose our FRP Molded Grating for bridge walkways — a proven solution trusted by global engineers. Contact us today for a quote or technical consultation!
Frequently Asked Questions
-
Q: Is your FRP grating suitable for heavy pedestrian traffic on bridges?
A: Yes, we offer multiple load capacity grades. Please specify your expected live load and span, and our engineers will recommend the appropriate thickness and mesh size. -
Q: What colors are available for bridge walkway applications?
A: Standard colors include gray, yellow, and green. Custom RAL colors can be produced for large quantities. Note that color may fade slightly under intense UV exposure, but performance remains unaffected. -
Q: How long does FRP grating last compared to steel or wood?
A: FRP typically lasts 20–30 years with minimal maintenance, while steel may require frequent painting and replacement due to corrosion, and wood may rot within 5–10 years. Our grating offers a lower total cost of ownership. -
Q: Can the grating be cut or modified on site?
A: Yes, FRP molded grating can be cut with standard tools (e.g., diamond blade). However, we recommend having panels pre-cut to size to avoid fiber exposure. We provide custom cutting services upon request. -
Q: Do you provide fire-retardant or UV-resistant grating?
A: Yes, we can formulate the resin system for enhanced fire resistance or UV stabilization. Please specify your requirements when ordering, and we will confirm feasibility and lead time. -
Q: What is the minimum order quantity?
A: For standard sizes, MOQ is 10 panels. For custom dimensions, larger MOQ may apply. We also accept small sample orders for evaluation. -
Q: How do you ensure product quality before shipping?
A: Each batch undergoes dimensional inspection, mechanical property tests (e.g., flexural strength), and visual check. We provide a quality inspection report upon request. Additionally, we can arrange third-party inspection at your cost. -
Q: Are you able to supply accessories like clips or fasteners for installation?
A: Yes, we offer compatible FRP or stainless steel fasteners. Please consult our sales team for a complete installation package.
