Welcome to Xi'an Fengyao Technology Co., Ltd. – your trusted partner for high-quality titanium products. Our Gr5 Titanium Aluminum Vanadium Wire Annealed Straight Titanium Wire is manufactured from premium Grade 5 (Ti-6Al-4V) alloy, known for its excellent strength-to-weight ratio, corrosion resistance, and biocompatibility. As a company with a 5,000-10,000 m² factory and annual export value of US$2.5–5 million, we ensure strict quality control and timely delivery. This annealed straight wire is ideal for applications requiring precise dimensions and enhanced ductility, such as aerospace fasteners, surgical implants, and chemical equipment.
Key Features & Technical Specifications
Superior Strength: Ti-6Al-4V offers tensile strength up to 950 MPa, making it suitable for high-stress components.
Excellent Corrosion Resistance: Resists pitting, crevice corrosion, and stress corrosion cracking in harsh environments.
Biocompatible: Meets ISO 5832-3 for medical implants (certification available upon request).
Annealed Condition: Fully soft temper for easy bending, forming, and machining, reducing work hardening.

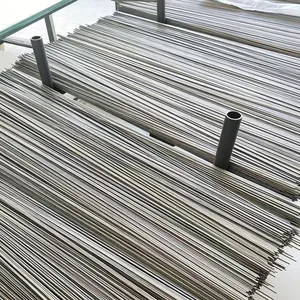

Straight Lengths: Supplied in 1m, 2m, 3m, or custom lengths, with tight straightness tolerance.
Surface Finish: Pickled, polished, or bright finish to suit your application needs.
Customizable Dimensions: Diameter range from 0.5mm to 10mm, with ±0.02mm tolerance achievable.
| Parameter | Specification |
|---|---|
| Alloy | Ti-6Al-4V (Grade 5) |
| Density | 4.43 g/cm³ |
| Tensile Strength | ≥ 895 MPa (annealed) |
| Yield Strength | ≥ 828 MPa |
| Elongation | ≥ 10% in 50 mm |
| Diameter Tolerance | ±0.03 mm (standard), ±0.02 mm (precision) |
| Straightness | ≤ 1 mm/m |
Advantages & Customer Benefits
Consistent Quality: Our ISO9001 and ISO14001 certified processes ensure every batch meets strict chemical and mechanical requirements.
Cost-Effective: Direct factory supply with competitive pricing, backed by annual export volume to over 10 global markets.
Versatile Applications: Widely used in aerospace (aircraft structural parts), medical (bone screws, plates), marine (propeller shafts), and chemical (heat exchangers) industries.
Fast Delivery: Stocking of popular diameters (1.0mm, 2.0mm, 3.0mm, 5.0mm) for quick shipment from Tianjin or Shanghai ports.
Custom Services: We offer cutting to length, spooling, surface treatment, and packaging according to your specifications.
Why Choose Xi'an Fengyao Technology? Since our establishment in 2026, we have focused on building a reliable supply chain for titanium products. Our factory spans 5,000-10,000 m², equipped with advanced drawing, annealing, and straightening machines. With a dedicated team of 5-10 professionals, we handle orders from small samples to large container loads. Our annual export value of US$2.5–5 million demonstrates our commitment to global customers. We serve markets across North America, South America, Europe, Asia, Africa, and Oceania, always adhering to strict quality standards. When you choose our Gr5 Titanium Aluminum Vanadium Wire, you are choosing a product that combines precision, durability, and traceability.
Contact us today to request a quote or discuss your custom requirements. We look forward to becoming your long-term titanium wire supplier.
Frequently Asked Questions (FAQ)
Q: What is the difference between Gr5 and CP titanium wire?

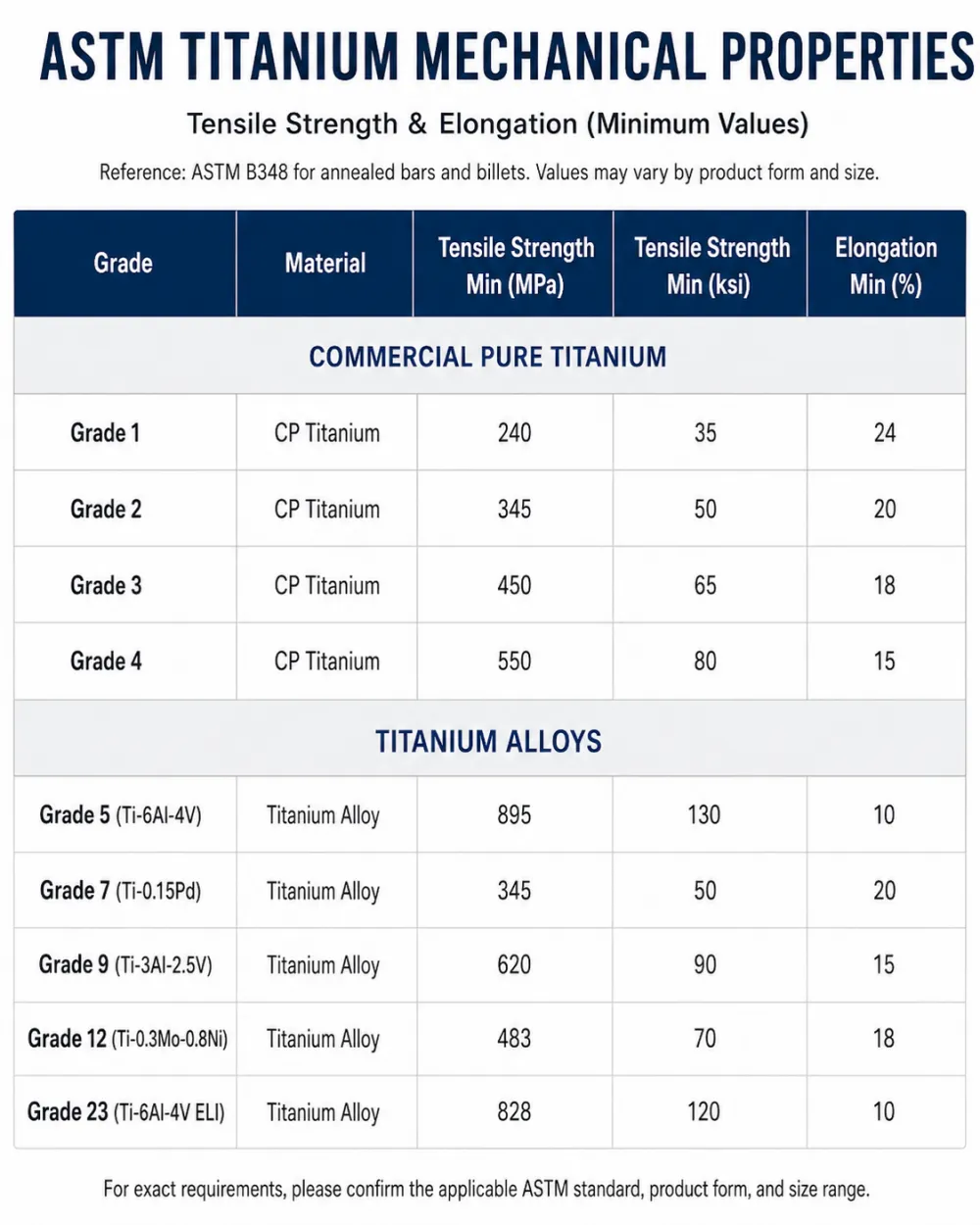

A: Gr5 (Ti-6Al-4V) is an alloy with significantly higher strength (up to 950 MPa) compared to commercially pure titanium (CP Ti, ~240-550 MPa). It is used where load-bearing capability is critical, while CP Ti is better for corrosion resistance in non-structural applications.Q: Can you supply this wire in coils instead of straight lengths?

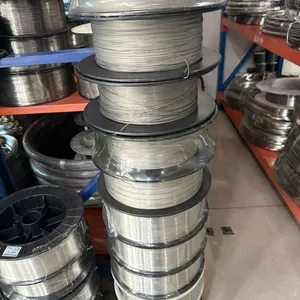

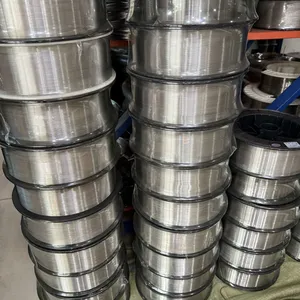

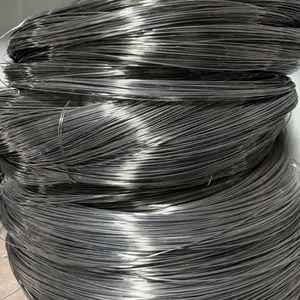

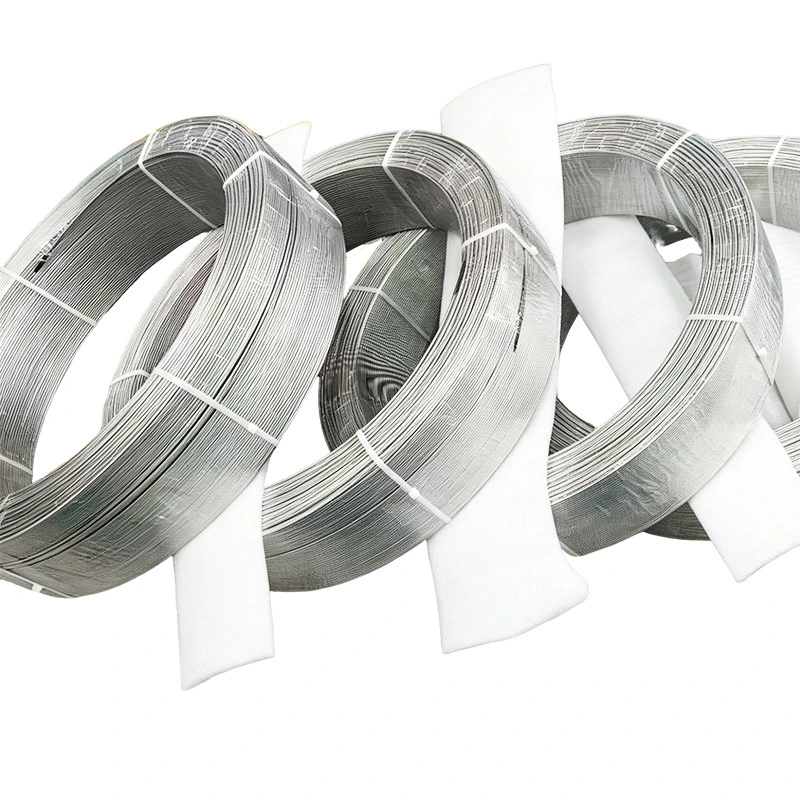

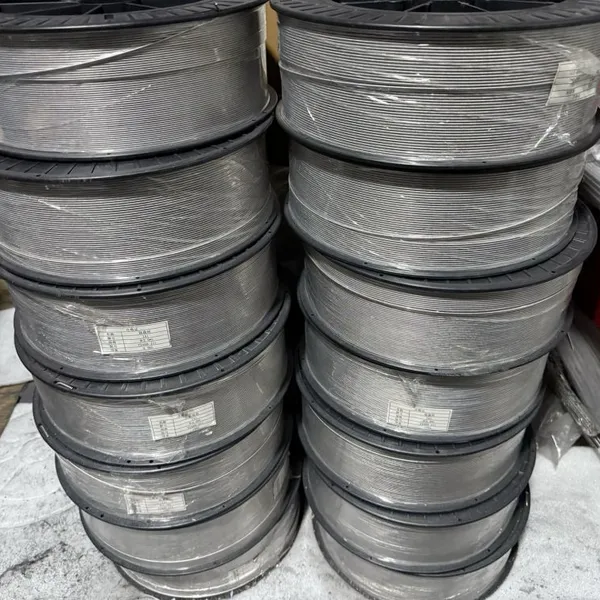

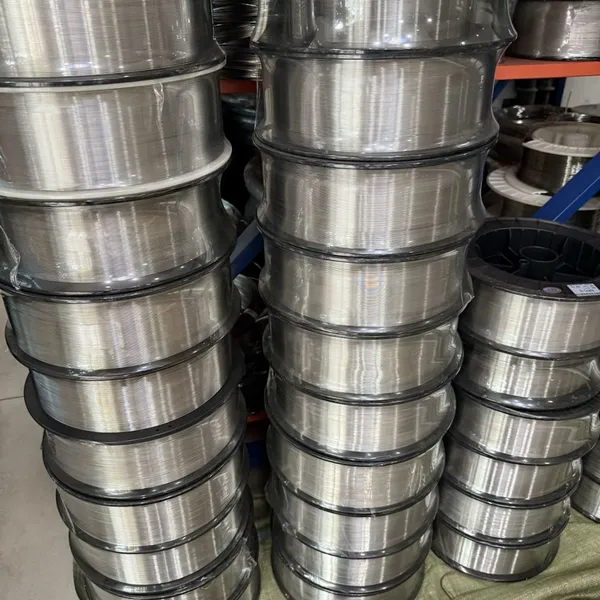

A: Yes, we can supply both straight wire (cut to length) and coiled wire on spools. Please specify your preference when ordering.Q: What is the typical lead time for custom diameters?
A: For standard diameters (1-5mm), we can ship within 7-10 working days. For non-standard sizes or special surface finishes, lead time is 15-20 working days.Q: Do you provide a mill test certificate (MTC) with each shipment?
A: Yes, we provide a Mill Test Certificate per ASTM E8/E8M and chemical analysis for every batch. Additional third-party inspection is available upon request.Q: Is this wire suitable for 3D printing (additive manufacturing)?
A: This product is designed for traditional manufacturing (machining, forming, welding). For additive manufacturing, we recommend our Ti-6Al-4V powder or wire specifically processed for 3D printing. Please consult our sales team.Q: Can you cut the wire into very short lengths (e.g., 50mm)?
A: Yes, we can cut to any length from 50mm up to 6m. For lengths under 500mm, there may be a minimum order quantity.Q: What packaging options are available for export?
A: We use wooden spools, fiberboard spools, or cartons depending on diameter and quantity. Export packaging is designed to prevent damage during sea freight.Q: Do you have stock in the US or Europe?
A: Currently we ship DDP or FOB from Tianjin/Shanghai. We do not have overseas warehouses, but our logistics partners ensure fast delivery. For urgent orders, air freight is available.
