Help CenterTitanium MIG Welding Wire AWS A5.16 Spool Titanium Welding Wire
Product Spotlights
Related Products
-
Pure Titanium Wire Gr1 Gr2 ASTM B863 Straight Spool Fine Titanium WireUS$ 20 - 40MOQ: 100 Kilograms -
Gr2 Titanium Wire ASTM B863 Annealed Bright Surface 2.0mm Diameter CoilUS$ 20 - 40MOQ: 100 Kilograms
-
Gr5 Titanium Wire Straight Cut 1.2mm Diameter for Medical Implant ApplicationsUS$ 20 - 40MOQ: 100 Kilograms
-
Gr7 Titanium Wire ASTM B863 Cold Drawn Straight 1.0mm Diameter Bright SurfaceUS$ 20 - 40MOQ: 100 Kilograms
-
ASTM B863 Gr7 Gr23 Titanium/aluminum/vanadium Wire Cold Drawn Titanium Alloy Wire With MTCUS$ 20 - 40MOQ: 100 Kilograms
Xi'an Fengyao Technology Co., Ltd. is a professional supplier of high-quality titanium welding consumables, backed by a factory spanning 5,000–10,000 square meters and annual export values reaching US$2.5–5 million. Our Titanium MIG Welding Wire AWS A5.16 Spool is engineered to deliver exceptional corrosion resistance, high strength-to-weight ratio, and reliable arc stability for demanding industrial applications. Whether you work in aerospace, chemical processing, or medical device manufacturing, this wire ensures consistent weld quality and minimal post-weld cleaning.
Our MIG welding wire is produced under strict quality control in ISO9001 and ISO14000 certified facilities, guaranteeing traceability and batch consistency. The spool packaging is designed for smooth feeding and tangle-free operation, reducing downtime and enhancing productivity. Each spool is carefully vacuum-sealed and packed to prevent contamination during storage and transit.
Key Features & Technical Specifications

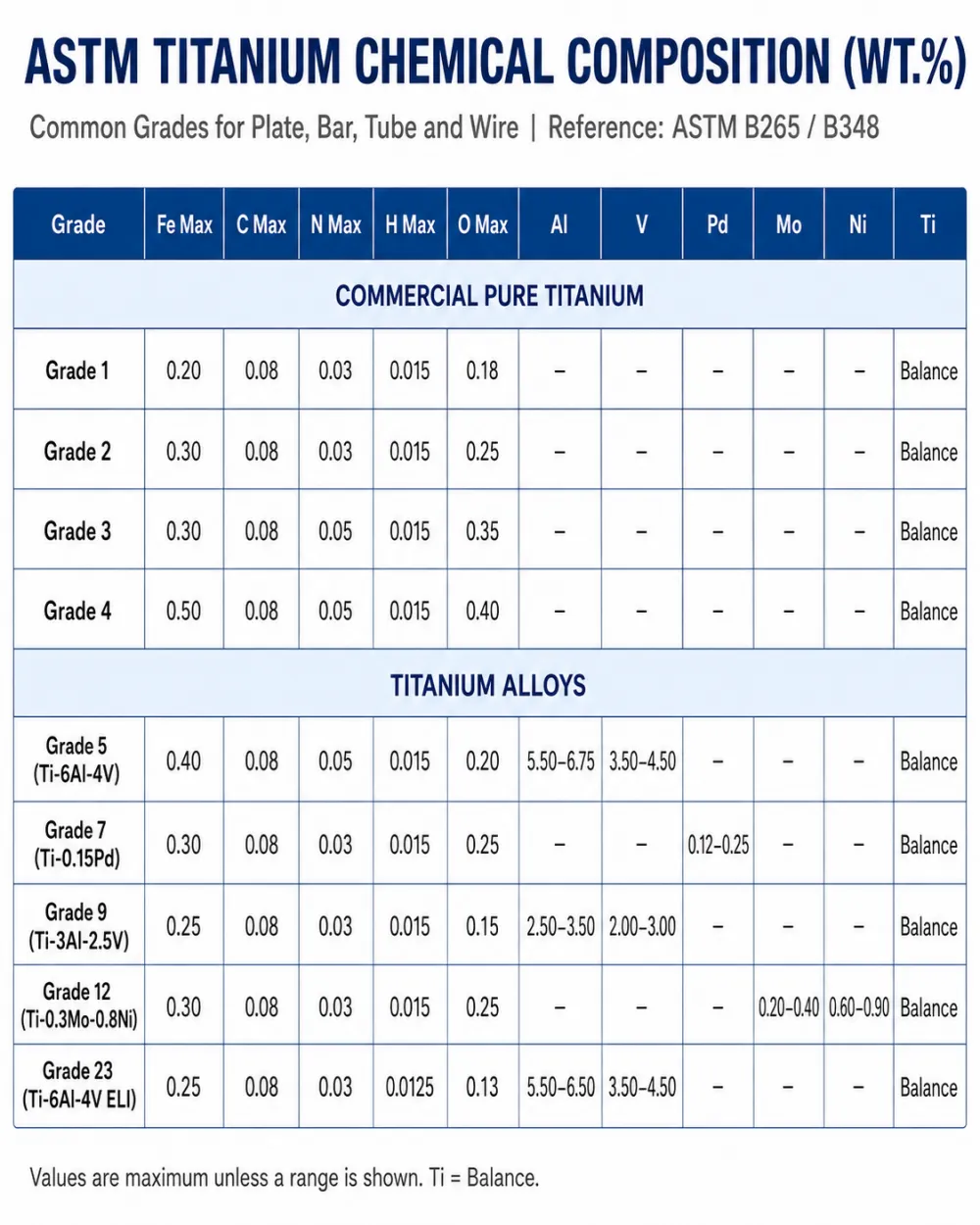

Material Purity: High-purity titanium (≥99.5%) with low oxygen and nitrogen content for superior weld ductility.
Standard Compliance: Fully meets AWS A5.16 / ASME SFA-5.16 requirements.
Uniform Diameter Tolerance: ±0.02mm ensures consistent feedability and arc control.

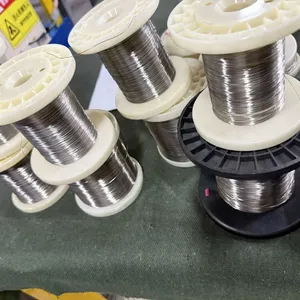

Spool Types: Available in D100, D200, D300 spools with standard or custom weights.
Surface Finish: Bright, clean surface free of grease, oil, or oxide films.
Packaging Options: Vacuum-sealed with desiccant, or argon-filled for premium grades.
| Parameter | Specification |
|---|---|
| Diameter Range | 0.8mm – 2.4mm (custom sizes available) |

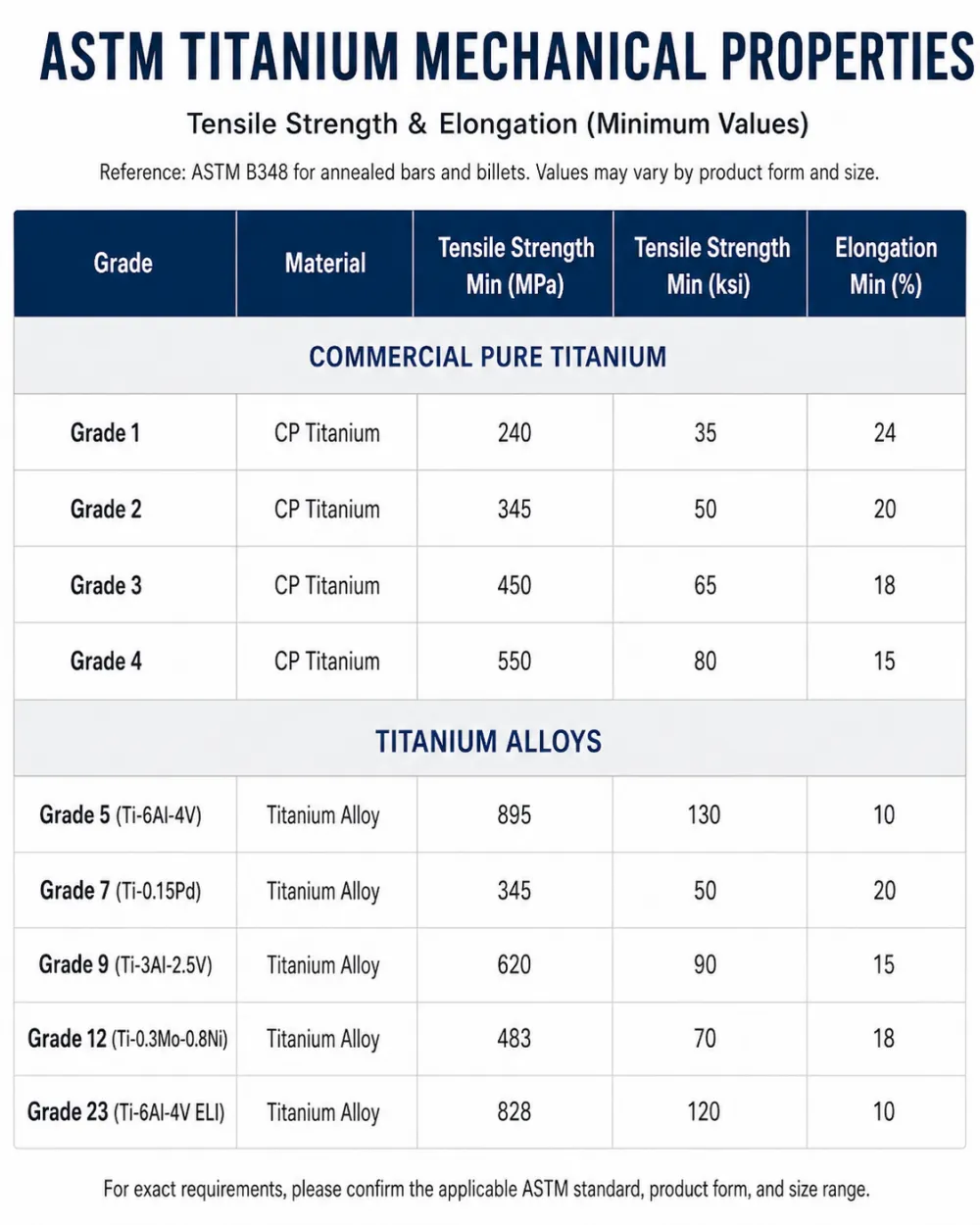

| Tensile Strength (ERTi-2) | ≥ 345 MPa |
| Elongation | ≥ 20% |
| Spool Weight | 1 kg, 2 kg, 5 kg, 15 kg (per spool) |
| Packaging | Vacuum-sealed or argon-filled, with moisture-proof outer carton |
Advantages for Your Business
Reduced Defects: Low hydrogen content minimizes porosity and cracking.
Cost Efficiency: Consistent wire diameter reduces rework and scrap rates.
Wide Compatibility: Suitable for standard MIG welding machines with titanium feed kits.
Global Logistics: Shipped from Tianjin or Shanghai ports, with fast delivery to North America, Europe, Southeast Asia, and more.
Custom Grades: ERTi-2, ERTi-5, ERTi-12, and other grades available upon request.
Our titanium MIG wire is extensively used in fabricating heat exchangers, pressure vessels, medical implants, and aircraft components. The excellent corrosion resistance in chloride environments makes it ideal for offshore and chemical plants. By choosing our product, you benefit from a stable supply chain backed by a factory with ISO9001 and ISO14000 certifications, ensuring environmental responsibility and quality consistency.
With a dedicated team of 5–10 professionals and an annual export value of US$2.5–5 million, Xi'an Fengyao Technology Co., Ltd. has established long-term partnerships across 20+ markets worldwide. We provide free samples for qualification, technical support, and flexible packaging to meet your production needs. Contact us today to discuss your custom requirements and receive a competitive quote.
Frequently Asked Questions
Q: What titanium grades are available for this MIG wire?
A: We offer ERTi-2 (commercially pure), ERTi-5 (Ti-6Al-4V), ERTi-12, and other common grades. Please specify your requirement when ordering.Q: Is this wire suitable for automated welding systems?
A: Yes, the wire's tight diameter tolerance and smooth surface ensure reliable feeding in automated MIG and robotic welding setups.Q: How is the wire packaged to prevent contamination?
A: Standard packaging includes vacuum-sealed plastic bags with desiccant inside a sturdy cardboard box. For premium grades, argon-filled packaging is available.Q: What is the minimum order quantity (MOQ)?
A: MOQ is typically 100 kg per grade/size, but we can accommodate smaller trial orders for new customers.Q: Do you provide certificates of compliance?
A: Yes, each batch comes with a mill test certificate (MTC) and traceability documentation. Third-party inspection is also available upon request.Q: Can you customize the spool size or weight?
A: Absolutely. We can supply D100, D200, D300 spools with custom weights from 1 kg to 15 kg to fit your feeders.Q: What is the typical lead time?
A: For standard sizes and grades, lead time is 7–15 working days after order confirmation. Larger quantities may require 20–25 days.Q: How do you ensure the wire meets AWS A5.16 standards?
A: We follow strict incoming material inspection, in-process diameter control, and final chemical analysis. All results are recorded and can be shared.
Contact Xi'an Fengyao Technology Co., Ltd. for professional titanium welding solutions. Our team is ready to support your projects with high-quality products and responsive service.
