Help CenterPlain and Laminated Natural Rubber Bridge Bearings for Concrete Structures
Product Spotlights
Related Products
-
PTFE Sliding Elastomeric Bearing Pad Natural Rubber Shock AbsorptionNegotiableMOQ: 300 Blades -
Steel-Reinforced Neoprene Laminated Elastomeric Bridge Bearing PadNegotiableMOQ: 300 Blades
-
Seismic Laminated PTFE Rubber Bearing for Highway EngineeringNegotiableMOQ: 300 Blades
-
Rubber Bearing With Shore A 60 Hardness, 20mm ID x 40mm OD, Operating Temperature -30°C to +80°CNegotiableMOQ: 300 Blades
-
Rubber Bearing 25mm ID, 50mm OD, 12mm Thickness, Static Load 5000N, Standard CompliantNegotiableMOQ: 300 Blades

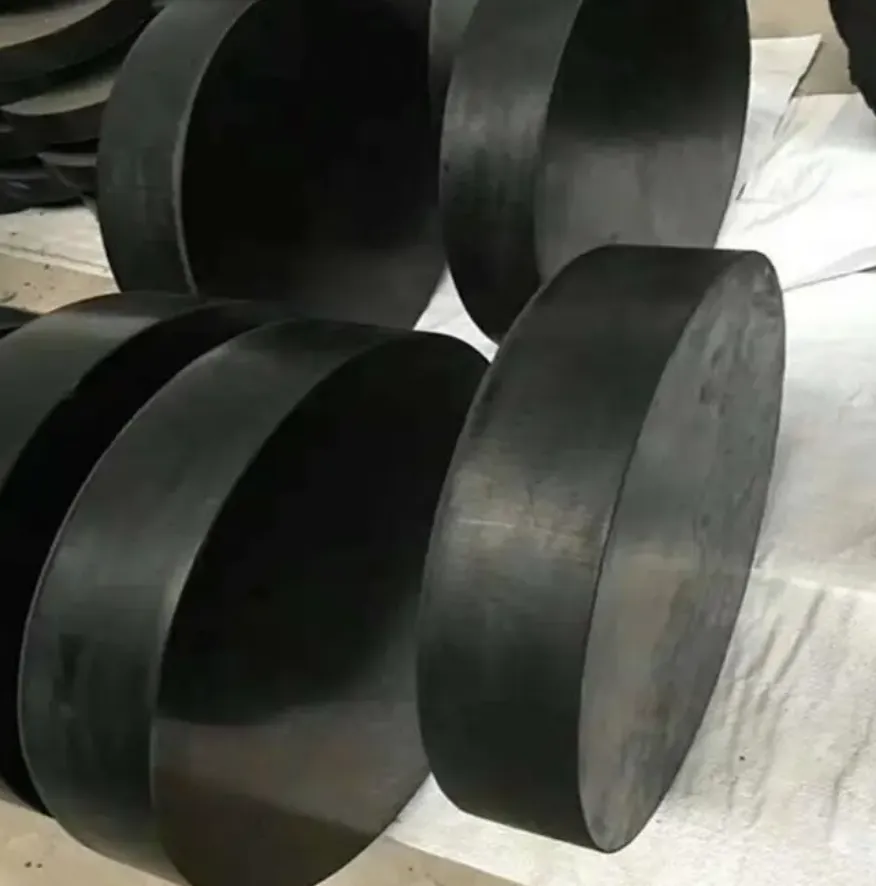

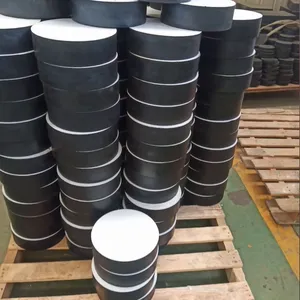

Hengshui Ruibin New Materials LLC, a professional manufacturer based in Hengshui, Hebei, China, has been dedicated to producing high-quality bridge bearing solutions since 2019. Our Plain and Laminated Natural Rubber Bridge Bearings are specifically designed for concrete structures, offering reliable load distribution, seismic isolation, and structural flexibility. With a factory size of 1,000–3,000 square meters and a team of 101–200 skilled employees, we ensure every product meets rigorous quality standards. Our annual export value of US$2.5 million–US$5 million reflects the trust of global clients in our engineering capabilities. These bearings are engineered to enhance the durability and safety of bridges, viaducts, and elevated highways, making them a preferred choice for infrastructure projects worldwide.
Key Features & Technical Specifications
- Material Excellence: Made from high-quality natural rubber, providing excellent elasticity, fatigue resistance, and environmental adaptability.
-
Two Configuration Options:
- Plain Bearings: Single-layer rubber block without reinforcement – ideal for small to medium structures where simple vertical load support is needed.
- Laminated Bearings: Multi-layer rubber bonded with steel plates – offers superior shear displacement capacity and rotational flexibility, suitable for large-span bridges and seismic zones.
- Customizable Dimensions: Available in various sizes, thicknesses, and hardness levels to match specific project requirements. Contact us for tailored solutions.
- Load Capacity: Standard models support up to 5000 kN; higher capacities available upon request.
- Temperature Range: Reliable performance from -30°C to +60°C, with optional low-temperature formulations for cold climates.
- Compliance & Certification: Manufactured under ISO 9001:2015 and ISO 9000 quality management systems, ensuring consistent quality and traceability.
| Parameter | Plain Bearing | Laminated Bearing |
|---|---|---|
| Material | Natural Rubber | Natural Rubber + Steel Plates |
| Hardness (Shore A) | 60±5 | 60±5 (adjustable) |
| Max. Compressive Stress | 10 MPa | 15 MPa |
| Shear Modulus | 0.8–1.2 MPa | 0.9–1.5 MPa |
| Elongation at Break | ≥400% | ≥350% |
| Working Temperature | -30°C to +60°C | -30°C to +60°C |
Advantages & Customer Benefits
- Superior Durability: Natural rubber resists aging, ozone, and cracking, ensuring a service life of several decades under normal conditions.
- Seismic Protection: Laminated bearings absorb and dissipate energy during earthquakes, protecting the bridge structure from damage.
- Easy Installation & Maintenance: Lightweight and flexible design reduces construction time and simplifies replacement when needed.
- Cost-Effective: Lower material and fabrication costs compared to steel or elastomeric pads, while maintaining high performance.
- Global Logistics: Shipped from Port of Tianjin or Qingdao with secure packaging (wooden pallets/steel frames) to prevent damage during transit.
Trust & Reliability
Since our establishment in 2019, Hengshui Ruibin New Materials LLC has grown into a trusted partner for infrastructure projects across North America, South America, Europe, Asia, Africa, and Oceania. Our ISO 9001:2015 and ISO 9000 certifications reflect our commitment to quality management. With a dedicated team of 101–200 employees and a modern factory spanning 1,000–3,000 square meters, we ensure every batch of bridge bearings meets stringent international standards. Our annual export value of US$2.5 million–US$5 million demonstrates the confidence our clients place in our products. We invite you to experience the durability and reliability of our natural rubber bridge bearings – contact us for a quotation or technical consultation today.
Frequently Asked Questions
Q1: What is the difference between plain and laminated natural rubber bridge bearings?
A: Plain bearings consist of a single layer of natural rubber, suitable for simple vertical load support in small to medium bridges. Laminated bearings have multiple rubber layers bonded with steel plates, offering higher shear displacement capacity and rotational flexibility – ideal for large-span bridges and seismic applications.
Q2: What is the typical service life of these bearings?
A: Under normal environmental conditions, natural rubber bearings can last 30–50 years or more. Regular inspection and maintenance can further extend their lifespan.
Q3: How do I choose the right hardness and size for my project?
A: We recommend consulting our technical team. Standard hardness is 60±5 Shore A, but custom hardness (50–70 Shore A) is available. Dimensions are fully customizable based on bridge design loads and movement requirements.
Q4: Are these bearings suitable for cold climates?
A: Yes, natural rubber performs well down to -30°C. We also offer low-temperature compound formulations for extreme cold environments (up to -50°C) upon request.
Q5: Can you provide samples for testing?
A: Absolutely. We can supply small samples for evaluation. Please contact us with your specifications, and we will arrange shipment.
Q6: What certifications do your products hold?
A: Our manufacturing facility is ISO 9001:2015 and ISO 9000 certified. We also comply with international standards such as AASHTO and EN 1337 where required.
Q7: How are the bearings packaged for export?
A: We use sturdy wooden pallets or steel frames with protective wrapping to prevent damage during shipping. Each bearing is individually labeled for easy identification.
Q8: What is the typical lead time for an order?
A: Lead time depends on quantity and customization. Standard products typically ship within 15–25 working days after order confirmation. Custom orders may require 30–45 days.
