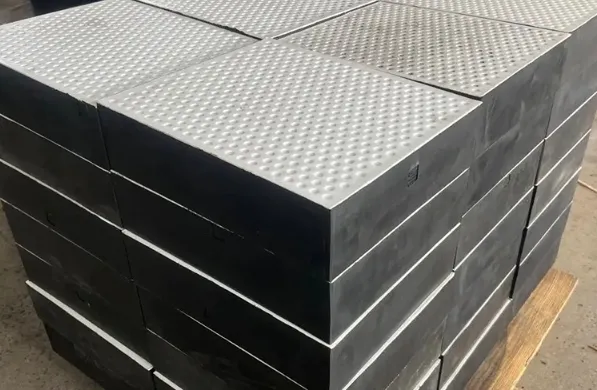

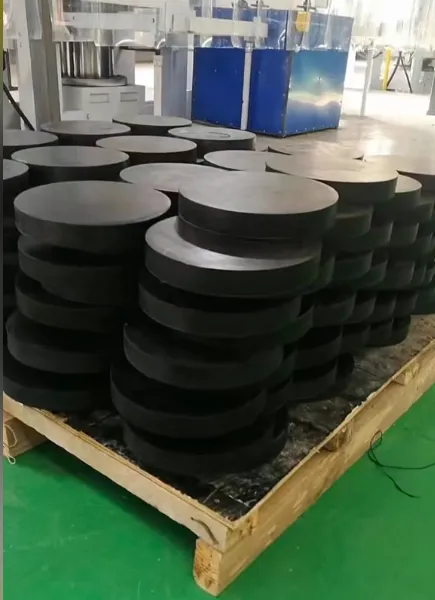

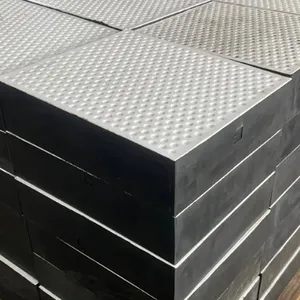

PTFE Sliding Elastomeric Bearing Pad Natural Rubber Shock Absorption
Product Spotlights
Our PTFE Sliding Elastomeric Bearing Pad combines a low-friction PTFE surface with natural rubber shock absorption, offering superior movement accommodation, vibration damping, and long service life. Customizable sizes, ISO 9001 certified quality, and global export experience make it ideal for bridges, buildings, and industrial structures.
Negotiable
MOQ: 300 Blades (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, PTFE + Natural Rubber / Elastomer
Color:
Black (standard)
Size:
Customizable (e.g., 200x200x30mm, 500x500x50mm)
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Steel-Reinforced Neoprene Laminated Elastomeric Bridge Bearing PadNegotiableMOQ: 300 Blades -
Seismic Laminated PTFE Rubber Bearing for Highway EngineeringNegotiableMOQ: 300 Blades
-
Rubber Bearing With Shore A 60 Hardness, 20mm ID x 40mm OD, Operating Temperature -30°C to +80°CNegotiableMOQ: 300 Blades
-
Rubber Bearing 25mm ID, 50mm OD, 12mm Thickness, Static Load 5000N, Standard CompliantNegotiableMOQ: 300 Blades
-
Rubber Bearing, 35mm ID, 70mm OD, 14mm Width, Dynamic Load 3000N, Mill Test Report IncludedNegotiableMOQ: 300 Blades
Material
Other, PTFE + Natural Rubber / Elastomer
Color
Black (standard)
Size
Customizable (e.g., 200x200x30mm, 500x500x50mm)
Hardness
Shore A 50-70 (adjustable)
Application
Bridge, building, stadium, industrial equipment
Feature
Sliding capacity, vibration damping, corrosion resistance
Load Capacity
Up to 5000 kN (customizable)
Standard
ISO 9001:2015 certified
Temperature Range
-40°C to +80°C
Model Number
RB-PTFE-SERIES
Welcome to Hengshui Ruibin New Materials LLC – your trusted manufacturer of high-performance elastomeric bearings. Our PTFE Sliding Elastomeric Bearing Pad with Natural Rubber Shock Absorption is engineered to deliver exceptional durability, low friction, and superior vibration isolation for demanding structural applications. Combining a premium PTFE sliding surface with a resilient natural rubber core, this bearing pad effectively accommodates thermal expansion, seismic movement, and dynamic loads while protecting the superstructure from fatigue and damage. Whether you are designing a highway bridge, a high-rise building, or an industrial plant, our bearing pads ensure long-term service life and minimal maintenance.
Key Features & Technical Specifications
- PTFE Sliding Surface: Ultra-low coefficient of friction (typically 0.04–0.08) allows smooth horizontal movement under high compressive loads, reducing stress on substructures.
- Natural Rubber Elastomer Core: Excellent elasticity and energy absorption capacity, providing effective shock and vibration damping for bridges and buildings.
- Reinforced Construction: Internal steel laminates (optional) increase vertical load capacity and prevent lateral bulging, ensuring dimensional stability under heavy loads.
- Weather & Chemical Resistance: Natural rubber compound formulated with antioxidants and anti-ozonants to resist aging, UV exposure, and mild chemical attack.
- Customizable Dimensions: Available in various thicknesses, widths, and lengths to fit specific project requirements. Sizes up to 1000mm × 1000mm available.
- Easy Installation: Pre-drilled holes or adhesive bonding options simplify placement on concrete or steel substructures.
| Parameter | Value |
|---|---|
| Material | PTFE (polytetrafluoroethylene) + Natural Rubber (NR) |
| Hardness (Shore A) | 55 ± 5 (standard), customizable 50–70 |
| Compressive Strength | ≥ 15 MPa (standard grade) |
| Coefficient of Friction | ≤ 0.08 (with lubricated PTFE surface) |
| Operating Temperature | -40°C to +80°C |
| Shear Modulus | 0.9 – 1.5 MPa (depending on grade) |
| Maximum Horizontal Movement | ± 50 mm (larger available on request) |
| Certification | ISO 9001:2015, ISO 9000 |
Advantages & Customer Benefits
- Extended Structure Lifespan: By absorbing seismic and thermal movements, our bearing pad reduces stress concentrations in concrete and steel elements, preventing cracks and fatigue failures.
- Low Maintenance: The PTFE layer resists wear and requires no lubrication under normal conditions, cutting long-term operating costs.
- High Load Capacity: Reinforced designs can support vertical loads up to 5000 kN, suitable for medium to large span bridges.
- Noise and Vibration Reduction: Natural rubber's inherent damping properties significantly lower transmitted vibrations and structure-borne noise, improving occupant comfort in buildings.
- Flexible Design: We can adjust the rubber thickness, PTFE layer, and internal steel plates to meet specific deflection, rotation, and sliding requirements.
- Global Compatibility: Our pads comply with international standards (AASHTO, BS EN, etc.) and have been exported to over 30 countries.
About Hengshui Ruibin New Materials LLC
Established in 2019, our factory covers 1,000–3,000 square meters and employs 101–200 skilled workers. We specialize in the manufacture of elastomeric bearings, expansion joints, and shock absorption devices. With an annual export value of US$2.5 million – US$5 million, we serve markets across North America, South America, Europe, Africa, Oceania, Asia, and the Middle East. Our products are shipped from Port of Tianjin and Port of Qingdao, ensuring efficient global logistics. We hold ISO 9001:2015 and ISO 9000 certifications, demonstrating our commitment to quality management and continuous improvement. Every batch of bearing pads undergoes rigorous testing for hardness, compression, and friction to guarantee consistent performance.
Choose Hengshui Ruibin for your next project. Our engineering team provides free technical consultation, and we offer sample testing, custom design, and fast delivery. Contact us today to discuss your specific bearing requirements and receive a competitive quotation. Let us be your reliable partner in structural safety and durability.
Frequently Asked Questions (FAQ)
-
What is the difference between a PTFE sliding elastomeric bearing and a standard elastomeric bearing?
Standard elastomeric bearings rely solely on rubber deformation to accommodate movement, while PTFE sliding bearings incorporate a low-friction PTFE layer that allows larger horizontal displacements with minimal resistance. This is essential for long-span bridges and structures with high thermal expansion. -
How long is the service life of this bearing pad?
Under normal environmental conditions (temperature range, UV exposure), our bearing pads are designed for a service life of 20–30 years. The natural rubber compound includes anti-aging additives, and the PTFE surface is highly resistant to wear. Periodic inspection is recommended every 5–10 years. -
Can I get custom sizes and shapes?
Yes, we offer custom sizes, thicknesses, and shapes to fit your specific project needs. Please provide your design drawings or load requirements, and our engineers will recommend the optimal configuration. -
What is the maximum load capacity of these pads?
Standard pads can support compressive loads up to 15 MPa (approx. 1500 kN for a 300×300 mm pad). With reinforced internal steel plates, capacities can exceed 5000 kN. We can customize for even higher loads. -
Are these bearings suitable for seismic zones?
Yes, the natural rubber elastomer provides excellent energy dissipation, reducing seismic forces transmitted to the structure. Combined with PTFE sliding capability, they effectively accommodate ground motion displacements. For high-seismic applications, we can also add lead-core or high-damping rubber options. -
How do I install the bearing pad?
Installation typically involves placing the pad on a clean, level concrete or steel surface. For sliding applications, the PTFE side should face the moving part. The pad can be bonded with epoxy adhesive or fixed using mechanical anchors. Detailed installation instructions are provided with each order. -
What is the minimum order quantity (MOQ)?
For standard sizes, MOQ is 50 pieces. For custom designs, MOQ may be higher depending on tooling and production setup. We also accept small trial orders for testing purposes. -
Do you provide third-party testing reports?
Yes, we can arrange testing by accredited laboratories for compressive strength, friction coefficient, hardness, and aging resistance upon request. Additional costs may apply.
