Hengshui Ruibin New Materials LLC, a professional manufacturer established in 2019 with a 1,000-3,000 square meter factory and 101-200 skilled employees, proudly presents our High Load Laminated Rubber Bearing for Highway Railway Seismic Isolation. This product is engineered to provide exceptional seismic isolation and load-bearing performance for critical infrastructure projects. With an annual export value of US$2.5 million to US$5 million, we have supplied reliable bearings to markets across North America, South America, Europe, Asia, Africa, and Oceania. Our bearings are manufactured under strict ISO9001 and ISO9000 quality management systems, ensuring consistent quality and durability.

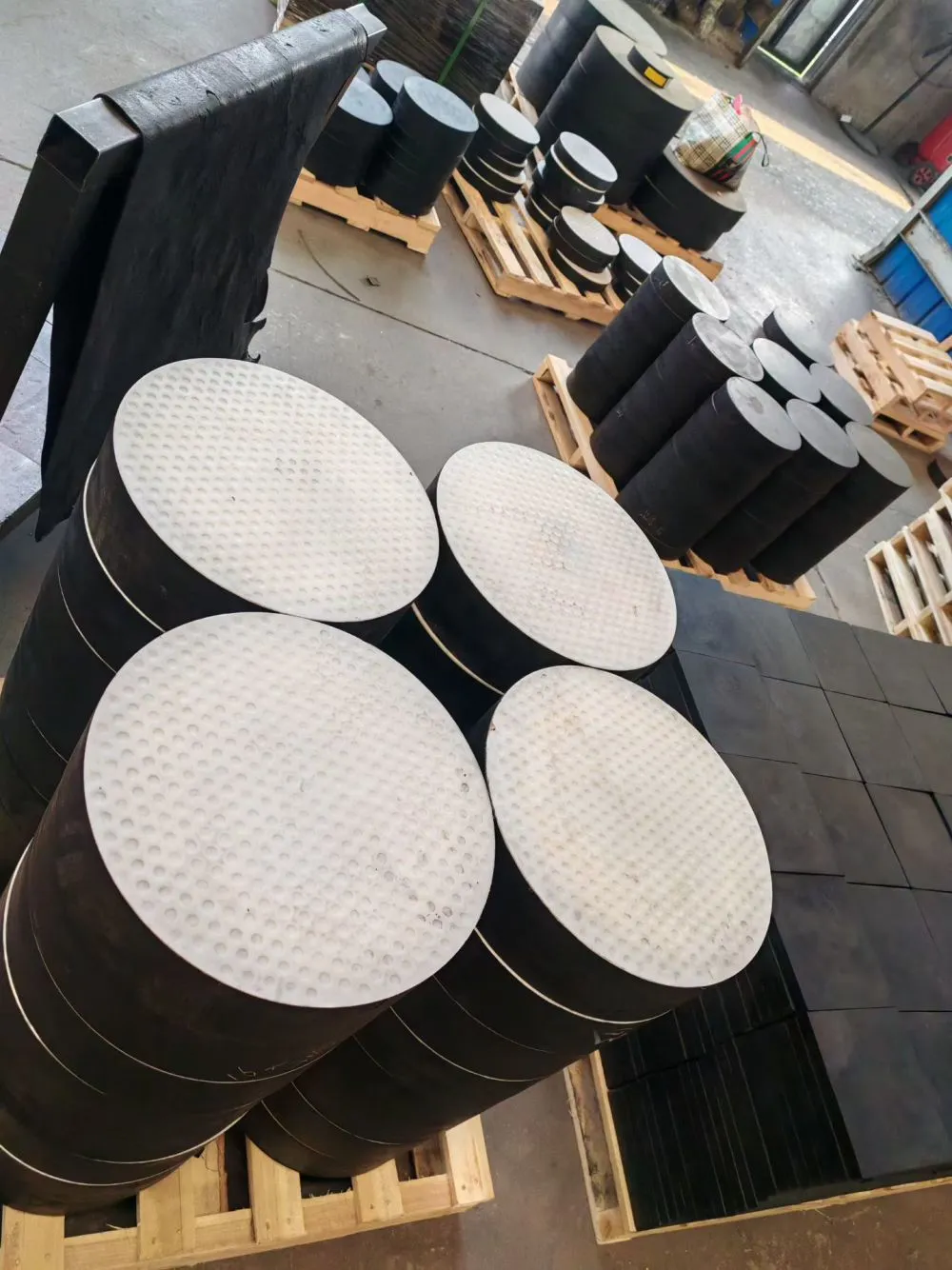

The laminated rubber bearing consists of alternating layers of high-quality natural rubber and steel plates, vulcanized together to form a robust unit. This design allows the bearing to accommodate vertical loads while providing horizontal flexibility for seismic movements. It is an ideal solution for highways, railways, bridges, and other structures requiring high load capacity and seismic protection.
Key Features & Technical Specifications
- High Load Capacity: Engineered to support heavy vertical loads from bridges and elevated structures, with customizable load ratings to meet project requirements.
- Excellent Seismic Isolation: The laminated structure provides horizontal flexibility, effectively absorbing and dissipating seismic energy, reducing structural forces by up to 50%.
- Durable Construction: Made from high-quality natural rubber and steel plates, resistant to aging, ozone, and environmental factors, ensuring a service life of over 50 years.
- Low Maintenance: No moving parts or hydraulic components, requiring minimal inspection and maintenance throughout its lifespan.
- Customizable Dimensions: Available in various sizes, shapes, and stiffness levels to suit specific bridge designs and load conditions.
- Easy Installation: Designed for simple placement between bridge girder and substructure, with anchor bolt holes and lifting lugs for convenient handling.
- Temperature Resistance: Operates effectively in a wide temperature range from -40°C to +60°C, suitable for diverse climates.
- Compliance with Standards: Manufactured under ISO9001 and ISO9000 certified processes, and can be designed to meet AASHTO, EN, or other international standards upon request.
Technical Parameters (Typical Values)
| Parameter | Value | Remarks |
| Vertical Load Capacity | 500 kN – 10,000 kN | Customizable |
| Horizontal Displacement | ±50 mm – ±200 mm | Depends on design |
| Rubber Layer Thickness | 5 mm – 20 mm | Per layer |
| Steel Plate Thickness | 2 mm – 5 mm | Mild steel, galvanized |
| Elastomer Hardness | 60 ± 5 Shore A | Standard |
| Operating Temperature | -40°C to +60°C | Wide range |
| Design Life | 50+ years | With proper maintenance |
Benefits for Your Project
- Enhanced Safety: Protects structures and occupants during earthquakes by isolating seismic forces.
- Reduced Structural Damage: Minimizes stress on bridge columns and foundations, lowering repair costs.
- Cost-Effective: Long service life and low maintenance requirements reduce total lifecycle costs.
- Versatile Application: Suitable for new construction as well as retrofitting existing bridges and railways.
- Proven Performance: Widely used in seismic zones worldwide, with thousands of successful installations.
Frequently Asked Questions (FAQ)
-
What is the maximum load capacity of your laminated rubber bearing?
Our bearings can be designed for vertical loads from 500 kN up to 10,000 kN or more. Custom designs are available for specific project requirements. -
How does the bearing perform in extremely cold or hot climates?
The bearing operates effectively from -40°C to +60°C. The natural rubber compound is specially formulated to maintain flexibility and performance across this range. -
Can these bearings be used for retrofitting existing bridges?
Yes, they are suitable for both new construction and retrofitting. We can provide custom shapes and connection details to fit existing structures. -
What certifications do your products have?
Our manufacturing process is certified under ISO9001 and ISO9000. We can also design bearings to meet AASHTO, EN, or other international standards upon request. -
How long does the bearing last?
With proper installation and maintenance, the design life exceeds 50 years. The rubber is resistant to aging and ozone. -
What is the typical lead time for an order?
Lead time depends on order quantity and customization. For standard sizes, it is typically 4-6 weeks. Please contact us for specific timelines. -
Do you provide installation guidance?
Yes, we offer technical support and installation manuals to ensure proper handling and placement. On-site supervision is available upon request. -
Can you supply bearings for railway applications with high dynamic loads?
Absolutely. Our bearings are designed to handle both static and dynamic loads from railway traffic, with additional damping characteristics if required.
Trust Hengshui Ruibin New Materials LLC – Your Reliable Partner for Seismic Isolation Solutions
With a dedicated team of 101-200 employees, a modern factory spanning 1,000-3,000 square meters, and annual exports worth US$2.5 million to US$5 million, we have the capacity and expertise to deliver high-quality laminated rubber bearings for your projects. Our products are shipped from Port of Tianjin and Port of Qingdao to clients across North America, South America, Europe, Asia, Africa, Oceania, and the Middle East. We are committed to providing customizable, durable, and cost-effective solutions. Contact us today for a quotation or technical consultation – let us support your infrastructure with reliable seismic isolation technology.
