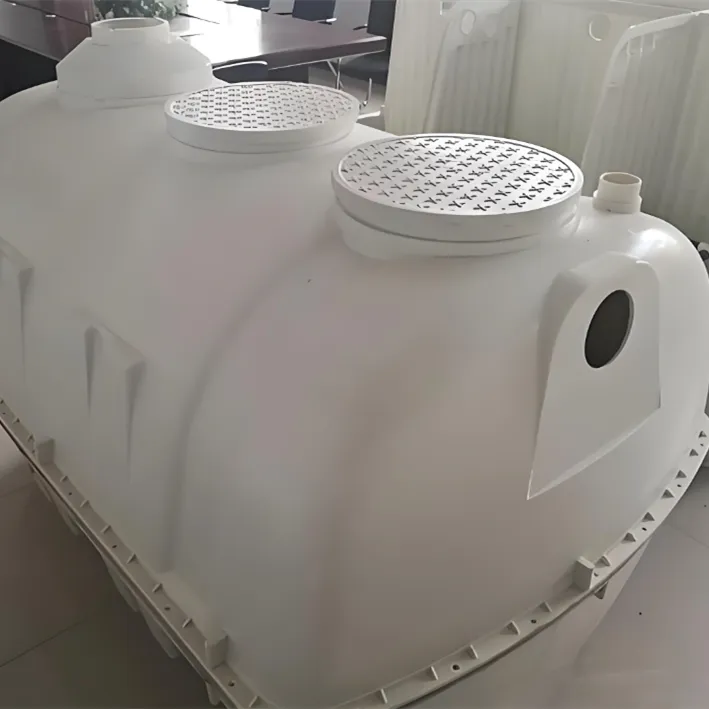

10,000L FRP Underground Sewage Tank, 0.5MPa Working Pressure, ISO 9001 Manufacturing Process
Product Spotlights
High-strength FRP construction withstands 0.5MPa pressure for deep underground burial. 10,000L capacity ideal for sewage/wastewater. Corrosion-resistant, lightweight, and leak-proof. ISO 9001 certified manufacturing with customizable size and fittings. Reliable for 30+ years, cost-effective alternative to steel or concrete. Global shipping from Tianjin/Qingdao ports.
Negotiable
MOQ: 300 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Fiber Reinforced Plastic (FRP)
Capacity:
10,000 Liters
Working Pressure:
0.5 MPa
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Customizable FRP Septic Tank, 3-20m³ Options, 12mm Thickness, 20-Year Design LifeNegotiableMOQ: 300 Units -
Free Installation Guidance FRP Sewage Tank 2000L Standard Compliant for Sewage SystemsNegotiableMOQ: 300 Units
-
FRP Chemical Sewage Storage Tank, 5mm Inner Lining, 0.6MPa, 80°C Max TemperatureNegotiableMOQ: 300 Units
-
5000L Glass Fiber Reinforced Plastic Sewage Tank, 10mm Wall Thickness, UV Stabilized for Outdoor UseNegotiableMOQ: 300 Units
-
FRP Sewage Tank With 1-Year Warranty, Mill Test Report Included, Standard Compliant ProductionNegotiableMOQ: 300 Units
Material
Fiber Reinforced Plastic (FRP)
Capacity
10,000 Liters
Working Pressure
0.5 MPa
Application
Underground sewage treatment, wastewater storage
Color
Customizable (e.g., green, black, gray)

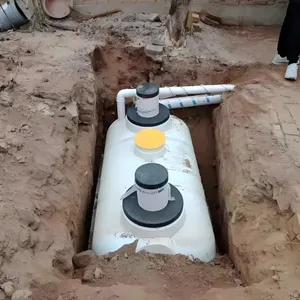

Installation
Buried underground
Manufacturing Standard
ISO 9001 process
Size (Diameter × Length)
Customizable upon request
Wall Thickness
Engineered per design requirements
Corrosion Resistance
High resistance to acids, alkalis, and salts
Hengshui Ruibin New Materials LLC, a professional manufacturer established in 2019 with a 1,000-3,000 m² factory and ISO 9001/ISO 9000 certified processes, proudly presents our 10,000L FRP Underground Sewage Tank designed for a working pressure of 0.5 MPa. This tank combines advanced fiber-reinforced plastic technology with rigorous quality control, offering a durable, corrosion-resistant solution for underground wastewater storage and treatment. Whether for municipal sewage systems, industrial effluent containment, or rural sanitation projects, our tank delivers reliable performance and long service life. With an annual export value of US$2.5–5 million and a team of 101–200 skilled workers, we ensure each tank meets international standards, shipped from Tianjin or Qingdao ports to markets worldwide.
Key Features
- High Mechanical Strength: The FRP structure is engineered to withstand 0.5 MPa working pressure, making it suitable for deep burial applications without risk of collapse.
- Superior Corrosion Resistance: Our tank resists a wide range of chemicals, including sewage acids, alkalis, and salts, ensuring a lifespan of 30+ years under normal conditions.
- Lightweight & Easy Installation: Compared to concrete or steel tanks, FRP is significantly lighter, reducing transportation costs and simplifying on-site handling. The underground design also saves ground space.
- Leak-Proof & Seamless Construction: Using advanced winding and molding techniques, the tank is manufactured with a monolithic structure that eliminates weld seams and potential leakage points.
- Customizable Dimensions: We offer tailored sizes, wall thickness, and inlet/outlet configurations to match specific project requirements. Color options are available upon request.
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Capacity | 10,000 Liters (10 m³) |
| Working Pressure | 0.5 MPa (5 bar) |
| Material | Glass Fiber Reinforced Plastic (FRP) |
| Operating Temperature | -40°C to +80°C (customizable) |
| Density | Approx. 1.8 g/cm³ (composite) |
| Installation Depth | Up to 3 meters (based on soil conditions) |
| Standard Compliance | Manufactured under ISO 9001 quality management system |
Advantages for Your Business
- Cost-Effective: Lower maintenance and replacement costs compared to traditional steel tanks that require anti-corrosion coating. FRP does not rust or rot.
- Fast Lead Time: With a 101-200 person workforce and streamlined production, we can deliver orders efficiently. For standard sizes, lead time is typically 15–20 working days.
- Global Shipping Expertise: Our main ports are Tianjin and Qingdao, with extensive experience exporting to North America, South America, Europe, Southeast Asia, Africa, Oceania, the Middle East, and more. We ensure proper packaging for sea freight.
- Environmental Friendly: FRP is inert and does not leach harmful substances into the soil. The tank is recyclable at end of life.
- Certified Quality: Our ISO 9001 and ISO 9000 certifications guarantee consistent quality control from raw material inspection to final pressure testing.
Every tank undergoes a rigorous hydrostatic pressure test at 1.0 MPa (twice the working pressure) to ensure safety and durability. We also provide a standard warranty of 1 year, with extended options available upon request. Our technical team offers free consultation for installation design, including backfill recommendations and pipe connections.
Why choose Hengshui Ruibin New Materials LLC? Since 2019, we have focused exclusively on FRP products, accumulating deep expertise in molding and winding processes. Our factory spans 1,000–3,000 square meters and is equipped with advanced CNC winding machines, hydraulic presses, and curing ovens. With an annual export value of US$2.5–5 million, we have successfully supplied tanks to projects in over 20 countries. Our team of 101–200 employees includes 15+ R&D engineers dedicated to product innovation. We believe in long-term partnerships and offer OEM/ODM services to meet unique specifications. Contact us today for a quote or technical datasheet – we are ready to support your next sewage treatment project.
Frequently Asked Questions
-
Q: What is the lifespan of the 10,000L FRP underground sewage tank?
A: Under normal soil conditions and proper installation, the tank can last 30–50 years. The FRP material is resistant to UV degradation (if buried) and chemical attack, requiring minimal maintenance. -
Q: Can the tank be used for potable water storage?
A: While our FRP is food-grade safe, this specific model is designed for sewage/wastewater. For potable water, we recommend our specialty water tank series with FDA-approved resin. Please contact us for details. -
Q: What is the maximum burial depth?
A: The standard design supports up to 3 meters of cover. For deeper installations, we can reinforce the wall thickness or add stiffeners. A geotechnical report is recommended for custom depths. -
Q: Do you provide installation services?
A: We do not offer on-site installation, but we provide detailed installation manuals and technical support. Many of our distributors offer local installation services. We can recommend qualified partners in your region. -
Q: What are the inlet/outlet sizes?
A: Standard sizes are 110mm, 160mm, 200mm, and 250mm. Custom diameters and multiple connections are available upon request. All fittings are made of stainless steel or FRP. -
Q: How is the tank shipped?
A: Tanks are packed on steel frames with foam padding and wrapped in waterproof film. For large orders, we use flat racks or open-top containers. Our logistics team ensures safe loading and compliance with export regulations. -
Q: What is your quality guarantee?
A: We offer a 1-year warranty covering manufacturing defects. Extended warranties up to 5 years are negotiable. Every tank is pressure-tested before dispatch. -
Q: Can you manufacture tanks with different capacities?
A: Yes, we offer capacities from 1,000L to 50,000L. Custom dimensions, pressure ratings, and colors are all achievable. Please provide your specifications for a tailored solution.
