Help Center2000L One-Piece FRP Septic Tank With DN100 Inlet/Outlet and Leak-Proof Design
Product Spotlights
Related Products
-
Customizable FRP Septic Tank: 600-5000L With Free Technical Support and Standard CompliantNegotiableMOQ: 300 Units -
800L FRP Septic Tank With 24-Hour Hold Time and Anti-Corrosion Coating for Cold RegionsNegotiableMOQ: 300 Units
-
2000 Gallon FRP Septic Tank for Commercial Building, Heavy-Duty, 10mm WallNegotiableMOQ: 300 Units
-
1000 Gallon FRP Septic Tank for Rural Household Wastewater Treatment, Easy InstallationNegotiableMOQ: 300 Units
-
FRP Septic Tank Factory Direct, 1000L Capacity, Mill Test Report Available, 1 Year WarrantyNegotiableMOQ: 300 Units
Hengshui Ruibin New Materials LLC is a professional manufacturer of FRP products with over 5 years of experience, exporting to 20+ countries worldwide. Our 2000L One-Piece FRP Septic Tank with DN100 Inlet/Outlet and Leak-Proof Design represents the latest advancement in eco-friendly wastewater treatment solutions. Combining superior corrosion resistance, high structural strength, and a seamless one-piece molding process, this tank delivers reliable performance for residential and commercial applications. With a factory size of 1,000-3,000 square meters and a dedicated team of 101-200 employees, we ensure every unit meets strict quality standards.
Product Overview

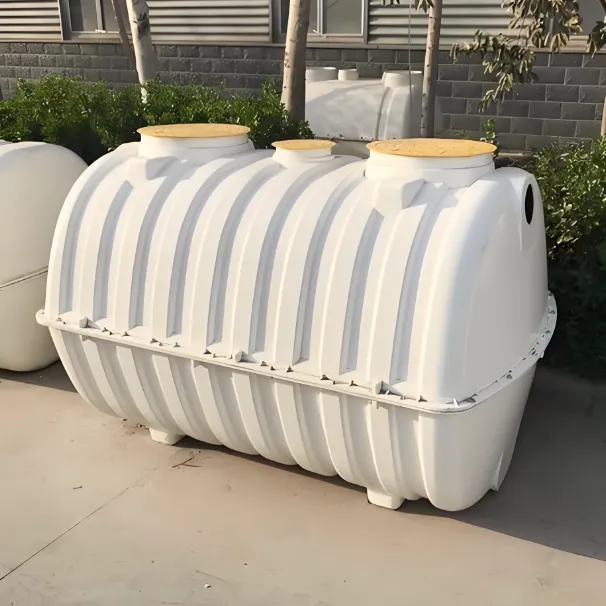

This 2000-liter capacity septic tank is crafted from high-quality fiberglass reinforced plastic (FRP) using a one-piece rotational molding technique. The DN100 inlet and outlet pipes are precisely integrated into the tank body, and the leak-proof design eliminates any risk of sewage leakage. The tank is lightweight yet strong, easy to install, and requires minimal maintenance. It is ideal for underground installation in residential villas, small communities, schools, and rural sanitation projects.
Technical Specifications
| Parameter | Value |
| Capacity | 2000 Liters |
| Overall Length (mm) | ~2200 |
| Overall Diameter (mm) | ~1200 |
| Wall Thickness (mm) | 6–10 (customizable) |
| Inlet/Outlet Diameter | DN100 (100 mm) |
| Weight (kg) | ~130 |
| Material | FRP (Fiberglass + Polyester Resin) |
| Design Pressure | 0.5 MPa (tested) |
| Operating Temperature | -20°C to 60°C |
Key Features & Benefits
- One-Piece Molding & Leak-Proof: The tank is manufactured in a single piece without any seams or joints. This eliminates the risk of leakage, which is a common problem with concrete or multi-piece plastic tanks. The integrated structure also prevents ground water infiltration and ensures long-term reliability.
- High Corrosion Resistance: FRP material is inherently resistant to chemicals, acids, and alkalis present in sewage. Unlike steel tanks, it will never rust, and unlike concrete, it will not crack or degrade over time. This extends the service life to 30+ years under normal conditions.
- Lightweight & Easy Installation: The tank weighs only about 130 kg, much lighter than concrete alternatives. It can be easily transported and installed by a small crew without heavy machinery. The DN100 inlet/outlet connections are compatible with standard PVC pipes, making site connection straightforward.
- Customizable Design: We offer customization of wall thickness, color, pipe orientation, and additional manhole openings. The tank can be tailored to meet specific local regulations or project requirements. Optional anti-buoyancy anchoring systems are available.
- Efficient Wastewater Treatment: The 2000L capacity provides sufficient retention time for primary settling and anaerobic digestion. The tank is designed to be used as a first chamber in a septic system, or as a standalone tank for collecting and storing sewage. It can be combined with a secondary treatment unit if needed.
- Environmentally Friendly: FRP is a recyclable material, and the manufacturing process produces minimal waste. The leak-proof design protects groundwater from contamination, supporting sustainable sanitation.
Quality Assurance
Our factory operates under ISO9001:2015 and ISO9000 certified quality management systems. Every tank undergoes rigorous testing including hydrostatic pressure test, leak test, and dimensional inspection. The annual export value of our company is between US$2.5 million and US$5 million, serving markets across North America, South America, Europe, Southeast Asia, Africa, and Oceania. With 101-200 employees and a dedicated R&D team, we continuously improve product design to meet international standards.
Application Scenarios
- Residential villas and single-family homes
- Small commercial buildings (restaurants, hotels, offices)
- Schools, hospitals, and rural communities
- Construction sites and temporary facilities
- Off-grid and eco-friendly sanitation projects
Frequently Asked Questions (FAQ)
Q1: What is the lifespan of this FRP septic tank?
A: Under normal soil conditions and proper installation, the tank can last 30 years or more. The FRP material does not corrode, rust, or degrade like concrete or steel. We provide a standard 5-year warranty against manufacturing defects.
Q2: Is the tank safe for underground installation with heavy traffic?
A: The tank is designed for burial at depths up to 1.5 meters without concrete encasement. For areas with vehicle traffic, we recommend a reinforced concrete cover slab or additional structural support. The tank's wall thickness can be increased upon request to withstand higher loads.
Q3: How do I connect the inlet and outlet pipes?
A: The tank comes with DN100 (4-inch) pipe stubs already integrated into the body. You can connect standard PVC or HDPE pipes using rubber couplings or solvent cement. The connections are designed to be leak-proof and easy to seal.
Q4: Can the tank be used for both blackwater and greywater?
A: Yes, the 2000L tank is suitable for treating combined household wastewater. However, for optimal performance, we recommend using it primarily for blackwater (toilet waste) and routing greywater (kitchen, laundry) to a separate system or after the tank, depending on local regulations.
Q5: What maintenance is required?
A: Routine maintenance includes periodic inspection of the inlet/outlet pipes and removal of accumulated sludge every 2-5 years, depending on usage. The tank has no moving parts, so maintenance is minimal. Our design includes a large inspection opening for easy access.
Q6: Do you provide installation instructions or technical support?
A: Yes, we provide a detailed installation manual with each shipment. Our technical team is available for online support and can answer any questions during installation. We also offer custom engineering drawings for large projects.
Q7: Can the tank be installed in high groundwater areas?
A: The one-piece leak-proof design makes it suitable for high groundwater conditions. However, we recommend using an anti-buoyancy anchor system (available as an option) to prevent the empty tank from floating. The tank's weight and proper backfill will also help stabilize it.
Q8: Is this product certified for export?
A: Our factory holds ISO9001 and ISO9000 certifications. The tank can be manufactured to meet specific standards required by your country, such as AS/NZS 1546 (Australia), EN 12566 (Europe), or ASTM D4097 (USA). Please contact us with your requirements for compliance verification.
Why Choose Hengshui Ruibin New Materials LLC?
Since our establishment in 2019, we have grown into a reliable FRP manufacturer with a strong export presence. Our factory spans 1,000-3,000 square meters and employs 101-200 skilled workers. We ship through the ports of Tianjin and Qingdao, with efficient logistics to all major regions. With an annual export value of US$2.5-5 million, we have served clients in North America, South America, East Europe, Southeast Asia, Africa, Oceania, and the Middle East. Our products are backed by ISO9001 quality systems, and we offer competitive pricing without compromising on quality. We invite you to request a quote or sample to experience the durability and performance of our FRP septic tanks. Contact our sales team today for customized solutions tailored to your project needs.
