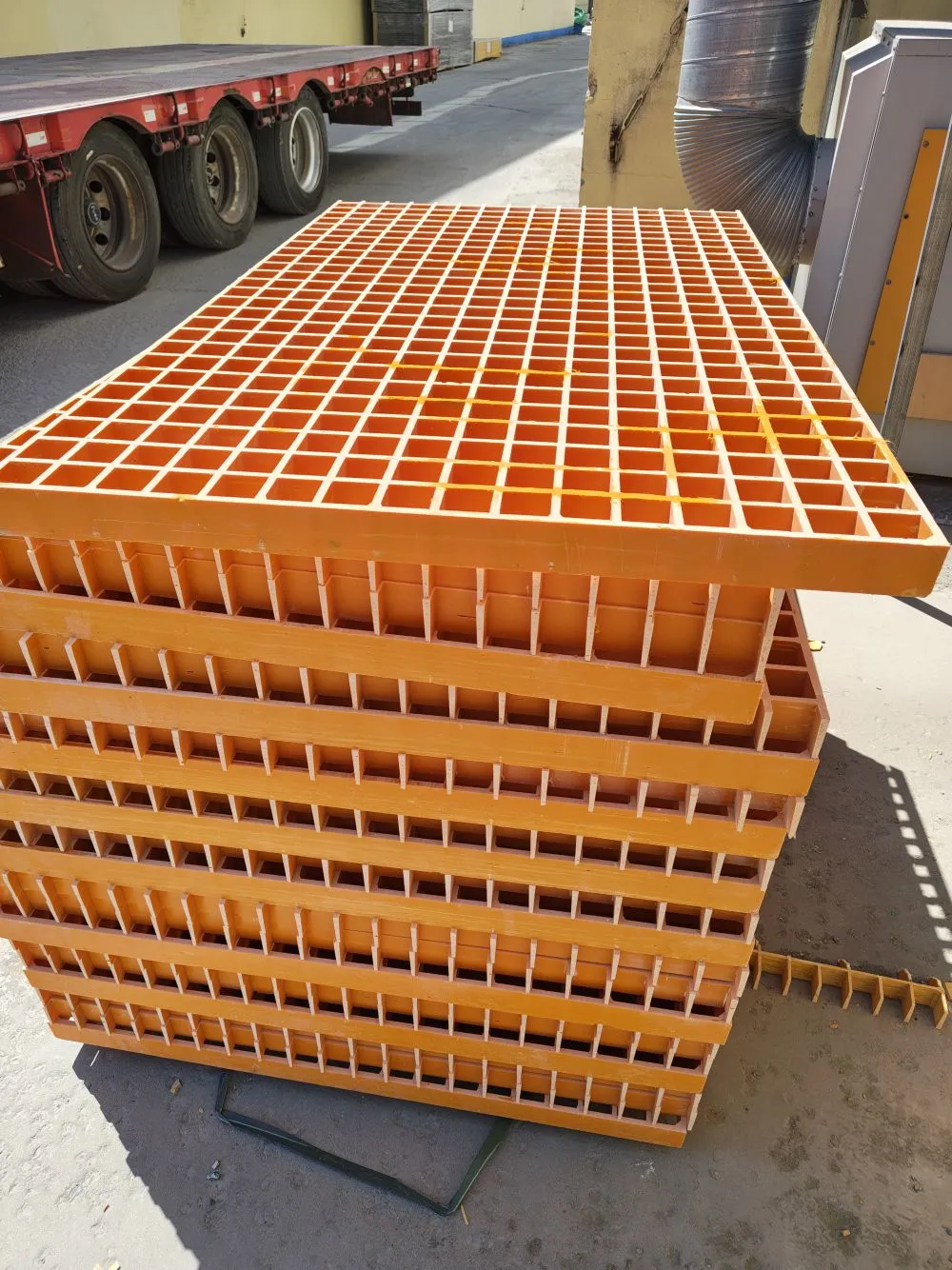

Fiberglass Reinforced Plastic Grating Yellow Color 38mm Thickness Fire Retardant Class B
Product Spotlights
38mm thick yellow FRP grating with Class B fire retardancy, combining corrosion resistance, lightweight strength, and slip safety. Ideal for heavy-duty industrial walkways, platforms, and chemical plants. ISO9001 certified, customizable size and surface, with low maintenance and long service life.
Negotiable
MOQ: 300 Blades (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Fiberglass Reinforced Plastic (FRP)
Color:
Yellow
Thickness:
38mm
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FRP Molded Grating Free Sample Available Mill Test Report Provided per RequestNegotiableMOQ: 300 Blades -
Fiberglass Reinforced Plastic Grating 38mm Thickness 1220x3660mm Panels With Anti-Slip SurfaceNegotiableMOQ: 300 Blades
-
FRP Grating 2.5m x 4m Sheets 50mm Bar Spacing Standard CompliantNegotiableMOQ: 300 Blades
-
FRP Grating Used in Marine Docks and Offshore Platforms, Saltwater ResistantNegotiableMOQ: 300 Blades
-
FRP Grating With 5-Year Warranty, Mill Test Report Included for Quality AssuranceNegotiableMOQ: 300 Blades
Material
Fiberglass Reinforced Plastic (FRP)
Color
Yellow
Thickness
38mm
Fire Retardant Class
Class B (meets ASTM E84)
Surface
Concave-convex or gritted (optional)
Load Type
Heavy-duty industrial
Application
Walkways, platforms, trenches, chemical plants
Standard
ISO9001:2015, ISO9000 certified
Hengshui Ruibin New Materials LLC, a professional manufacturer established in 2019 with a 1,000-3,000 square meter factory and over 101 employees, proudly presents our Fiberglass Reinforced Plastic (FRP) Grating in Yellow Color with a 38mm thickness and Fire Retardant Class B rating. This high-performance grating is designed to meet the rigorous demands of industrial environments where safety, durability, and corrosion resistance are paramount. Our product is engineered to provide superior load-bearing capacity, slip resistance, and long-term reliability, making it an ideal choice for platforms, walkways, trenches, and chemical facilities. With annual export values reaching US$2.5–5 million, we serve markets across North America, South America, Europe, Asia, Africa, and Oceania, ensuring consistent quality and timely delivery from Tianjin and Qingdao ports.
Product Features & Technical Specifications
- Material: High-quality fiberglass reinforced plastic (FRP) with premium polyester or vinyl ester resin, offering excellent corrosion resistance against chemicals, moisture, and UV exposure.
- Color: Standard yellow for high visibility and safety compliance; other colors available upon request.
- Thickness: 38mm (1.5 inches) – designed for heavy-duty applications.
- Fire Retardant Class B: Complies with ASTM E84 (Class B flame spread rating), ensuring reduced fire risk in industrial settings.
- Surface Options: Concave-convex anti-slip surface or gritted top for enhanced traction, even in wet or oily conditions.
- Load Capacity: Supports uniform loads up to 1,500 kg/m² (typical for 38mm grating) – suitable for pedestrian traffic, light vehicular use, and equipment access.
- Weight: Approximately 10–12 kg/m² (varies with resin type and mesh design), making it lightweight for easy installation and structural support.
- Panel Size: Standard 1.22m × 3.66m (4ft × 12ft) or custom sizes available.
- Mesh Pattern: 38mm × 38mm (1.5″ × 1.5″) square grid, providing consistent strength and open area.
- Certification: Manufactured under ISO9001:2015 and ISO9000 quality management systems, ensuring consistent product quality.
| Parameter | Value |
|---|---|
| Thickness | 38 mm (1.5″) |
| Fire Retardant Class | Class B (ASTM E84) |
| Color | Yellow |
| Standard Panel Size | 1.22m × 3.66m (4′ × 12′) |
| Load Capacity (Uniform) | Up to 1,500 kg/m² |
| Weight per m² | ~10–12 kg |
| Resin Type | Polyester / Vinyl Ester (optional) |
| Surface Treatment | Concave-convex or gritted |
Key Advantages for Your Business
- Corrosion Resistance: Unlike steel, FRP does not rust or corrode when exposed to chemicals, seawater, or wastewater – ideal for chemical plants, wastewater treatment, and marine environments.
- Fire Safety: Class B fire retardancy reduces flame spread, meeting stringent safety codes for industrial facilities, oil & gas platforms, and public buildings.
- Lightweight & Strong: At only 10–12 kg/m², this grating is easy to handle, cut, and install, reducing labor costs and structural load requirements.
- Slip Resistance: The yellow color with optional gritted surface enhances visibility and provides excellent slip resistance, minimizing workplace accidents.
- Low Maintenance: No painting, coating, or regular upkeep needed – saves time and money over the product lifecycle.
- Customizable: Available in different sizes, colors, resin types, and surface finishes to match specific project requirements.

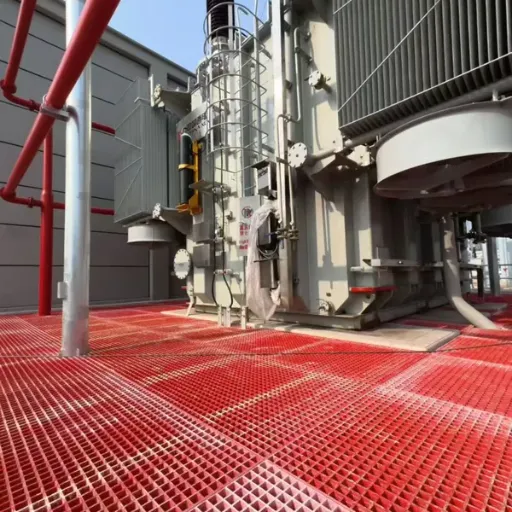

- Non-Conductive: FRP is electrically non-conductive, making it safe for use in electrical substations, power plants, and other areas where electrical hazards exist.
- Environmental Resistance: Withstands extreme temperatures (-40°C to 80°C), UV radiation, and heavy impact without compromising structural integrity.
Trust & Reliability from Hengshui Ruibin New Materials LLC
As a dedicated manufacturer since 2019, we have grown to over 101 employees and operate a 1,000–3,000 m² factory equipped with advanced pultrusion and molding technologies. Our annual export value of US$2.5 million to US$5 million reflects the trust placed in us by clients across North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, and more. We are proud to hold ISO9001:2015 and ISO9000 certifications, ensuring that every batch of FRP grating meets strict quality standards. Our products are shipped from the Port of Tianjin and Port of Qingdao, with reliable logistics covering domestic and international destinations. By choosing our yellow 38mm Class B fire retardant FRP grating, you are investing in a proven solution that combines safety, durability, and cost-effectiveness. We invite you to contact us for samples, technical data sheets, or customized quotations – our team is ready to support your project from concept to installation.
Frequently Asked Questions (FAQ)
-
Q: What is the maximum load capacity of the 38mm FRP grating?
A: The uniform load capacity can reach up to 1,500 kg/m² depending on the resin type and mesh design. For specific load calculations, please provide your span and loading conditions, and we can offer a tailored recommendation. -
Q: Can I cut the grating on-site to fit my project?
A: Yes, FRP grating can be easily cut using standard tools such as a diamond saw or carbide-tipped blade. We also offer custom cutting and fabrication services to save you time. -
Q: Is the yellow color UV-stable and will it fade over time?
A: Our FRP grating uses UV-stabilized pigment in the resin, which provides good resistance to fading. However, prolonged outdoor exposure may cause slight color change; we recommend using a UV-resistant top coating for extreme environments. -
Q: What is the fire retardant Class B equivalent to in other standards?
A: Class B per ASTM E84 corresponds to a flame spread index of 26–75. It is commonly accepted for many industrial and commercial applications, and can be tested to other standards such as BS 476 or EN 13501 upon request. -
Q: Do you offer gritted surface for better slip resistance?
A: Yes, we offer both standard concave-convex surface and a gritted (silica sand) top layer. The gritted surface provides higher slip resistance, especially in oily or wet conditions. -
Q: What is the lead time for a typical order?
A: Standard sizes and colors are usually in stock, with lead times of 7–15 days. For custom orders, production typically takes 15–25 days depending on quantity and complexity. Please contact us for accurate scheduling. -
Q: Can I get a sample before placing a bulk order?
A: Absolutely. We provide free samples (shipping charge may apply) for quality evaluation. Just reach out to our sales team with your requirements. -
Q: Is this grating suitable for use in food processing plants?
A: Yes, with the appropriate resin (e.g., vinyl ester) and smooth surface, our FRP grating is non-absorbent, easy to clean, and resistant to many food-grade chemicals. It meets FDA guidelines for indirect food contact when properly specified.
