Welcome to Hengshui Ruibin New Materials LLC – your trusted manufacturer of Factory Direct FRP Grating since 2019. As a professional FRP grating producer with a factory spanning 1,000–3,000 square meters and a team of 101–200 skilled employees, we are dedicated to delivering high-quality, custom-sized fiberglass grating solutions that meet your exact project requirements. Every order comes with a 1-year warranty and dedicated technical support, ensuring your investment is protected and your application runs smoothly. Whether you need grating for industrial platforms, marine walkways, or chemical plant flooring, our direct factory pricing and flexible customization options give you the competitive edge.
Product Overview

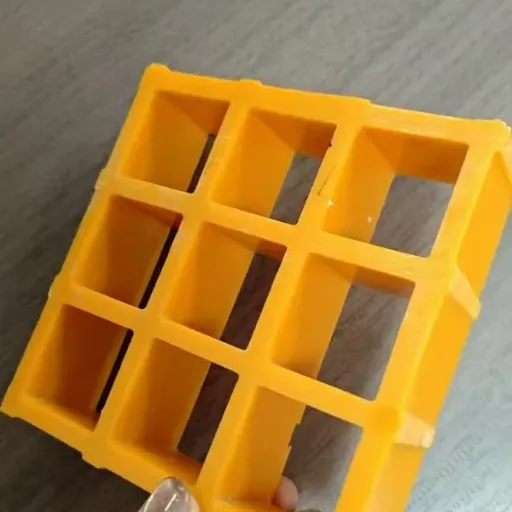

FRP (Fiberglass Reinforced Plastic) Grating is a high-performance composite material designed to replace traditional steel, aluminum, or wood grating in corrosive environments. Our product is manufactured using a mold compression process, creating a one-piece, non-slip, and corrosion-resistant grid that is lightweight yet strong. The custom sizes we offer allow you to order exactly the dimensions you need – no wasted material, no extra cutting costs. Combined with our 1-year warranty and technical support from our experienced engineering team, you get a reliable, long-lasting solution backed by a manufacturer that understands your business.
| Specification | Standard Range | Custom Options |
|---|---|---|
| Panel Thickness | 1" (25mm), 1.5" (38mm), 2" (50mm) | Up to 2.5" (63mm) available |
| Mesh Size (Center-to-Center) | 1.5" x 1.5", 2" x 2", 3" x 3" | Custom mesh patterns |
| Load Capacity | Light duty (up to 100 psf), Medium duty (up to 200 psf), Heavy duty (up to 400 psf) | Engineered for specific loads |
| Surface Finish | Concave (grit top) or Smooth top | Anti-slip grit embedded |
| Color | Yellow, Green, Gray, Red | Custom colors (minimum order may apply) |
| Resin Type | Polyester, Vinyl Ester, Phenolic | Fire retardant, UV resistant |
Key Features & Benefits
- Corrosion Resistance: FRP grating will not rust, rot, or degrade in harsh chemical environments – ideal for wastewater treatment, chemical plants, and marine applications.
- Lightweight & Easy Installation: Approximately 1/4 the weight of steel grating, reducing structural load and simplifying handling and installation. No heavy lifting equipment needed.
- Non-Conductive & Non-Magnetic: Safe for electrical environments and sensitive equipment. Does not interfere with magnetic fields.
- Slip Resistance: Available with grit top surface (concave) for superior traction, even in wet or oily conditions.
- Custom Sizes: We cut panels to your exact dimensions – length, width, and even cutouts for pipes or columns. This eliminates on-site cutting and waste.
- 1-Year Warranty: Covers manufacturing defects and material quality. Our warranty team is responsive and reliable.
- Technical Support: Our engineers provide load calculation, layout design, and installation guidance. Just ask – we are here to help.
- Low Maintenance: No painting, coating, or galvanizing required. Simple wash-down keeps it clean.
Applications
- Industrial Platforms & Walkways – Durable, slip-resistant flooring for factories, refineries, and power plants.
- Marine & Offshore – Decking, gangways, and dock surfaces that resist saltwater corrosion.
- Chemical Processing – Flooring for chemical storage areas, battery rooms, and acid handling zones.
- Water & Wastewater Treatment – Trench covers, filter bed walkways, and tank platforms.
- Commercial & Public – Pedestrian bridges, grating for pool decks, and architectural features.
Why Choose Hengshui Ruibin New Materials LLC?
We are a manufacturer – not a middleman. Our factory direct model means you get competitive pricing without sacrificing quality. With an annual export value of US$2.5 million – US$5 million, we ship to markets across North America, South America, Europe, Asia, Africa, and Oceania via Port of Tianjin or Port of Qingdao. Our ISO9001 & ISO9000 certifications ensure consistent quality control in every production batch. Our team of 101–200 employees includes experienced R&D, production, and quality assurance professionals who are committed to delivering on time and to your specifications. We have supplied FRP grating to hundreds of satisfied customers worldwide – your project is in expert hands.
Frequently Asked Questions
Q1: What is the minimum order quantity (MOQ) for custom sizes?
A: Our MOQ for custom-sized FRP grating is typically 50 square meters. However, we can accommodate smaller orders for sample or trial purposes – please contact our sales team.
Q2: Can you provide load capacity data for my specific application?
A: Yes. Our technical support team can provide load tables and engineering calculations based on your span, thickness, and required safe load. Just share your project details.
Q3: What does the 1-year warranty cover?
A: The warranty covers defects in material and workmanship under normal use conditions. It does not cover damage from misuse, abuse, or improper installation. We will replace or repair defective panels at no cost.
Q4: How long does delivery take?
A: Standard lead time is 15–25 working days after order confirmation, depending on size and customization. Urgent orders can be expedited – please inquire.
Q5: Can I get a sample before placing a bulk order?
A: Absolutely. We offer small sample panels (e.g., 300mm x 300mm) for a nominal fee plus shipping. The sample cost is refundable with your first order.
Q6: Is FRP grating UV resistant?
A: Standard FRP grating has moderate UV resistance. For outdoor applications with prolonged sun exposure, we recommend adding UV inhibitors to the resin. This is a customization option.
Q7: How do I install FRP grating?
A: Installation is straightforward using clips, bolts, or adhesives. We provide an installation guide with every order, and our technical support team can answer any questions you have.
Q8: What payment terms do you accept?
A: We accept T/T (wire transfer), L/C at sight, and for regular customers, 30% deposit + 70% balance before shipment. Other terms are negotiable.
Ready to Order? Contact us today for a quote on your custom FRP grating. With our factory-direct pricing, 1-year warranty, and responsive technical support, you can trust Hengshui Ruibin New Materials LLC to deliver the right solution for your project. We look forward to partnering with you!
