HARTING 09562515500 D-Sub High Density Female Connector
Product Overview

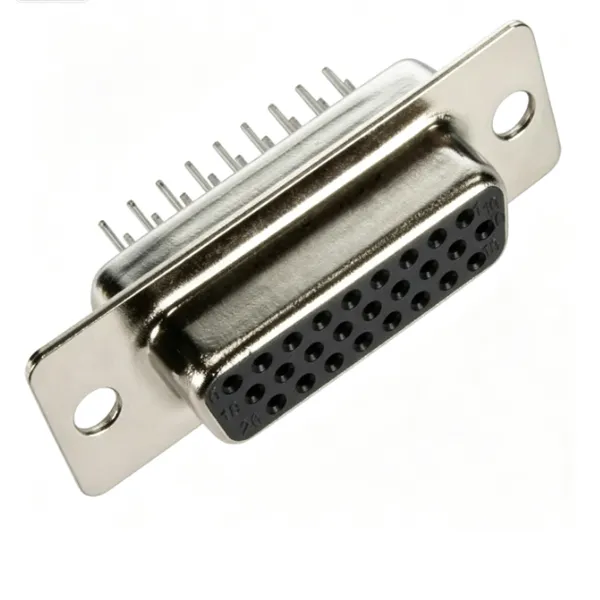

HARTING 09562515500 is a D-Sub High Density female connector designed for reliable PCB and industrial electronic connection applications.
The connector features 26 contacts in a high-density D-Sub configuration. It uses straight stamped contacts and a through-hole PCB mounting design with wave soldering termination.
The connector is designed with a glass-fibre filled PBTP insert and a nickel-plated steel shell. Copper alloy contacts provide reliable electrical performance, with a noble metal over nickel surface on the mating side and tin over nickel on the termination side.
Key Features
• Original HARTING D-Sub connector
• High Density configuration
• Female connector
• 26 contact positions
• Straight stamped contacts
• Through-hole PCB mounting
• Wave soldering termination
• Rated current: 2A
• D-Sub Size 2
• Nickel-plated steel shell
• Copper alloy contacts
• Black glass-fibre filled PBTP insert
• Performance level NM 30 (S4)
• Fixing flange with feed through hole
• Suitable for industrial electronic applications
Technical Specifications
Brand: HARTING
Manufacturer Part Number: 09562515500
HARTING Part Number: 09 56 251 5500
Series: D-Sub
Identification: High Density
Product Type: Female D-Sub Connector
Number of Contacts: 26
Contact Description: Stamped Straight
Gender: Female
Size: D-Sub 2
Mounting Type: Through Hole PCB Mount
Termination Method: Wave Soldering
Rated Current: 2A
Contact Material: Copper Alloy
Mating Side Surface: Noble Metal over Nickel
Termination Side Surface: Tin over Nickel
Contact Resistance: Less than 20 mΩ
Insulation Resistance: More than 5 × 10⁹ Ω
Operating Temperature: -40°C to +85°C
Mating Cycles: Minimum 500
Test Voltage: 1 kV RMS
Performance Level: NM 30 (S4)
Insert Material: Glass-Fibre Filled Thermoplastic Resin (PBTP)
Shell Material: Steel
Shell Plating: Nickel Plated
Insert Color: Black
Flammability Rating: UL 94 V-0

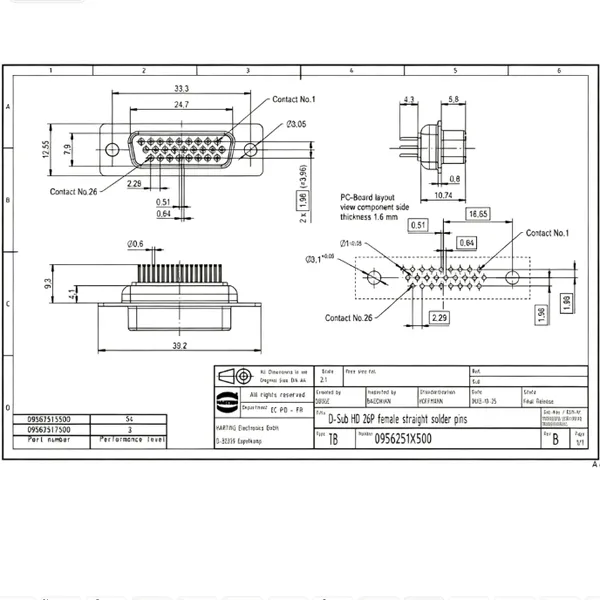

PCB Thickness: 1.6 mm
Installation Height: 4.1 mm
Distance Between Rows: 1.98 mm
Contact Spacing: 2.29 mm
Locking Type: Fixing Flange with Feed Through Hole Ø 3.1 mm
Standard: DIN 41652
Applications
HARTING 09562515500 is suitable for a wide range of industrial and electronic applications, including:
• Industrial automation equipment
• Control systems
• PCB connection applications
• Industrial computers
• Measurement and testing equipment
• Communication equipment
• Data and signal transmission systems
• Electronic control devices
Packaging
Packaging Size: 100 Pieces
Important Note
This product is a complete D-Sub High Density female connector. Please verify the number of contacts, PCB mounting dimensions, connector size and compatibility requirements before placing an order.
