HARTING 09670150343 D-Sub 15 Pole Full Metal Hood Top Entry Backshell
Product Overview
HARTING 09670150343 is a full metal D-Sub hood designed for compatible 15-pole D-Sub connector assemblies.
The product features a shell housing with a straight top cable entry. The screwable cover provides mechanical protection for the connector assembly and supports organized cable routing.

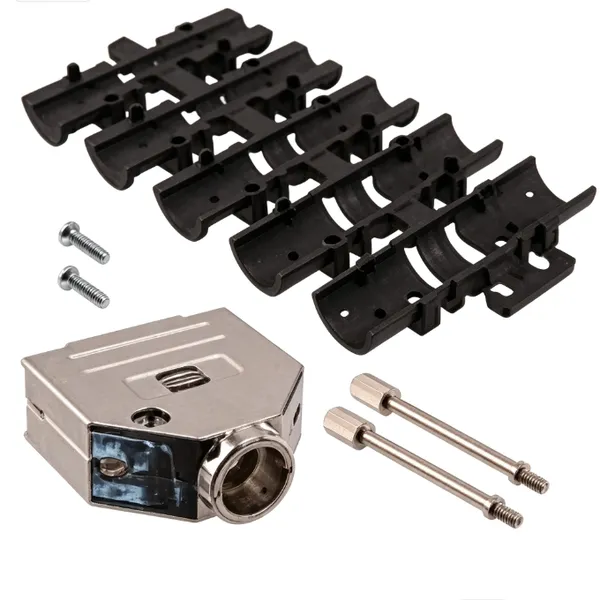

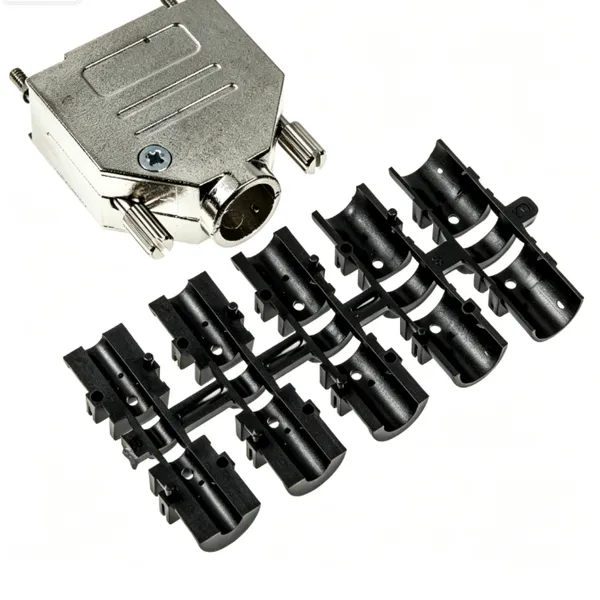

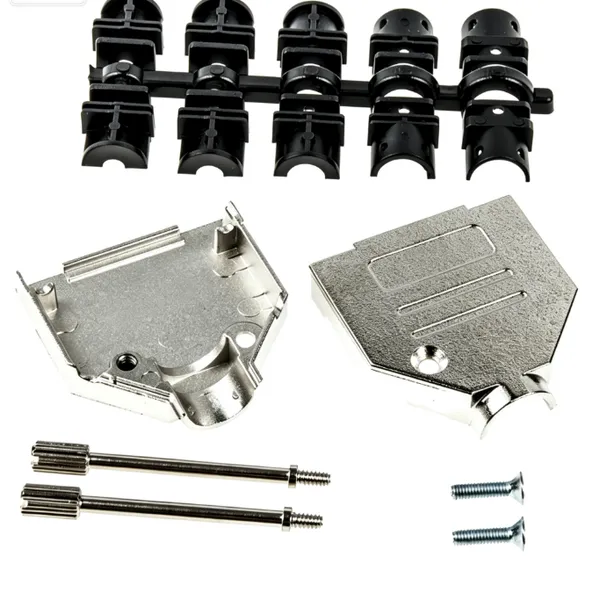

The metal hood is equipped with 4-40 UNC knurled screw locking and includes grommet set halves for cable assembly applications.
Key Features
• Original HARTING D-Sub connector accessory
• Full metal D-Sub hood
• Designed for 15-pole D-Sub connector assemblies
• D-Sub Size 2
• Top cable entry
• Straight cable entry configuration
• One cable entry
• Metal shell housing
• Screwable cover
• 4-40 UNC knurled screw locking
• Grommet set halves included
• Suitable for industrial cable assemblies
• Provides mechanical connector protection
Technical Specifications
Brand: HARTING
Manufacturer Part Number: 09670150343
HARTING Part Number: 09 67 015 0343
Series: D-Sub
Product Category: Hoods / Housings
Product Type: D-Sub Metal Hood
Housing Type: Shell Housing
Number of Positions: 15 Pole
D-Sub Size: D-Sub 2
Cable Entry: Top Entry
Cable Exit Type: Straight Entry
Number of Cable Entries: 1
Housing Material: Metal
Cover Type: Screwable Cover
Locking Type: Knurled Screw
Thread Type: 4-40 UNC
Included Accessory: Grommet Set Halves
Application: Industrial D-Sub Cable Assembly
RoHS Status: Compliant with Exemption
ELV Status: Compliant with Exemption
Applications
HARTING 09670150343 is designed for compatible D-Sub connector assemblies requiring mechanical protection and organized cable routing.
Typical applications include:
• Industrial automation equipment
• Industrial computers
• Control systems
• Communication equipment
• Electronic control equipment
• Data transmission systems
• Measurement instruments
• Testing equipment
• Industrial D-Sub cable assemblies
Product Advantages
The full metal housing provides reliable mechanical protection for compatible D-Sub connector assemblies.
The top-entry configuration allows straight cable routing from the connector assembly.
The screwable cover and 4-40 UNC knurled screw locking system provide secure mechanical assembly.
The included grommet set halves help support cable installation and protection.
Important Note
This product is a D-Sub metal hood and shell housing accessory. It is not a complete electrical D-Sub connector and does not include the connector insert or electrical contacts.
Please verify the connector size, number of positions, cable dimensions and installation requirements before ordering.
