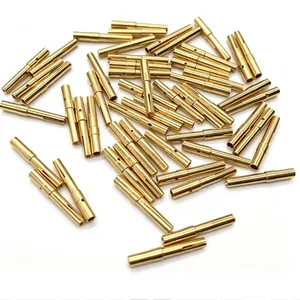

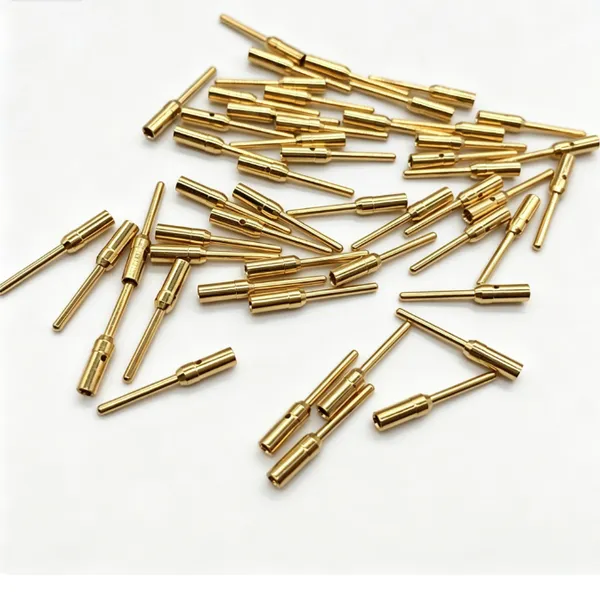

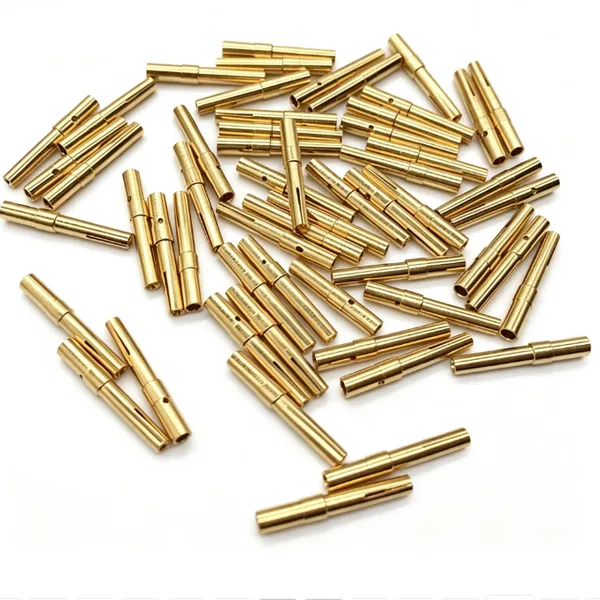

HARTING 09670008576 D-Sub Male Crimp Contact
Product Overview
HARTING 09670008576 is a D-Sub series male pin crimp contact designed for reliable electrical connections in compatible D-Sub connector systems.
The contact features a turned contact construction and a male pin design. It is suitable for conductors with a cross-section of 0.25 to 0.52 mm², corresponding to AWG 24 to AWG 20.
The contact is manufactured from copper alloy and features a noble metal over nickel contact surface. Crimp termination provides a secure and reliable wire connection for industrial signal and data transmission applications.
Key Features
• Original HARTING D-Sub connector contact
• Male pin contact design
• Turned contact construction
• Crimp termination
• Suitable for AWG 24 to AWG 20 conductors
• Suitable for 0.25 to 0.52 mm² conductors
• Copper alloy contact material
• Noble metal over nickel contact surface
• Contact resistance ≤10 mΩ
• Suitable for industrial D-Sub connector assemblies
• RoHS compliant
Technical Specifications
Brand: HARTING
Manufacturer Part Number: 09670008576
HARTING Part Number: 09 67 000 8576
Series: D-Sub
Product Category: Connector Contact
Product Type: Crimp Contact
Contact Design: Male Pin
Gender: Male
Manufacturing Process: Turned Contact
Termination Method: Crimp
Mounting Type: Wire Mount
Conductor Cross Section: 0.25–0.52 mm²
Wire Gauge: AWG 24–20
Contact Material: Copper Alloy
Contact Surface: Noble Metal over Nickel
Contact Resistance: ≤10 mΩ
Stripping Length: 4.5 mm
Performance Level: 1 according to CECC 75301-802
RoHS Status: Compliant
ELV Status: Compliant
Packaging: Bulk
Applications
HARTING 09670008576 is suitable for compatible D-Sub connector systems and industrial electronic connection applications.
Typical applications include:
• Industrial automation equipment
• Control systems
• Industrial computers
• Electronic equipment
• Signal transmission systems
• Data communication equipment
• Measurement and testing equipment
• D-Sub connector assemblies
Important Note
This product is an individual male crimp contact and is not a complete D-Sub connector.
Compatible D-Sub connector housings and inserts may need to be ordered separately. Please verify the wire size, connector compatibility and application requirements before ordering.
