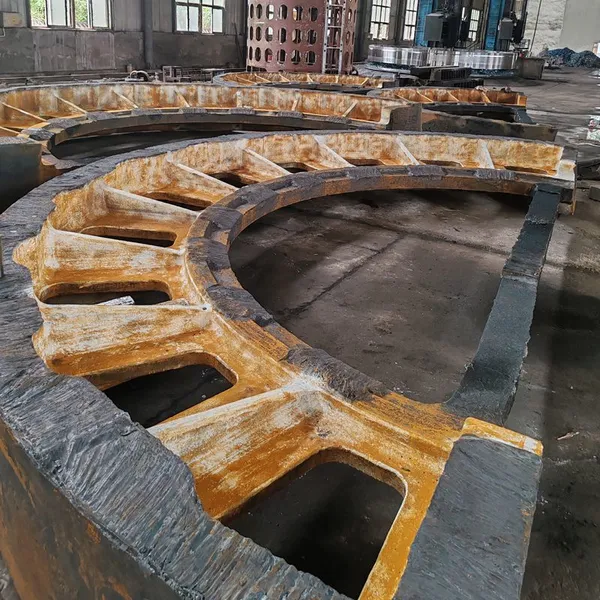

Module 20 Segmented Girth Gear, 42CrMo4 Alloy Steel, Through-Hardened, AGMA 12 Precision
Product Spotlights
Premium 42CrMo4 alloy steel through-hardened to 250–300 HB ensures exceptional wear resistance and load capacity. AGMA 12 precision guarantees smooth, quiet operation with minimal energy loss. Segmented design simplifies installation and maintenance in confined spaces. Customizable modules, diameters up to 12,000 mm, and strict quality control (ISO 9001 certified) make this gear a reliable long-term investment for heavy industries.
US$ 1000
≥1 Piece
Key Specifications
Get Latest Price
Material:
42CrMo4 Alloy Steel
Module:
20
Precision Grade:
AGMA 12
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao|tianjin
Delivery Detail:
30 days
Related Products
-
Φ4000mm Segmented Girth Gear, 200 Teeth, 35CrMo Steel, Induction HardenedUS$ 1000MOQ: 1 Piece -
Module 25 Segmented Girth Gear, 300mm Face Width, ZG42CrMo, Quenched & Tempered, DIN 6US$ 1000MOQ: 1 Piece
-
Module 30 Segmented Girth Gear, 40CrNiMo, Carburized & Hardened, HRC58-62US$ 1000MOQ: 1 Piece
-
Segmented Girth Gear With 24-Month Warranty, Technical Support and Installation GuidanceUS$ 1000MOQ: 1 Piece
-
Segmented Girth Gear With 1-Year Warranty, Mill Test Report, Standard CompliantUS$ 1000MOQ: 1 Piece
Material
42CrMo4 Alloy Steel
Module
20
Precision Grade
AGMA 12
Heat Treatment
Through-Hardened
Type
Segmented Girth Gear
Application
Cement mills, rotary kilns, mining equipment
Manufacturing Process
Forging + machining (customizable)
Surface Treatment
Black oxide, anti-corrosion coating (optional)
Segments Quantity
Customizable per design
Certification
ISO 9001, ISO 14000, OHSAS 18001 (available)
Welcome to Henan San Kuang Machinery Technology Co., Ltd. – your trusted partner in heavy-duty industrial gearing solutions. Since our establishment in 2014, we have been dedicated to manufacturing high-precision segmented girth gears that meet the most demanding requirements of global industries. Our Module 20 Segmented Girth Gear is crafted from premium 42CrMo4 alloy steel, undergoes a full through-hardening process, and is machined to AGMA 12 precision – ensuring exceptional durability, load capacity, and operational reliability. Designed for large-scale applications such as cement mills, rotary kilns, and mining equipment, this gear offers the perfect balance of strength and accuracy, backed by our state-of-the-art 10,000–30,000 m² factory and a team of 51–100 experienced professionals.
Key Features & Technical Specifications
- Superior Material: 42CrMo4 alloy steel offers excellent hardenability, high tensile strength, and resistance to wear and fatigue – ideal for heavy shock loads.
- Through-Hardened Heat Treatment: Uniform hardness throughout the tooth profile and core, ensuring consistent performance under extreme pressures.
- AGMA 12 Precision: Achieves tight tolerances for smooth meshing, reduced noise, and minimal vibration, extending gear life.
- Segmented Design: Facilitates easier transportation, installation, and maintenance in confined spaces; segments are bolted together with precision alignment.
- Customizable Module & Geometry: Module 20 is standard; other modules and tooth profiles are available upon request to match your specific drive system.
- Comprehensive Quality Control: Each gear undergoes ultrasonic testing, magnetic particle inspection, and dimensional verification using CMM equipment.
| Parameter | Value |
| Module | 20 |
| Material | 42CrMo4 (1.7225) |
| Hardness Range | 250–300 HB (through-hardened) |
| Precision Grade | AGMA 12 (equivalent to DIN 8–9) |
| Max Outer Diameter | Up to 12,000 mm (customizable) |
| Number of Segments | 2–8 (as per design) |
| Surface Treatment | Black oxide, phosphating, or anti-corrosion coating (optional) |
Benefits to Your Operations
- Reduced Downtime: The segmented design allows quick replacement of individual sections without removing the entire gear, minimizing maintenance shutdowns.
- Longer Service Life: Through-hardened 42CrMo4 resists pitting, cracking, and plastic deformation, even in abrasive environments like cement plants.
- Energy Efficiency: AGMA 12 precision ensures optimal tooth contact, reducing friction losses and power consumption.
- Global Compatibility: Designed to match international standards, our gears integrate seamlessly with existing OEM equipment from leading manufacturers.
Trust & Reliability – Why Choose Henan San Kuang?
With an annual export value of US$2.5–5 million and a factory spanning 10,000–30,000 m², we have the capacity and expertise to deliver on time. Our products are backed by multiple certifications including ISO 9001, ISO 14000, OHSAS 18001, and others, reflecting our commitment to quality, environment, and safety. We serve markets across North America, South America, Europe, Asia, Africa, and Oceania, shipping from major ports like Shanghai, Qingdao, Lianyungang, and Tianjin. Every gear is accompanied by a detailed inspection report and warranty. Contact us today for a customized solution that meets your exact specifications.
Frequently Asked Questions
-
What is the typical lead time for a segmented girth gear?
Lead time depends on size and complexity, but generally ranges from 8 to 16 weeks. We can expedite urgent orders with prior arrangement. -
Can you machine the gear to match an existing pinion?
Yes, we can reverse-engineer your existing pinion and gear dimensions to ensure perfect meshing. Please provide drawings or worn samples. -
How are the segments joined together?
Segments are precisely machined with mating surfaces and bolted using high-strength fasteners. Dowel pins ensure alignment. Detailed assembly instructions are provided. -
What is the maximum weight per segment?
We can handle segments up to 15 tons individually. For larger gears, we design lightweight segments to facilitate handling. -
Do you offer field installation support?
We provide technical guidance and on-site training upon request. Our engineering team can also supervise initial installation. -
Is the 42CrMo4 material suitable for high-temperature environments?
42CrMo4 retains strength up to about 400°C. For higher temperatures, we can recommend alternative materials like 4340 or heat-resistant alloys. -
What inspections are performed before shipment?
Every gear undergoes dimensional inspection, hardness testing, magnetic particle inspection for surface cracks, and ultrasonic testing for internal defects. A certificate of conformance is issued. -
Can you provide a design for a specific module other than 20?
Absolutely. We can customize module, pressure angle, number of teeth, and face width to your requirements. Contact our engineering team with your specifications.
