Industry Pain Points and Solutions: In traditional water park projects, the safety and durability of equipment have long troubled operators - the interfaces of slides are prone to aging, the structures of children's water villages are unstable, and poor water flow control in the slides leads to a poor visitor experience, while the maintenance cost remains high. At the same time, many small - scale parks lack professional design, resulting in low space utilization and serious homogenization of equipment, making it difficult to attract repeat customers. Henan Boyue Amusement Equipment Co., Ltd., a manufacturer with more than a decade of in - depth experience in the industry, deeply understands these pain points. Relying on our independently developed enhanced fiberglass process and precise connection technology, we have comprehensively optimized everything from materials and structures to the water circulation system, and launched a series of products including large - scale slides, children's water villages, and various types of slides. Through modular design, we have not only shortened the on - site installation cycle but also significantly reduced the difficulty of post - maintenance. For example, our slides are coated with a double - sided anti - corrosion coating, with a service life extended by more than 30% compared to traditional products. All edges and corners are rounded, and the anti - slip surface ensures the safety of visitors. The company provides one - stop services from planning and design to construction and after - sales, helping customers avoid risks from the source and maximize return on investment.
Working Mechanism and Product Features:

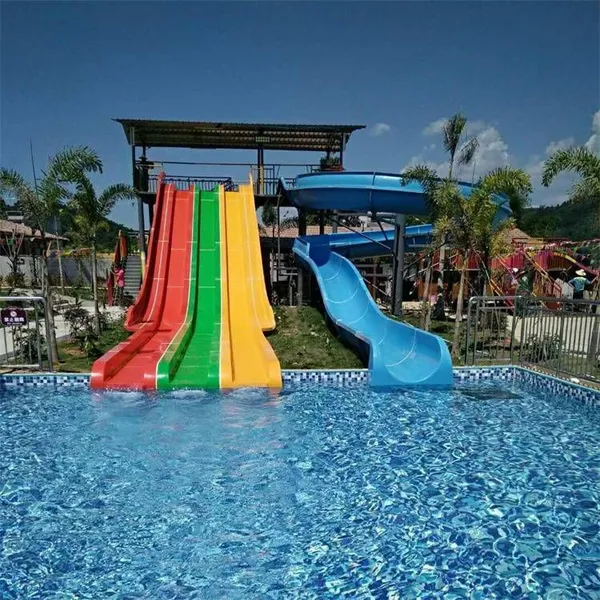

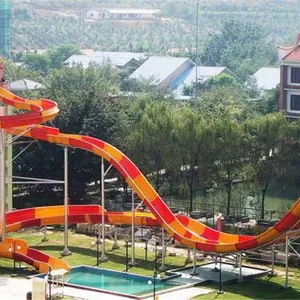

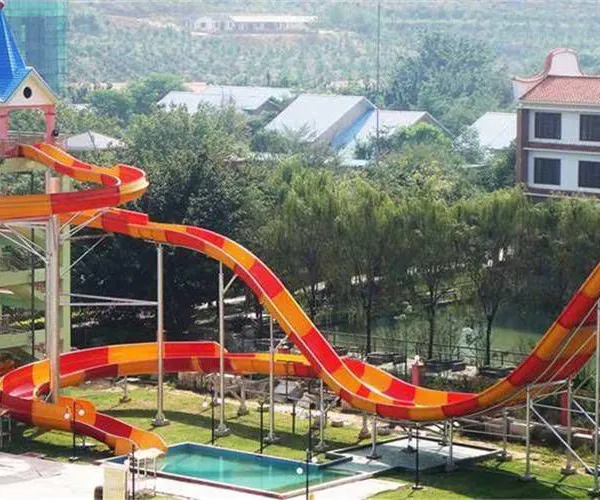

- Large - scale Slides: They adopt a mixed structure of high - strength fiberglass and stainless steel. The inner wall of the slide is mirror - polished to reduce frictional resistance and ensure a smooth slide for visitors. The height of the slides ranges from 2 to 12 meters, and the angle can be customized (35° - 45°) to meet different thrill requirements. An automatic water - spraying system is equipped to keep the slide wet and reduce the risk of blunt injuries.

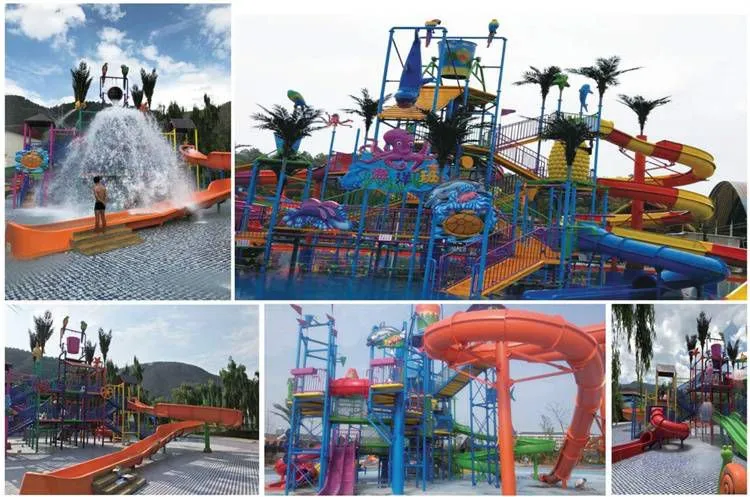

- Children's Water Villages: The overall frame is made of aluminum alloy and food - grade plastic, with no sharp edges. The water village contains multiple entertainment modules such as ladders, buckets, water guns, and slides, and can accommodate 30 - 50 children to play simultaneously. The height of the water village platform is no more than 4 meters, meeting children's safety standards, and non - slip mats are laid on the bottom.
- Slide Systems: They include various types such as enclosed, open, and spiral slides. They are assembled in sections, which is convenient for transportation and installation. The diameter of the slides is usually 0.6 - 1.2 meters, with a wall thickness of ≥5mm, and can withstand a pressure of up to 150kg/m². A patented waterproof sealing ring is used at the joints to prevent water leakage.
| Parameter Items | Large - scale Slides | Children's Water Fortress | Combined Slide |
| Main Material | Fiberglass + Stainless Steel | Aluminum Alloy + Food-grade Plastic | Fiberglass + Polyurethane Coating |
| Maximum Height/Length | 12m / 40m | 4m / 20m² Platform | 8m / 30m |
| Suitable Age | 12 - 60 years old | 3 - 12 years old | 6 - 60 years old |
| Safety Standard | Compliant with GB/T 18168 - 2008 | Compliant with GB 8408 - 2008 | Compliant with EN 1176 - 1:2017 |
| Water Supply Method | Circulating Pump ≥15m³/h | Circulating Pump ≥10m³/h | Circulating Pump ≥20m³/h |
| Installation Period | 15 - 20 days | 10 - 15 days | 20 - 30 days |
Technical Advantages: All large - scale slides are structurally optimized using finite element analysis to ensure no deformation under extreme loads. The water spraying system of the children's water fortress uses a low - voltage (12V) waterproof motor to ensure children's safety. UV stabilizers are added to the slide surface to improve anti - aging performance. In addition, our equipment supports customized colors (such as blue, green, red, etc.) and can be integrated into the park theme.
Trust Endorsement and Company Advantages: Henan Boyue Amusement Equipment Co., Ltd. has provided equipment and services for over 200 water parks and children's water play projects at home and abroad, including several well - known parks with a daily reception capacity of over 5,000 visitors. Our products maintain a good rate of over 95% even after three years of continuous operation, winning high recognition from customers. The company has a professional design team and construction team, providing technical guidance throughout the process from project planning to completion acceptance. We promise that all equipment will undergo a 72 - hour continuous load test before leaving the factory and come with a two - year warranty (excluding consumable parts).
Consultation Advice: If you are planning a water park or upgrading existing equipment, it is recommended that you first clarify the site area, target customer group, and budget range. We can provide 3D renderings and equipment layout plans for free to help you visually evaluate the space utilization. Welcome to contact our engineering consultants for more detailed equipment parameters and quotations. Choosing Henan Boyue means choosing professionalism, reliability, and long - term value.
FAQ:
- Q: What are the requirements for the installation site of large - scale slides? A: The slide foundation needs to be a concrete - hardened ground with a bearing capacity of no less than 300kg/m². A maintenance channel of no less than 2 meters should be reserved around the slide. When the slide height exceeds 10 meters, it is recommended to set up steel pipe support columns. We can provide detailed foundation drawings.
- Q: How to configure the water treatment system for children's water castles? A: It is recommended to equip children's water castles with a circulating filtration system, including sand tanks, water pumps, and ultraviolet disinfectors. The circulation cycle is 4 - 6 hours. We can provide selection suggestions to ensure that the water quality meets the GB 9667 - 1996 standard.
- Q: Is the surface of the slide prone to wear? A: The inner wall of the slide uses a high - wear - resistant gel coat layer with a thickness of ≥0.5mm, combined with UV stabilizers. There will be no obvious wear within 5 years under normal use. Daily maintenance only requires rinsing with clean water. Avoid using cleaners containing abrasive particles.
- Q: How does the equipment cope with extreme weather (such as high temperatures and heavy rain)? A: All fiberglass components can withstand temperatures ranging from - 20°C to 80°C. The stainless - steel parts are made of 304 material and are corrosion - resistant. It is recommended to shut down the equipment during heavy rain. We provide drainage design guidance to prevent water accumulation.
- Q: Do you provide customized design services? A: Yes, we can customize the appearance according to the theme (such as ocean, jungle, cartoon) provided by the customer, including color, shape, and water - spraying layout. The customization cycle is usually 30 - 45 days. Concept drawings or reference pictures are required.
- Q: How long does it take to install the equipment? A: The installation period for large slides and children's water forts is generally 15 - 25 days, which specifically depends on the quantity of equipment and on - site conditions. We provide installation guidance and can dispatch professional engineers to supervise on - site.
- Q: What is the product warranty period? What does the warranty scope include? A: The overall equipment has a 2 - year warranty. During the warranty period, free repair or replacement will be provided for failures caused by material or process problems. Wear - parts (such as seals and nozzles) have a 6 - month warranty. After the warranty period, paid maintenance services will be provided for life.
