Core Pain Points and Solutions in the Industry
Water quality management in swimming pools and hot spring bathing places has always been a core challenge for operators. Traditional filtration equipment often rusts and leaks due to the insufficient corrosion resistance of its materials. Especially in hot spring water, which is rich in corrosive media such as chloride ions and sulfides, the service life of ordinary carbon steel sand filters is extremely short. Frequent replacement not only increases costs but also affects normal business operations. At the same time, traditional filters have low filtration accuracy and poor backwashing efficiency, resulting in turbid water quality and the growth of algae, which threatens the health of swimmers and incurs the risk of penalties from health supervision departments. Henan Boyue Amusement Equipment Co., Ltd. has been deeply involved in the water treatment industry for many years and fully understands these pain points. Relying on its rich experience in swimming pool, hot spring and water park projects, it has developed the Swimming Pool Filter Sand Tank, Hot Spring Bathing, 304 Stainless Steel series of products. This product uses high-quality 304 stainless steel plates, which are precisely welded and anti-corrosion treated to completely solve the corrosion resistance problem. Combined with a unique water flow distribution system and high-precision quartz sand filter media, it can efficiently intercept suspended solids and colloidal particles. With the intelligent backwashing function, it greatly reduces the labor cost of operation and maintenance and ensures the long-term stable compliance of water quality.
Working Mechanism, Product Features and Technical Specifications

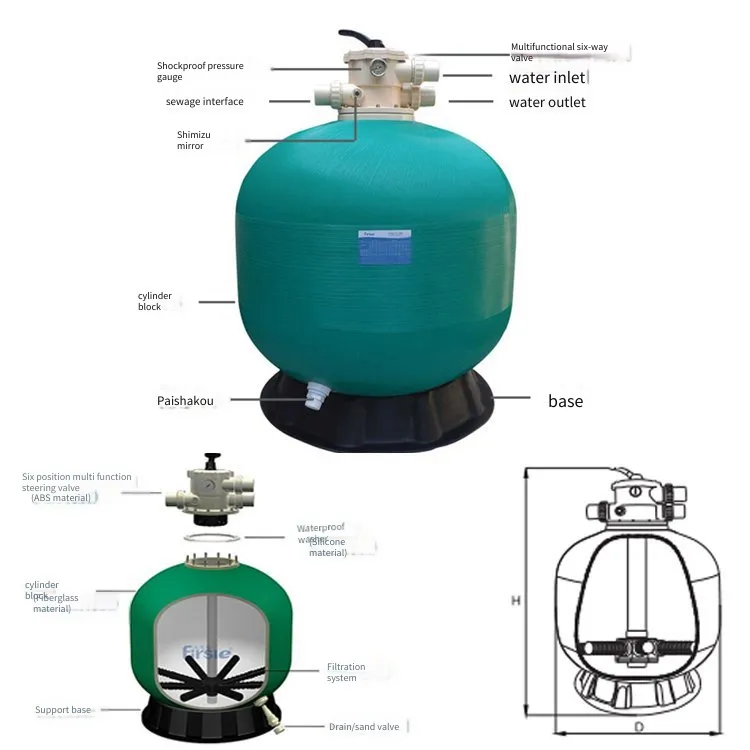

This sand tank is a pressure filter. Its core working principle is as follows: The water to be filtered enters the water distributor at the top of the sand tank through the inlet pipe and is evenly sprayed on the surface of the filter media layer (usually 0.5 - 1.0mm quartz sand). Under the action of gravity and pressure, the water flows through the filter media layer. Impurities such as suspended solids and colloids are trapped in the gaps between the sand grains, while the clean water is collected by the water collector at the bottom and returns to the system through the outlet pipe. As the filtration progresses, the resistance of the filter layer increases. When the differential pressure reaches the set value or the preset time arrives, the backwashing procedure is initiated: The water flows in reverse from the bottom, flushing the filter media layer and allowing the trapped impurities to be discharged with the water flow, thus restoring the filtration capacity.
- Corrosion-resistant Material: The tank body is made of 304 stainless steel with a thickness of ≥ 2.0mm, which is resistant to the corrosion of chloride ions and hydrogen sulfide. It is suitable for harsh water quality environments such as hot springs and seawater swimming pools, with a service life of more than 10 years.
- Large Flow Design: The structure of the water inlet and the water distributor is optimized to reduce water flow resistance. The maximum treatment capacity of a single unit can reach 15m³/h (for the specification with a diameter of 600mm), meeting the filtration needs of small and medium-sized swimming pools.
- Efficient Filtration: Multi-layer quartz sand filter media are used, with a filtration accuracy of 20 - 40μm and the turbidity of the effluent ≤ 1NTU, significantly better than the health standards.
- Convenient Backwashing: Equipped with multi-directional valves, it can manually or automatically switch between states such as fast filtration, backwashing, forward washing, and closing. The backwashing time only takes 3 - 5 minutes, saving water and energy.
- Safe and reliable: The working pressure is 0.35MPa. It has undergone a 1.5 - fold pressure - resistance test before leaving the factory. It is equipped with an automatic exhaust valve and a pressure gauge, ensuring explosion - proof safety.
- Easy to install and maintain: There is a sewage outlet at the bottom and a manhole at the top, facilitating maintenance; The overall structure is compact, with a small floor area, and it can be installed indoors or outdoors.
| Technical parameters | Typical values |
| Tank diameter | 600mm / 800mm / 1000mm |
| Tank height | 800mm / 1000mm / 1200mm |
| Filtration area | 0.28m² / 0.50m² / 0.79m² |
| Maximum working pressure | 0.35MPa |
| Maximum flow rate | 15m³/h / 25m³/h / 40m³/h |
| Filter media filling amount (quartz sand) | 100kg / 180kg / 280kg |
| Inlet and outlet sizes | DN50 / DN65 / DN80 |
| Applicable pH range | 6.5 - 8.5 |
Trust endorsement and company advantages
Henan Boyue Amusement Equipment Co., Ltd. has a professional water treatment engineering team. It has cumulatively participated in the design and construction of over 200 water park, hot spring resort, and swimming pool projects, covering the central, northern, and southern regions of China. The company provides not only equipment but also one - stop services from project planning, scheme design, equipment selection, installation and commissioning to after - sales maintenanceWe are well aware of the differences in water quality conditions, site layouts, and budgets for each project. Therefore, for this sand filter product, we can provide customization in various specifications and match it with circulating water pumps, disinfection systems, automatic dosing devices, etc., to form a complete water treatment solution. In past cases, after a hot spring resort adopted our 304 stainless steel sand filter, the equipment has been operating for 5 years without rust, the water quality has stably met the standards, the backwashing cycle has been extended to 7 days, and the operating cost has been reduced by 30%. We insist on using high-quality raw materials, and each sand filter undergoes strict factory inspections to avoid exaggerated claims. If you are troubled by water quality problems in your swimming pool or hot spring, please provide your specific water volume, water quality type, and site conditions. Our engineers can design a preliminary plan for you for free and provide suggestions on equipment selection to ensure the perfect matching of the equipment and the system.
Frequently Asked Questions (FAQ)
-
Q1: What are the advantages of the 304 stainless steel sand filter compared with ordinary carbon steel sand filters?
A: The 304 stainless steel sand filter has far better corrosion resistance than carbon steel, especially suitable for high-corrosion environments such as hot springs (containing chlorine and sulfur) and seawater swimming pools. The interior of the carbon steel sand filter needs to be coated with an anti-corrosion coating, but the coating is easy to fall off, leading to rusting. In contrast, the 304 stainless steel has overall corrosion resistance, with a service life of over 10 years and no need for frequent maintenance. -
Q2: What is the filtration accuracy of the sand filter? Do I need to replace the quartz sand regularly?
A: Under the standard configuration, the filtration accuracy is 20 - 40μm, and the turbidity of the effluent is ≤1NTU. It is recommended to replace the quartz sand filter material every 2 - 3 years. However, if the backwashing is thorough and the water quality is good, it can be extended to 5 years. When replacing, pay attention to using quartz sand of the same specification to avoid mixing in fine powder. -
Q3: How to operate during backwashing? Do I need to stop the water supply system?
A: Backwashing can be switched through a multi-way valve (six-way valve or three-way valve). Generally, turn off the water pump in the filtration state, turn the valve to the backwashing position, and then turn on the water pump. During backwashing, the water flow direction is reversed and continues for 3 - 5 minutes until the effluent is clear. It is recommended to reserve a bypass in the system design to avoid the impact of backwashing on other equipment. -
Q4: Can this sand filter be used for the circulating water treatment of hot spring bathing? Will the special water quality of hot springs cause blockage?
A: Absolutely. The 304 stainless steel material is heat-resistant and corrosion-resistant, suitable for the water quality of hot springs. However, if the hot spring water contains a large amount of mineral precipitates or suspended solids, it is recommended to add a sedimentation tank or a hair collector at the front end to prevent large particles from blocking the water distributor. We can provide a customized filter material solution according to your hot spring water quality, such as using a double-layer filter material of anthracite and quartz sand. -
Q5: What points should be noted during the installation of the sand filter?
A: The installation foundation needs to be flat and have sufficient load-bearing capacity (the sand filter is heavy when fully loaded). Sealing gaskets should be used for the connection of the inlet and outlet pipes and ensure they are tightly fastened. The sand filter should be installed in a well-ventilated area without direct sunlight to avoid overheating; space should be reserved at the top for access to the manhole for maintenance. When using it for the first time, fill the filter media according to the instruction manual and slowly inject water to avoid damaging the water distributor due to impact. -
Q6: What is the working pressure of this sand filter? What safety measures are there?
A: The maximum working pressure is 0.35MPa. All products have passed a 1.5-fold (0.525MPa) hydrostatic test before leaving the factory. It is standardly equipped with a safety valve (relief pressure 0.4MPa), a pressure gauge, and an automatic air vent valve. It is recommended to regularly check the pressure gauge reading. If it exceeds 0.3MPa, backwashing is required to avoid overpressure operation. -
Q7: How long is the warranty period of the equipment? What about the after-sales service?
A: We provide a one-year warranty for the whole machine (starting from the date of leaving the factory). During the warranty period, non-human damage will be repaired or replaced for free. The company is equipped with a professional after-sales team, which will respond within 48 hours after receiving a repair request and provide remote guidance or on-site service. At the same time, we provide lifetime technical support, including guidance on filter media replacement, valve maintenance, etc. -

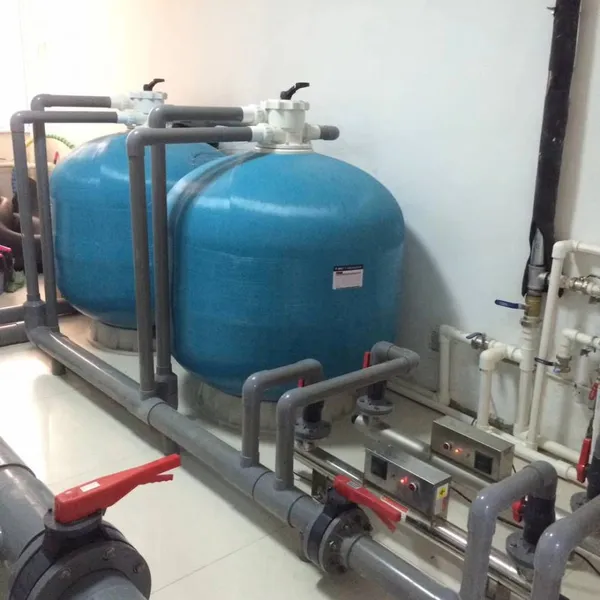

Q8: If my swimming pool has a large water volume, do I need to connect multiple sand filters in parallel?
A: Yes. The treatment capacity of a single sand filter is limited. For large swimming pools or hot spring water parks, multiple sand filters are usually operated in parallel, with each equipped with an independent valve for flexible adjustment. We can design a parallel system for you to ensure balanced flow and reserve spare equipment to guarantee maintenance without shutting down the system.
