In today's highly competitive water park industry, investors and operators generally face several major core pain points: the safety of traditional slide equipment varies, the maintenance cost remains high, the single tourist experience leads to a low return rate, and the cycle from project planning to implementation is too long, lacking a professional team to integrate resources. Many small and medium-sized water parks have problems such as aging equipment and unreasonable design, which not only affect the tourists' word-of-mouth but also bring potential safety hazards and legal risks. Henan Boyue Amusement Equipment Co., Ltd. has deeply insight into these industry problems. Relying on more than ten years of experience in water park equipment R & D and engineering, it has launched a series of large-scale slides and water chutes products, aiming to solve the above pain points through systematic technical improvements. The company was established in Henan and has provided one-stop services from planning, design to production, construction, and after-sales for hundreds of water parks, parks, and resorts at home and abroad. We have abandoned the single structural design of traditional slides and adopted a modular customization plan, combined with the optimization of fluid mechanics and the application of anti-corrosion materials to ensure that each set of slides meets the high industry standards in terms of safety, fun, and durability. By introducing an intelligent water circulation system and a safety monitoring interface, we help customers reduce operating energy consumption by more than 40%, and at the same time increase the tourist carrying capacity and satisfaction, truly achieving a balance between investment and return.

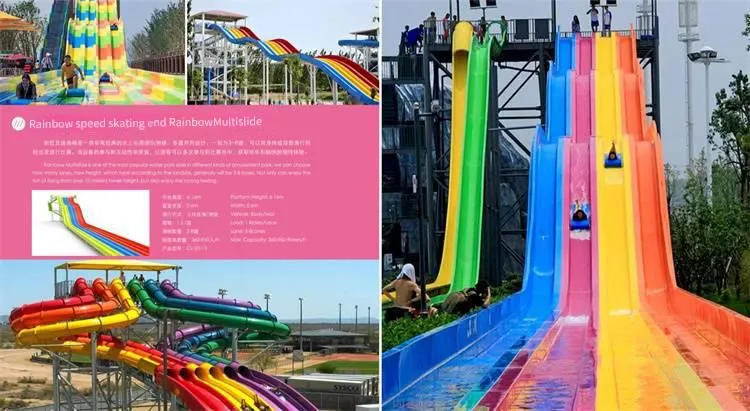

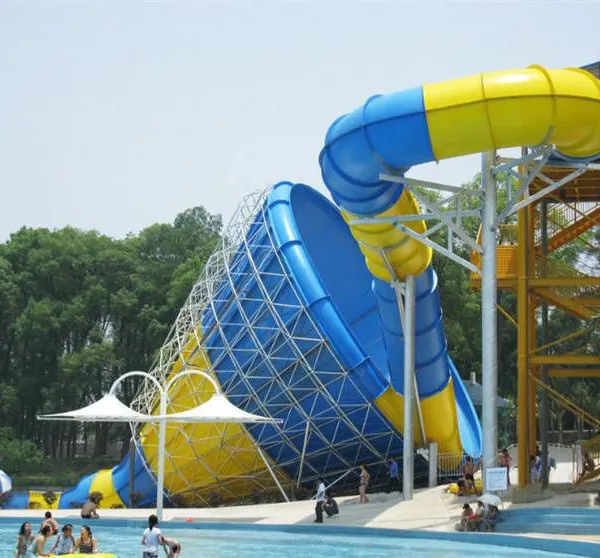

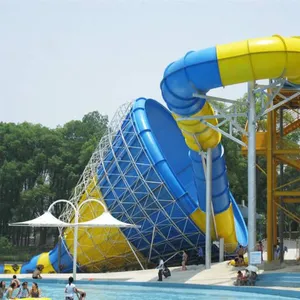

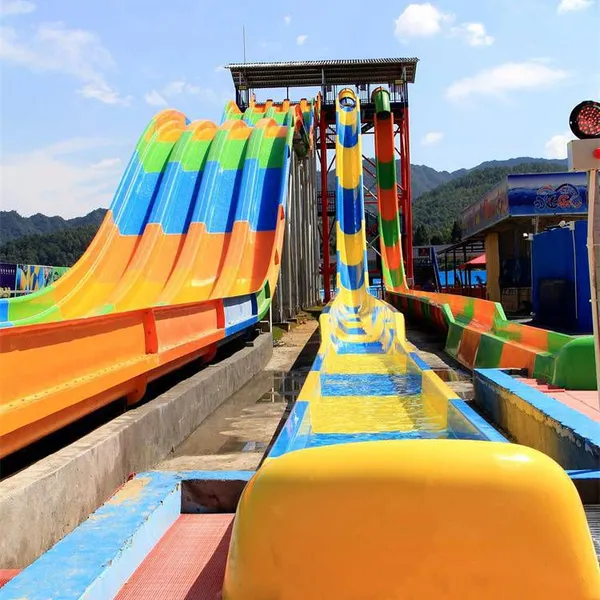

This series of large-scale slide products includes various types such as open slides, closed spiral slides, combination slides, and children's water play chutes, which can be widely used in water parks, urban parks, community playgrounds, resorts and other places. Its core working mechanism is based on gravitational potential energy or water flow boost: after tourists are in place on the starting platform, they slide down along the chute by their own body weight or the thrust of the water flow. The inner wall of the chute is designed with a fine water flow lubrication layer to reduce friction and enhance the sense of speed. At the same time, large-radius curves and buffer water tanks are used at the turning points of the chute to ensure a smooth and stable sliding process. A deceleration pool or a soft landing area is set at the end to prevent impact injuries. Our independently developed chute interface technology can seamlessly connect chute sections of different heights and arcs to achieve customized combinations, and even integrate theme decorations (such as tunnel, lighting, and music elements) to create an immersive experience.
Product Features and Advantages:
- Safety First: All slides optimize the structural strength through finite element analysis, use high-strength fiberglass reinforced plastic (FRP) for integral molding, and the surface is coated with a non-slip coating. The height of handrails and guardrails complies with international and domestic safety standards such as EN 1069 and GB 8408 (specific standards need to be customized according to the customer's project). Each chute entrance is equipped with a safety warning sign and an operating water level scale, which can be adapted to different weight ranges of children and adults.
- Durable and Weather - Resistant: Fiberglass slides have excellent performance in UV resistance, corrosion resistance, and resistance to high and low temperatures, with a service life of more than 15 years. The key connecting parts are made of 304 stainless steel to avoid rusting; the water circulation pipes are made of UPVC material, which is pressure-resistant and has low resistance.
- Modular Design: The slides are produced in standard segments with lengths of 1.5m/2m/3m. The arc radius can be customized. On-site splicing is quick, reducing the construction period by more than 30%. It supports later expansion or replacement of some slideways, reducing the upgrade cost.
- Energy-saving and Environmental Protection: It is equipped with a high-efficiency water treatment system (optional, not a standard configuration). The utilization rate of recycled water reaches 95%, reducing water resource waste. The surface of the slide uses low-VOC resin, which is environmentally friendly and odorless.
- Immersive Experience: It can integrate LED light strips, audio systems, and water curtain special effects. Combined with theme packaging (such as animal shapes, castle shapes), it enhances the attractiveness of the amusement park.
Technical Specification Parameter Table (Some typical models, customizable):
| Parameter Items | Specification Range/Description |
| Slide Type | Open, Closed, Spiral, Combined, Children's Slide |
| Material | High-strength Fiberglass Reinforced Plastic (FRP), thickness ≥5mm |
| Slide Height | 3m / 5m / 8m / 12m / 15m (customizable) |
| Slide Length | 10m~50m (customizable as required) |
| Slideway Width | 0.6m~1.2m (Single/Double/Multiple Persons) |
| Suitable Age | Children's Slide: 3~12 years old; Adult Slide: Over 12 years old |
| Maximum Load | Single-person Slide ≤150kg; Double-person Slide ≤200kg |
| Sliding Speed | 5~12m/s (depending on height and slope) |
| Water lubrication volume | 5~10L/min (per slide) |
| Installation foundation | Reinforced concrete platform (to be arranged by the customer) or steel structure support (optional) |
| Ambient temperature | -10℃~45℃ |
In practical applications, the construction process of large - scale slides includes: on - site survey, structural design, foundation construction, slide installation, water circulation system connection, safety testing, and trial operation. We provide full - process technical guidance to ensure that each link complies with the drawings and industry specifications. In addition, we also offer an optional intelligent monitoring solution, which can monitor the water flow in the slide, the number of passengers, and the equipment status in real - time. It can issue early warnings through the mobile APP or the control room to effectively prevent overloading and malfunctions.
Henan Boyue Amusement Equipment Co., Ltd. has a modern production base of over 2000 square meters, equipped with precision processing equipment such as five - axis CNC engraving machines and vacuum infusion equipment. The annual production capacity reaches 300 sets of large - scale slides. Our engineering team has full - chain experience from site selection to operation and has successfully delivered projects including the water park of a 5A - level scenic spot, the theme park of a provincial capital city, and the children's play areas of multiple communities. For example, in a large - scale water park project, we completed the entire process from design to installation of 6 large - scale slides in only 45 days, which is 30% shorter than the industry average construction period. The number of tourists in the first month of the customer's operation exceeded 100,000, and the equipment failure rate was less than 0.5%. These data fully prove the quality of our products and the project execution ability.
We not only provide equipment but also value - added services: free project investment return analysis, customized design solutions, a five - year warranty period (for core structural components), and a 24 - hour emergency response hotline. We recommend that when selecting a manufacturer, you should give priority to investigating its design certification ability, material quality certification, and the reputation of past cases. Henan Boyue Amusement Equipment Co., Ltd. always adheres to the concept of "centering on customer needs and taking safety and quality as the life". We are willing to communicate with you in depth about the project details and provide you with free one - to - one project planning. If you have any questions or need more detailed parameter quotations, please contact our professional consultants at any time. We will provide you with professional advice rather than simple sales pitches.
FAQ (Professional answers to common questions):
-
Q: Is the material of the large - scale slide environmentally friendly? Will it release harmful odors at high temperatures?
A: We use high - quality unsaturated polyester resin and glass fiber. The resin does not contain harmful plasticizers such as phthalates and complies with the GB/T 15568 - 2015 environmental protection standard. Under the summer sun, the surface temperature can reach 60℃, but it will not release pungent odors or harmful volatiles. You can use it with confidence. -
Q: How long does the installation period of the slide usually take? Will it affect the normal operation of the amusement park?
A: The installation period depends on the complexity of the slide and on - site conditions. Generally, for a single large - scale slide, it takes about 5 - 10 working days from the completion of the foundation acceptance to the completion of installation and debugging. We adopt modular splicing, minimize on - site wet work as much as possible, and can carry out construction at night or in the off - season to minimize the impact on operations. -
Q: Does the water circulation system of the slide need to be additionally configured? What are the requirements for water quality?
A: The slide itself requires water lubrication for its functions, but the water circulation system is an optional accessory. We can provide an integrated water circulation pumping station, including functions such as filtration, disinfection, and constant temperature. The water quality should meet the "Hygienic Standard for Swimming Places" (GB 9667 - 1996). It is recommended that the turbidity of the circulating water is ≤5NTU, and the pH value is between 6.5 - 8.5 to ensure the sliding experience and the service life of the equipment. -
Q: What are the differences in the design of children's slides and adult slides? How to ensure the safety of different age groups?
A: The height of children's slides is usually no more than 3 meters. The slide slopes are gentler, the width is narrower (0.6 - 0.8 meters), and the inner walls are equipped with anti - slip textures and handrails. The height of adult slides can reach 15 meters. The slides are wider, the slopes are steeper, and there is a longer deceleration pool at the end. There are height limit signs at the entrances of all slides, and the staff will guide tourists to use the slides in a standardized way. -
Q: What is the service life of the slide? What work is required for daily maintenance?
A: Under normal use and regular maintenance, the service life of the main body of the fiberglass slide can reach more than 15 years. Daily maintenance includes: checking the slide surface for cracks and burrs every day; cleaning the debris inside the slide every week; checking the fasteners and water lubrication nozzles every month; and performing anti - rust treatment on the steel structure every quarter. We provide detailed maintenance manuals and training. -
Q: Do you support customized theme shapes? For example, making the slide in the shape of a dinosaur or a castle?
A: Absolutely. We have a professional theme packaging team. We can combine the customer's IP requirements and use fiberglass or cement sculpture technology to wrap the slide entrance, platform, and some slide sections into shapes such as dinosaurs, pirate ships, castles, and cartoon animals. The customization period usually needs an additional 15 - 30 days, depending on the complexity. -
Q: Does the slide need special protection in extreme weather (such as heavy rain or snow)?
A: The fiberglass material itself has good weather resistance. However, it is recommended to cover and protect the slide during the non - operation season (such as winter) to avoid structural overload caused by long - term snow accumulation. If there are tornadoes or typhoons in the local area, the slide sections can be designed to be detachable, or pre - embedded anchor bolts can be used to enhance stability. We will provide reinforcement solutions according to the local climate during the design stage. -
Q: Can your company provide insurance and third-party inspection reports for amusement equipment?
A: We can cooperate with customers to apply for inspection from the local special equipment inspection agency and provide product certificates of conformity and material inspection reports. For large-scale amusement facilities, we recommend that customers purchase equipment-related insurance, and we can assist in recommending cooperative insurance companies. Note: The specific inspection requirements depend on local regulations. It is recommended to consult in advance.
