Hengshui City Yike Composite Materials Co., Ltd. (established in 2009) is a dedicated manufacturer of high-quality FRP/GRP products. Our FRP/GRP Corrosion Resistant Chemical Liquid Storage Tank is engineered to meet the demanding needs of chemical, water, and industrial applications. With annual export value of US$1.5–2.5 million, we serve markets across North America, South America, Europe, Asia, Africa, and Oceania. This tank combines advanced composite technology with proven corrosion resistance, offering a lightweight yet durable solution for storing acids, alkalis, solvents, and other aggressive liquids. Trust our expertise to deliver a tank that not only protects your valuable liquids but also ensures long-term operational safety and cost-efficiency.
Key Features & Technical Specifications
Our FRP/GRP tanks are manufactured using advanced filament winding or hand lay-up processes, ensuring consistent wall thickness and superior mechanical properties. The resin system is carefully selected based on the stored chemical (e.g., vinyl ester, epoxy, or polyester) to provide maximum resistance against corrosion. Key features include:
Corrosion Resistance: Excellent performance against a wide range of chemicals, including acids (HCl, H2SO4), alkalis (NaOH), and organic solvents.
Lightweight & High Strength: Weight is only 1/4 to 1/5 of steel tanks, reducing foundation requirements and installation costs.
Customizable Design: Available in vertical, horizontal, or custom configurations; capacities from 1m³ to 200m³ and beyond.
UV & Weather Resistance: Outer layer contains UV stabilizers for outdoor use; optional gel coat for extended durability.
Low Maintenance: Smooth surface prevents scaling and biofouling; no need for protective coatings.
Safe & Reliable: Double-walled or single-walled options; manholes, nozzles, and fittings can be integrated per customer drawings.
| Parameter | Value / Range |
|---|---|
| Nominal Capacity | 1 m³ – 200 m³ (customizable) |
| Design Pressure | Atmospheric to 0.5 MPa (higher on request) |
| Design Temperature | -40°C to +120°C |
| Wall Thickness | 4 mm – 30 mm (depending on diameter and load) |
| Resin System | Polyester, Vinyl Ester, Epoxy (as per chemical) |
| Fittings | Manholes, nozzles, flanges, vents, level gauges |
| Color | Customizable (RAL or standard colors) |
Application Benefits for Your Industry
Whether you are storing hydrochloric acid in a chemical plant, sodium hypochlorite in a water treatment facility, or process water in a manufacturing site, our FRP/GRP tank offers distinct advantages:
Chemical Industry: Withstands aggressive media, reduces risk of leaks and environmental hazards.
Water & Wastewater: Non-corrosive, no metallic contamination; ideal for potable water storage (with FDA-compliant resin).
Industrial Solutions: Low operating cost due to minimal maintenance and long service life (20+ years typical).
Pharmaceutical & Food: Smooth surface meets hygiene standards; easy to clean and inspect.
Why Choose Hengshui Yike Composite Materials?

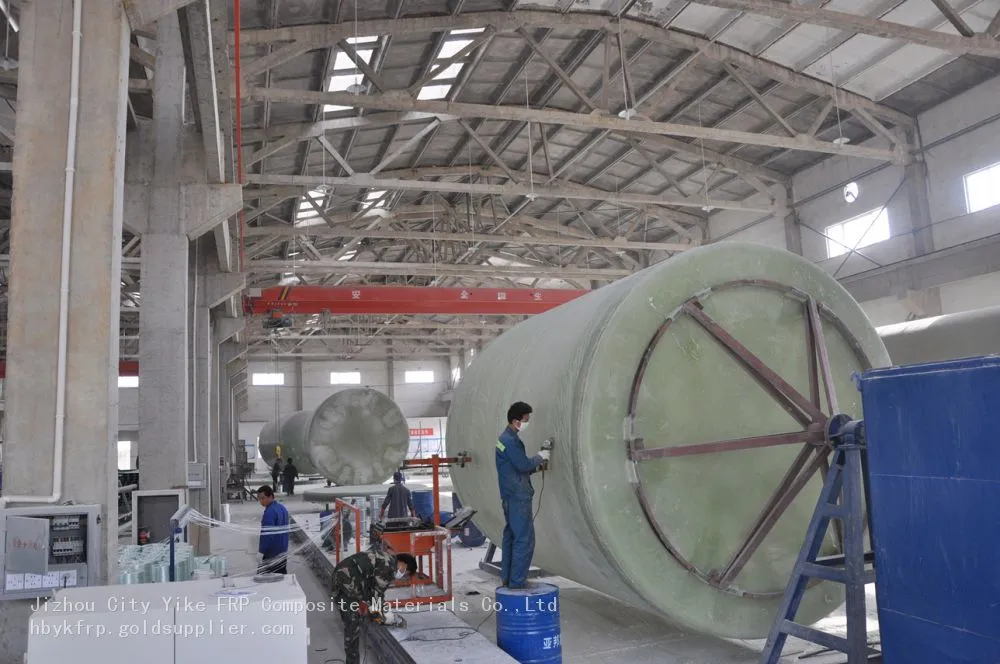

With over 15 years of manufacturing experience, we have delivered thousands of FRP tanks to clients worldwide. Our factory in Hengshui, Hebei (China) is equipped with modern filament winding machines and quality control testing equipment. We export to all major regions including North America, Europe, Southeast Asia, and Africa, with annual export value between US$1.5 and US$2.5 million. Each tank is tested for water tightness, pressure resistance, and chemical compatibility before shipment. We offer flexible customization: from simple storage to complex multi-compartment vessels. Our team provides technical support throughout the project, from design to installation guidance.
Contact us today for a quotation or engineering consultation. Let us help you find the ideal corrosion-resistant storage solution for your specific liquids.
Frequently Asked Questions (FAQ)
Q: What is the typical lifespan of an FRP/GRP chemical storage tank?
A: With proper design and resin selection, our tanks can last 20–30 years or more in normal service conditions. The actual lifespan depends on the chemical environment, temperature, and maintenance practices.Q: Can these tanks be used for storing high-purity chemicals or food-grade liquids?
A: Yes. We can use FDA-approved resin systems (e.g., certain epoxy or vinyl ester) and ensure a smooth interior surface to prevent contamination. Please specify your requirements during inquiry.Q: What certificates or standards do your tanks comply with?
A: Our tanks are designed and manufactured in accordance with internationally recognized standards such as ASTM D3299 and BS 4994. Certificates of compliance are available upon request. We can also conduct third-party inspections if needed.Q: How do I choose the right resin for my chemical?
A: Our technical team will review your chemical data sheet (concentration, temperature, specific gravity) and recommend the most suitable resin (polyester, vinyl ester, or epoxy). For aggressive chemicals, vinyl ester is often preferred.Q: What is the maximum size (capacity) you can manufacture?
A: We can produce tanks up to 200 m³ as standard options. Larger sizes (e.g., 500 m³) are possible with field assembly or sectional tank design. Contact us for feasibility.Q: Do you offer installation services or on-site support?
A: While we typically ship tanks ready for installation, we can provide detailed installation manuals and, for large projects, arrange for a technician to supervise the installation. Please discuss your needs during ordering.Q: What is the lead time for a custom FRP tank?
A: Lead time depends on complexity and size. Standard tanks usually take 20–45 days after design approval. Custom designs may require 30–60 days. We always strive to meet your project schedule.Q: What ports do you ship from, and what are your shipping options?
A: We ship from Tianjin port, Shanghai port, or other major Chinese ports. Tanks can be shipped as FCL (full container load) or break-bulk for oversized tanks. We can also arrange sea freight and inland transport.
