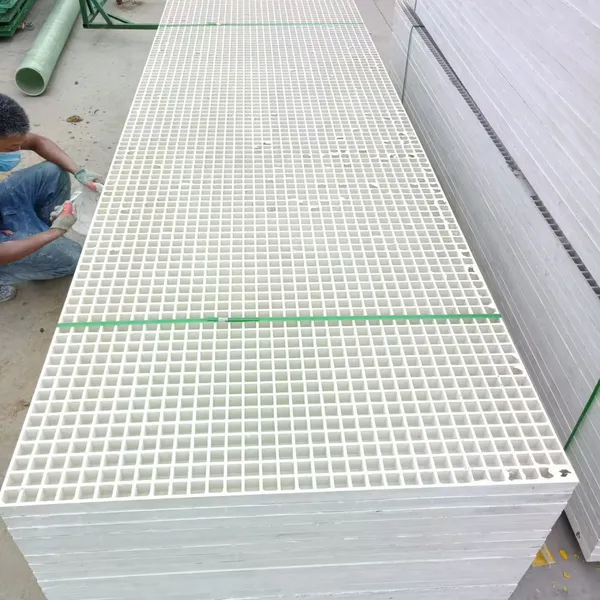

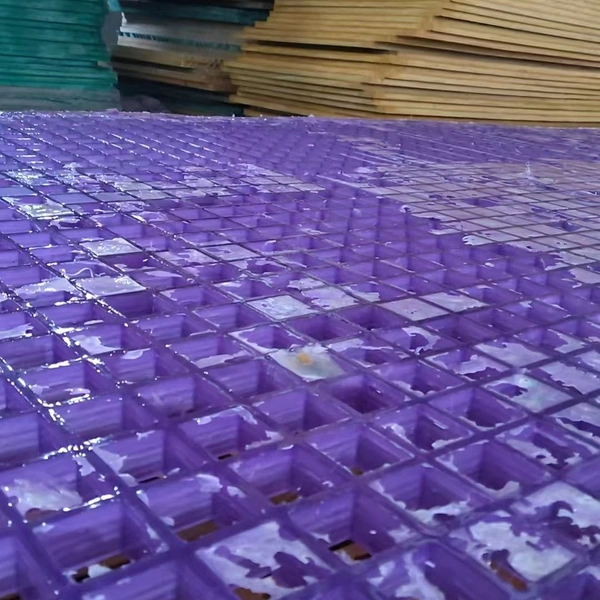

As a leading manufacturer from Hengshui Ruibin New Materials LLC (established in 2019, with a factory area of 1,000–3,000 square meters and an annual export value of US$2.5–5 million), we bring you our Chemical Proof FRP Grating for Effluent Channel Cover. Engineered to withstand the most aggressive chemical environments, this corrosion-resistant industrial grating is your reliable solution for covering effluent channels, drainage trenches, and chemical processing areas. Our product combines superior mechanical strength with exceptional resistance to acids, alkalis, and solvents, ensuring long service life even under continuous exposure to harsh chemicals.
Manufactured using high-quality fiberglass reinforced plastic (FRP) and premium resin systems, our grating offers a non-conductive, non-sparking, and lightweight alternative to steel or aluminum gratings. It is designed to meet the demanding requirements of industrial wastewater treatment plants, chemical factories, refineries, and marine applications. With over 100 skilled employees and ISO9001:2015/ISO9000 certified quality management, we guarantee consistent product performance and dimensional accuracy.
Key Features & Technical Specifications
| Feature | Specification/Detail |
|---|---|
| Material | Fiberglass Reinforced Plastic (FRP) with 30–50% glass fiber content |
| Resin Options | Isophthalic polyester (standard), vinyl ester (high chemical resistance), phenolic (fire retardant) |
| Standard Panel Size | 1220 x 3660 mm (4' x 12') – other sizes available upon request |
| Thickness Options | 25 mm, 38 mm, 50 mm – custom thickness possible |
| Load Capacity | Up to 1000 kg/m² (heavy duty) – confirm with design |
| Surface Type | Concave anti-slip, grit-top, or smooth finish |
| Color | Yellow, green, gray, or customized per RAL/color chart |
| Operating Temperature | -40°C to +120°C (depending on resin type) |
| Fire Rating | Optional: phenolic resin achieves Class B/Class 1 flame spread |
| Certifications | ISO9001:2015, ISO9000 – manufacturing quality assured |
Detailed Advantages & Customer Benefits
- Superior Chemical Resistance: Our FRP grating is formulated with vinyl ester or isophthalic polyester resin to resist attack from a wide range of chemicals including sulfuric acid, hydrochloric acid, sodium hydroxide, and organic solvents. This makes it ideal for effluent channel covers in chemical plants, electroplating facilities, and wastewater treatment units.
- Lightweight yet Strong: Weighing only about 1/4 of steel, our grating is easy to handle, cut, and install, reducing labor costs and installation time. Despite its light weight, it offers high strength-to-weight ratio and can support heavy pedestrian or light vehicular loads.
- Anti-Slip Safety: The standard concave surface provides excellent slip resistance even when wet or oily. Additional grit-top coating is available for extra traction in high-risk areas, enhancing worker safety.
- Non-Conductive & Non-Sparking: Being an electrical insulator, our FRP grating is safe for use in electrical substations, battery rooms, and other areas where electrical hazards exist. It also does not produce sparks when struck, making it suitable for flammable environments.
- Long Service Life & Low Maintenance: Unlike steel, FRP does not rust, rot, or corrode. It is UV-resistant (with added UV stabilizer) and can withstand outdoor exposure for decades without painting or coating, saving on maintenance costs.
- Customizable Dimensions & Configurations: We offer custom panel sizes, cut-outs, and shapes to fit your specific channel dimensions. Whether you need a standard 1220x3660mm panel or a custom shape, we can produce it with precision.
- Environmentally Friendly: FRP is a sustainable material with long life, reducing replacement frequency. Production waste is recyclable, and the product itself is inert after disposal.
Trust & Reliability from Hengshui Ruibin New Materials LLC
As a manufacturer with over 5 years of experience, we have shipped our products to more than 10 countries including North America, Europe, Southeast Asia, and the Middle East. Our annual export value of US$2.5–5 million demonstrates our commitment to global quality standards. We are ISO9001:2015 and ISO9000 certified, ensuring that every batch of grating undergoes strict quality control from raw material inspection to final packaging. Our factory, located in Hengshui, Hebei, China, is equipped with advanced pultrusion and compression molding lines, capable of producing large quantities with consistent quality. We also offer free sample testing and technical support to help you select the right resin and thickness for your specific effluent conditions.
Choose our Chemical Proof FRP Grating for your effluent channel cover needs and benefit from a product that combines durability, safety, and cost-effectiveness. Contact us today for a quote or to discuss your customized requirements. We provide fast shipment from the ports of Tianjin and Qingdao, with flexible payment terms.
Frequently Asked Questions (FAQ)
-
Q: What chemicals can your FRP grating resist?
A: Our standard isophthalic polyester resin resists most acids, alkalis, and salts. For highly aggressive chemicals like strong sulfuric acid or chlorine, we recommend vinyl ester resin. Please provide your chemical list for a compatibility assessment. -
Q: Can the grating be cut to size on-site?
A: Yes, FRP grating can be cut, drilled, and shaped using standard carbide-tipped tools. We also offer pre-cut panels to your exact dimensions to save installation time. -
Q: What is the maximum span for heavy duty loading?
A: The maximum unsupported span depends on thickness and load requirements. For 38mm thick grating, typical safe span for pedestrian load is up to 600mm; for 50mm, up to 800mm. Contact our engineering team for a specific load-span calculation. -
Q: Is your grating UV resistant?
A: Yes, we add UV stabilizers to the resin for outdoor applications. The color may fade slightly over time, but mechanical properties are not affected. -
Q: Do you offer fire-retardant grades?
A: Yes, we can produce grating with phenolic resin which meets Class B fire rating (BS 476-7). It is suitable for environments where fire safety is critical. -
Q: What is the lead time for an order?
A: For standard sizes, lead time is 10–15 working days. Custom orders may take 15–25 working days depending on quantity and complexity. We ship from Tianjin or Qingdao port. -
Q: Can I get a sample before placing a bulk order?
A: Absolutely. We provide free samples (A4 size) for testing. You only pay for shipping. Contact us to request a sample. -
Q: How do I clean the grating?
A: Simply rinse with water or use a mild detergent. Avoid abrasive cleaners that may damage the surface. For heavy chemical spills, flush immediately with water.
